STEP 6
Install Wood Support
• Locate at least two vertical studs at the wood mounting location by tapping drywall or by using a stud finder.
• Position the supplied wood support 3" (76 mm) below the cabinet and drill 1/8" (3.175 mm) pilot holes through the
support, drywall and into the studs.
• Secure the wood support to two or more vertical studs with wood screws (not provided).
• Use threaded drywall anchors when mounting the hood onto sheet rock. Mounting the hood into wall studs or lumbars
is highly recommended.
STEP 7
Install Range Hood Mounting Screws

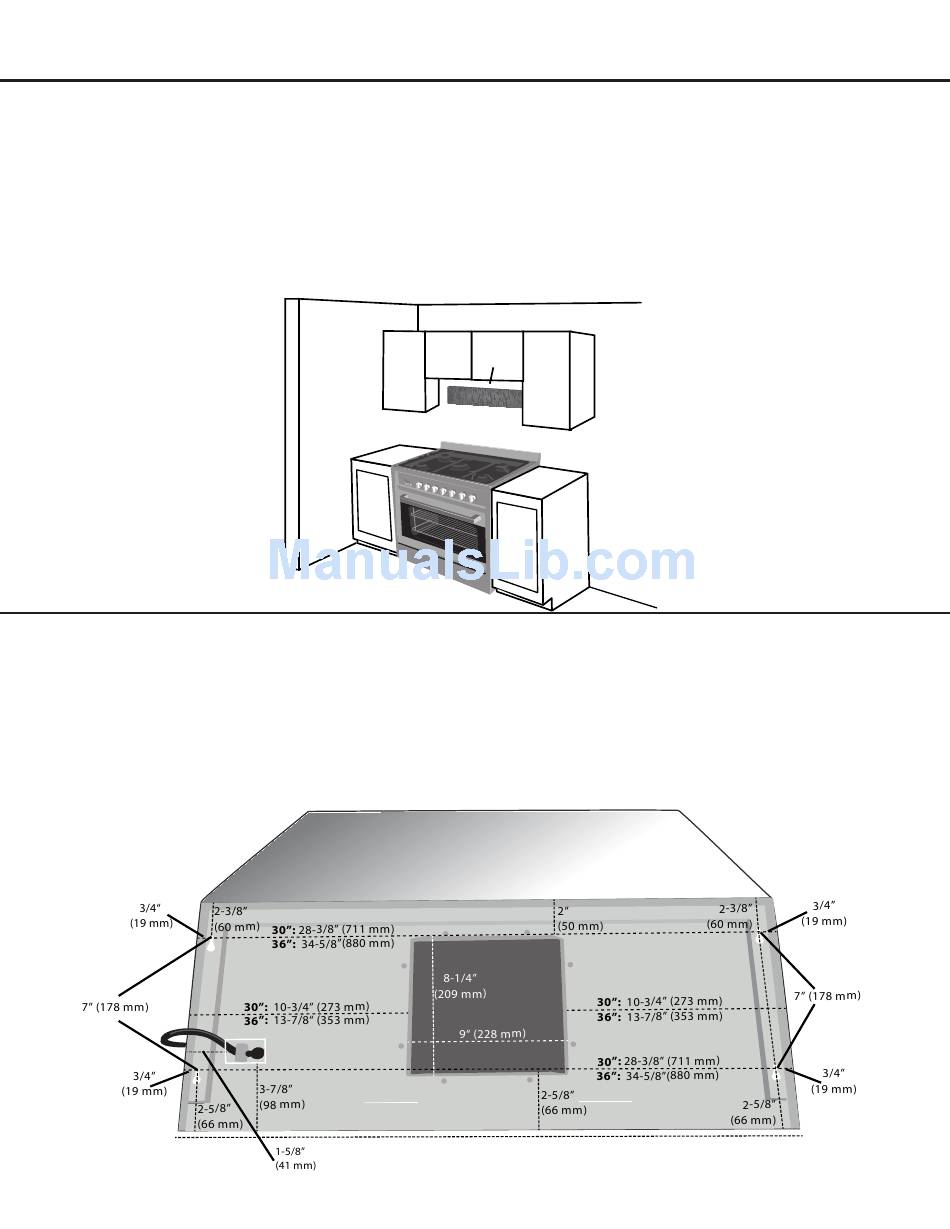

• Mark the screw holes onto the bottom of the upper kitchen cabinet using the dimensions shown below.
• Cut the holes for the power cord and the damper hole.
• Install the range hood mounting screws (not provided), leaving the screws protruding a 1/4" (6.3 mm) to allow clearance
for mounting the range hood.
Installation
3"
(76 mm)
30": 29-7/8" (757 mm)
36": 35-7/8" (910 mm)
— 10 —
