Ancona UCA630 User's Manual & Installation Instructions

Ancona UCA630 User's Manual & Installation Instructions

Led lights electronic controls

Advertisement

Quick Links

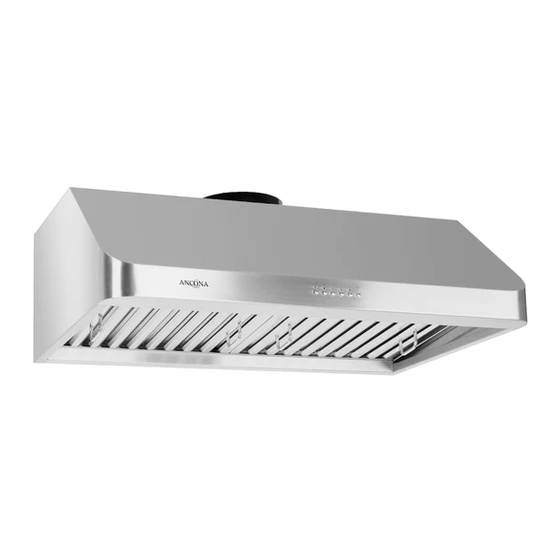

Range Hood UCA630
& UCA636 30 & 36
Electronic
Controls
User Manual
&
Installation Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UCA630 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ancona UCA630

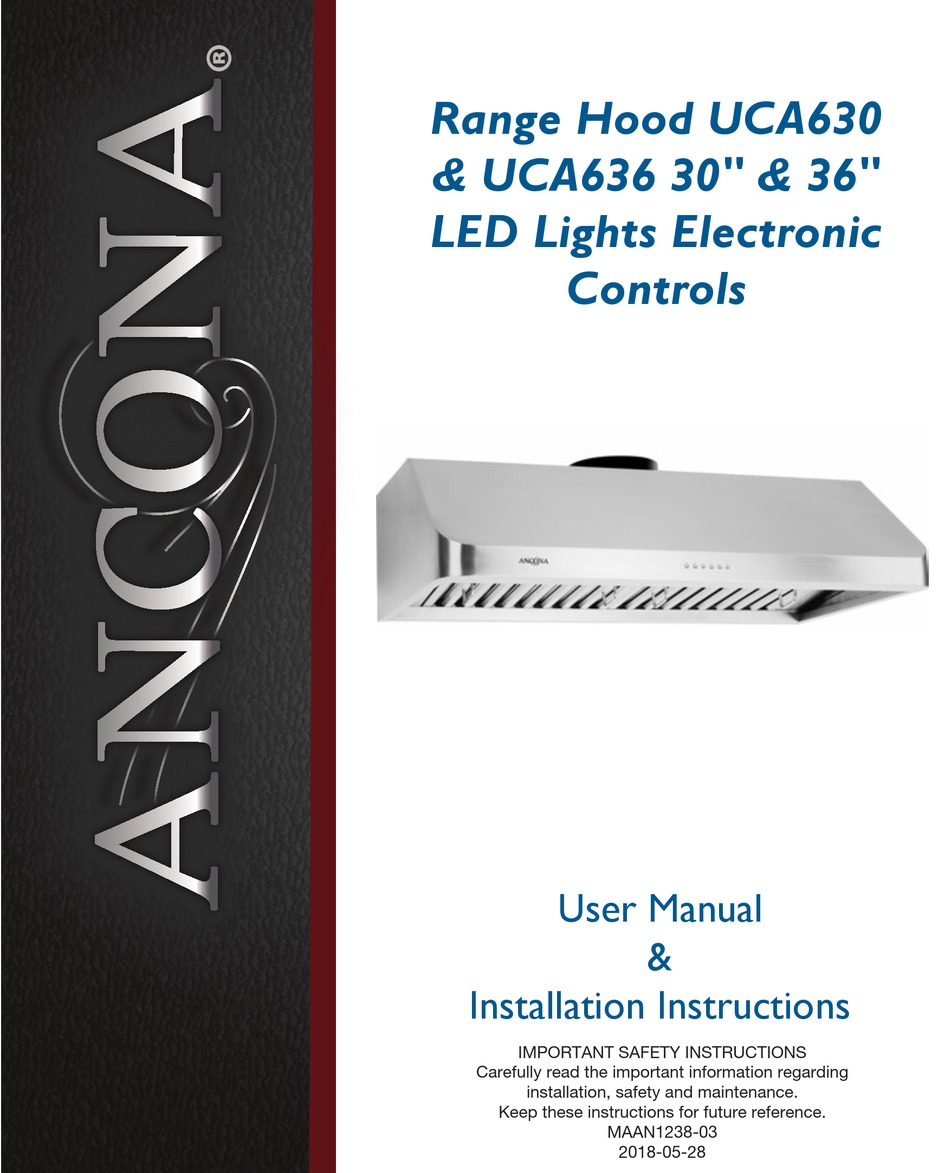

  • Page 1 Range Hood UCA630 & UCA636 30 & 36 Electronic Controls User Manual & Installation Instructions...
  • Page 2 • The installation in this manual is intended for qualified installers, service technicians or persons with similar qualified background. Installation and electrical wiring must be done by qualified professionals and in accordance with all applicable codes and standards, including fire-rated construction. •...
  • Page 3 • Clean ventilating fan frequently. • Always use appropriate cookware and utensils size. • Always use cookware appropriate for the size of the surface element. To reduce the risk of injury to persons in the event of a stove top grease fire: •...
  • Page 4: Tools Needed

    Tools Needed : Measuring Marker or tape Utility knife pencil Level Flat-blade Powered and Phillips screwdriver screwdrivers or drill...
  • Page 5: Parts Supplied

    Parts Supplied : Under Cabinet Range Hood ange Hood a e i ter acer a e i ter 4 F lter handles Qty: 6 + 1 PCS Qty: 8 + 1 PCS Hood mounting Handle screws bracket Hood-mounting Bracket rease t nnel...
  • Page 6 For the most efficient & quiet operation: • Vent system must terminate to the outside • A distance of 24” to 30” is recommended (roof or side wall). between stove top and the bottom of range • DO NOT terminate the vent system in an hood.
  • Page 7: Calculating Vent System Length

    IMPORTANT: A minimum of 7” round (standard for this range hood) or 3-1/4 x 10” rectangular duct (purchased separately) e icienc . must be used to maintain maximum air ow ef cien Always use rigid type metal/aluminum ducts if available to maximize air ow when connecting to provided duct.
  • Page 8: Venting Methods

    Venting Methods : This range hood is factory set for venting through the roof or wall. Vent work can terminate either through the roof or wall. To vent through a wall, a 90° elbow is needed. IMPORTANT: NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages.
  • Page 9: Electrical Requirements

    Electrical Requirements : IMPORTANT: Observe all governing codes and ordinances. It is the customer’s responsibility: To contact a quali ed electrical installer. If codes permit and a separate ground wire is used, it is recommended that a quali ed electrician determine that the ground path is adequate.
  • Page 10 Preparation : Advanced Preparations: Be familiar with the controls of the range hood by reading through Range Hood Operations, Page 1 . Place the range hood on a at, stable surface. Connect the range hood to a designated standard outlet (120-Volt, 60Hz, AC only) and turn on the range hood.
  • Page 11 Installations (refer to Page for parts): 1. Measure the distance between stove top and the bottom of range hood. A distance of 24” to 30” is recommended with a minimum of 30” for gas stove tops. 1. You have two ways (A or B) to mount this range hood: A–1.
  • Page 12 Installation (Continued) : 5. Store excess wires in the wiring box. 6. Drop oil tunnel into recess support near rear of hood. Refer to Figure 8. 7. To install baf e lters and stainless spacer(s), refer to Baf e Filters and Stainless Steel Spacers on Page 1 for baf e lter and stainless spacer placement.
  • Page 13: Range Hood Operations

    Range Hood Operations : Control Panel Layout and Buttons Con gurations: This range hood is equipped with six electronic controls, oversized powerful centrifugal squirrel cage motor, stainless steel baf e lters and spacers, two bright 3W LED lights and 120V 250W heating lamp sockets (heating lamps sold separately).
  • Page 14 Range Hood Operations (Continued) : Control Panel Layout and Buttons Con gurations: During this 3-minutes delay, changing speeds will not affect the countdown. Immediate Power-off While the fans are in 3-minute power-off delay mode, press the Power Control (On/Off) button once to turn OFF the fans immediately.
  • Page 15: Troubleshooting

    Troubleshooting : If the range hood or LED light does not operate Check if the range hood has been plugged in, make after installation: sure that all power has been turned back ON, fused not blown and all electrical wiring are properly con- nected.
  • Page 16: Specifications

    Use and Care Information : Operations: Read and understand all instructions and warnings in this manual before operating the appliance. Save these instructions for future reference. Always leave safety grills and lters in place. Without these components, operating blowers could catch on to hair, ngers and loose clothing.
  • Page 17 WARNING Measurements and Diagrams : This range hood is 10" high (254 mm) - For electric cook top you need min. 34" (863 mm) clearance distance between bottom of cupboard and cook top; - For gas cook top you need 40" (1015 mm) clearance. ll easure ents in arenthesis are in illi eters.
  • Page 18 All measurements in parenthesis are in millimeters. All inch measurements are converted from millimeters, thus inch measurements are estimated. Rear Knockout Holes: Hood-Mounting Bracket:...
  • Page 19 Baffle Filters and Stainless Steel Spacers: 30” Range Hood 36” Range Hood Circuit Diagram:...
  • Page 20 Descri tion Descri tion crews 3 tainless teel acer i e aries ood Casing a e Filter ounting rac et O tional a e andle crews 3 O tional Electrical sse bl crews 3 crews 3 lower sse bl Wiring o LED Light anel crews 3 as et...
  • Page 21 Description Description Air Chamber Right Squirrel Cage Screw Cap Gasket Left Squirrel Cage Screws (3/16” x 3/8”) Left Locknut Left Motor Air Flow Grill Right Motor Screws (3/16” x 3/8”) Safety Screen Right Locknut...
  • Page 22 Description Description Electrical Box Screws (3/16” x 3/8”) Screws (3/16” x 3/8”) Transformer Processor Board Screws (3/16” x 3/8”) Electrical Box Cover Capacitor Setup Board Screws (3/16” x 3/8”) Gasket...
  • Page 23: Maintenance

    Maintenance: SAFETY WARNING: Never put your hand into area housing the fan while the fan is operating! For optimal operation, clean range hood and all baffle/spacer/filter/oil container regularly. Regular care will help preserve the appearance of the range hood. Cleaning Exterior surfaces: •...

This manual is also suitable for:

Uca636
