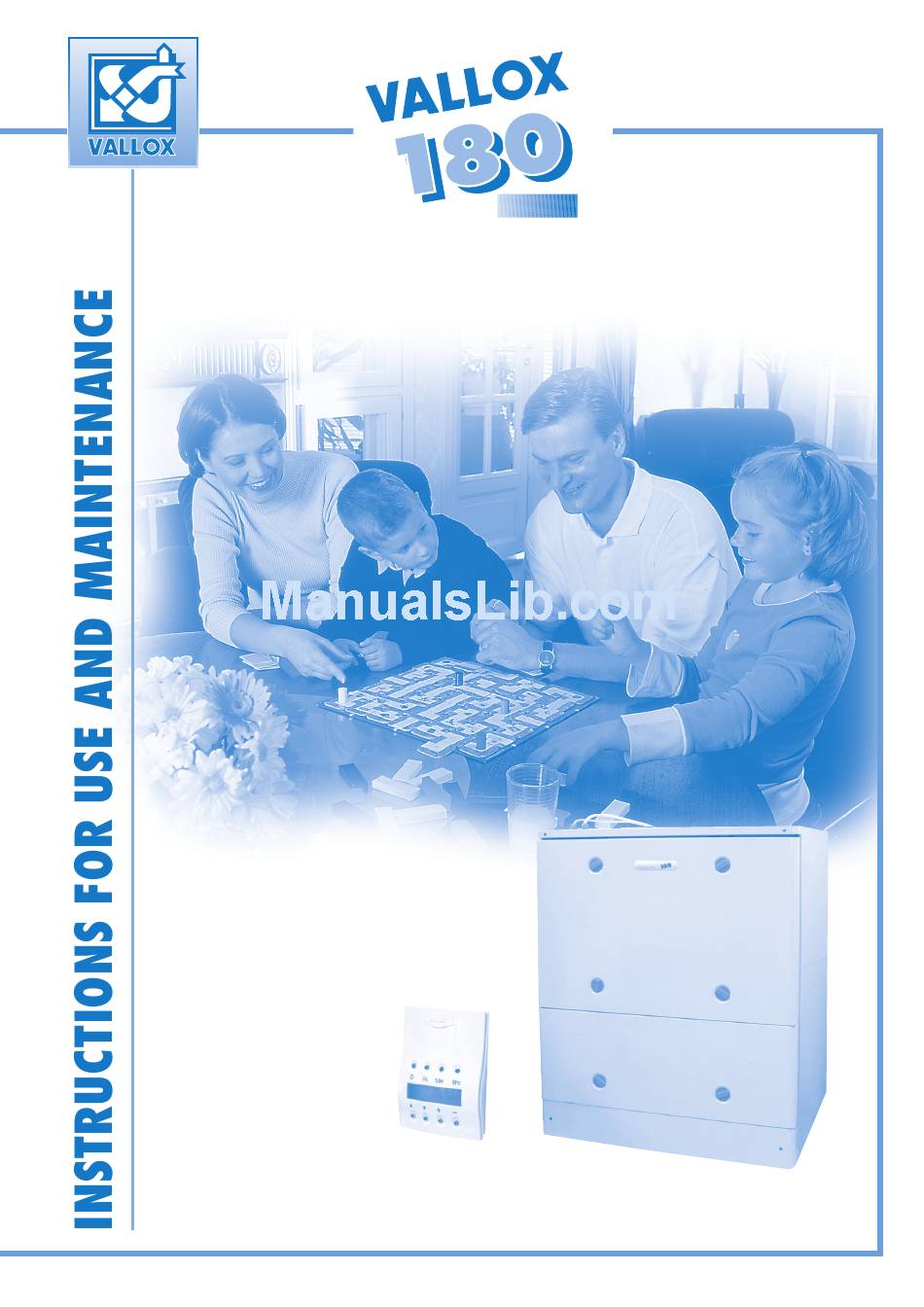

  • Page 1 • 1.09.283E • 19.8.2008 • Tyyppi 3486 © VALLOX Electronically controlled supply / extract ventilation with heat recovery DIGIT ELECTRONIC CONTROLLER WITH LCD DISPLAY © VALLOX • We reserve the right to make changes without prior notification.

  • Page 2: Table Of Contents

    Never switch ventilation off, because ventilation keeps indoor air 4.5. Condensing water ............... p. 14 quality uniform and removes gases TROUBLESHOOTING and dust emanating from the .................. p. 15 structures. © VALLOX • We reserve the right to make changes without prior notification.

  • Page 3: Three Questions About Ventilation

    Carbon For further details, see inner pages. dioxide and humidity sensors adjust ventilation in the rooms automatically as needed. © VALLOX • We reserve the right to make changes without prior notification.

  • Page 4: Making The Unit Ready For Operation

    Boosting is needed during for example sauna baths, cooking, clothes washing or family parties. If carbon dioxide and humidity CONTROL PANEL sensors have been installed in the system, VALLOX 180 also takes care of demand controlled ventilation. 2.2. Ventilation control...

  • Page 5: Ventilation Control With Carbon Dioxide Sensor

    When two or more sensors are used, fan speed is adjusted according to the highest measuring result. • It is possible to connect 1...5 carbon dioxide sensors as options to the VALLOX 180 SE unit.

  • Page 6: Post-Heating

    When heating has been activated, the unit automatically adjusts the temperature selected. 2.9. Supply air constant temperature control • VALLOX 180 SE has a relative post-heating control; when the temperature selected exceeds supply air temperature by more than 2.5 °C, the radiator is on at 100%, and when the temperature difference gets smaller, the period of active operation is automatically reduced in two-minute sequences.

  • Page 7: Heat Recovery Antifrost Function

    • The interval can be set between 1 and 15 months at the control panel. 2.15. Filter guard function • If the VALLOX 180 SE unit is equipped with pressure difference switches monitoring the supply and/or extract air filters, they light up the filter guard symbol ( ) in the main display of the control panel when pressure has risen above the setpoint.

  • Page 8: Fireplace Switch / Boosting

    In other fault situations, the points are closed. 2.18. Air filtering VALLOX 140 Effect SE features coarse filtering of both extract and supply air before the fans. The unit has F7 (B) and G3 class (A) fine and coarse filters on the supply side, and a G3 class coarse filter (A) on the extract side.

  • Page 9: Control Panel

    The accuracy of the temperature sensors is ± 2 °C. Sup. 20 Exh. 20 3.2.6. Setting supply air temperature Supply air temperature setting is changed with the + and – buttons. Temp. setting © VALLOX • We reserve the right to make changes without prior notification.

  • Page 10: Settings Menu

    If the unit has alternating 100% current fans, this adjustment has no impact on the operation of the unit. © VALLOX • We reserve the right to make changes without prior notification.
  • Page 11 The desired maximum fan speed is selected with the + and – buttons. Maximum fan MAX speed speed is on either with adjustments or permanently. See section 3.3.6. Mode of operation of the maximum speed setting. © VALLOX • We reserve the right to make changes without prior notification.

  • Page 12: Week Clock Control

    Maintenance reminder = 4 months = 12 °C Cell bypass Cascade control = not used Humidity level (RH level) adjustment = automatic Switch type = fireplace switch © VALLOX • We reserve the right to make changes without prior notification.

  • Page 13: Maintenance Instructions

    Clean the coarse filters (A) by washing them at least twice a year and whenever the filter guard indicates a need for maintenance. When you open the upper door of VALLOX 180, the security switch (T) turns voltage off.

  • Page 14: Water-Circulating Post-Heating Radiator

    4.4. Filter guard (option) VALLOX 180 can be equipped with an optional filter guard. The filter guard symbol ( ) normally lights up in the main display at speeds 7 and 8, when the filters are clean, and this does not cause any service activities.

  • Page 15: Troubleshooting

    • Contact a maintenance company. Sensor mounting needs to message is displayed and the be checked and the sensor has to be replaced if necessary. unit is stopped. © VALLOX • We reserve the right to make changes without prior notification.
  • Page 16 All the other selected adjustments and setpoints remain in the memory of the unit. Vallox Oy FIN-32200 Loimaa Finland Telephone +358 2 7636 300 Fax +358 2 7631 539 Internet: www.vallox.com. © VALLOX • We reserve the right to make changes without prior notification.
