SONOSHAKE

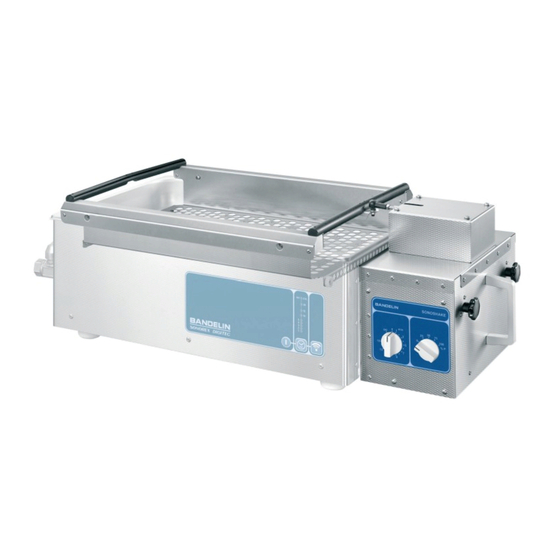

Shaking device SA 1028
Accessories for
SONOREX DIGITEC DT 1028 F ultrasonic baths
51336-005 en/2022-03

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SONOSHAKE and is the answer not in the manual?

Questions and answers

Summary of Contents for BANDELIN SONOSHAKE

  • Page 1 User Instructions SONOSHAKE Shaking device SA 1028 Accessories for SONOREX DIGITEC DT 1028 F ultrasonic baths 51336-005 en/2022-03...
  • Page 2 Copyright & limitation of liability This document may not be reproduced, either in full or in extracts, without prior approval of BANDELIN electronic GmbH & Co. KG, hereinafter referred to as BANDELIN. The German original is the binding version of this document. Any diff erence in the translation is not binding and has no legal ef- fect.
  • Page 3 Operating sequence Identifi es instructions that are to be followed in the described  instructions sequence. 51336-005 en/2022-03 3 / 25 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
  • Page 4: Table Of Contents

    Check the coupling opening ..................14 Changing the amplitude setting ..................15 Start-up ........................15 Operation ........................16 Time setting ........................16 Power setting ......................17 4 / 25 51336-005 en/2022-03 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
  • Page 5 - not applicable - .................... 23 Taking the unit out of service ..................24 Key words - not applicable - ....................24 51336-005 en/2022-03 5 / 25 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
  • Page 6: Product Description

    The shaking device has four diff erent shaking frequencies allowing up to max. 200 shakes/min with an amplitude of max. 20 mm. 6 / 25 51336-005 en/2022-03 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
  • Page 7: Purpose

    The declaration of conformity can be requested from the manufacturer by providing the serial number. 51336-005 en/2022-03 7 / 25 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
  • Page 8: Technical Data

    Permissible relative humidity up to 31°C: Permissible relative humidity up to 40 °C: No dewing. Only for indoor operation. 8 / 25 51336-005 en/2022-03 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
  • Page 9: Electromagnetic Ambient Conditions (Emc)

    It is suitable for use in facilities and areas which are directly connected to a public low- voltage supply network, e.g. medical laboratory facilities. 51336-005 en/2022-03 9 / 25 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
  • Page 10: Warnings And Safety Precautions

    • Do not touch any parts of the device or reach into the device when shaking is in progress. 10 / 25 51336-005 en/2022-03 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
  • Page 11: Preparation

    Roller carriage Drive unit Clip bearing Fastening material set User instructions Additional accessories according to order – see delivery note 51336-005 en/2022-03 11 / 25 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
  • Page 12: Set-Up / Assembly

    (possibly pre-assembled) A size 5 Allen key is required for the installation (not included in the scope of delivery). 12 / 25 51336-005 en/2022-03 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
  • Page 13: Installing The Mount

     Push the drive unit onto the threaded bars – through the tubes – as far as it will go.  The screw the star knobs onto the threaded bars and tighten. Tubes 51336-005 en/2022-03 13 / 25 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
  • Page 14: Positioning/Adjusting The Roller Carriage

    Sections 2.2.2 and 2.2.3 so that the sliding rod is in the centre and grinding is avoided. Distances the same? 14 / 25 51336-005 en/2022-03 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
  • Page 15: Changing The Amplitude Setting

    Then switch device off again.  If necessary, equip the roller carriage with holding clamps, see Section 4.1. 51336-005 en/2022-03 15 / 25 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
  • Page 16: Operation

    The time switch only works if mains voltage is present. 16 / 25 51336-005 en/2022-03 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
  • Page 17: Power Setting

    The shaking frequency can also be changed during operation. Caution! Risk of splashing – with larger samples and higher power settings! 51336-005 en/2022-03 17 / 25 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
  • Page 18: Use

     Press/click the bearing cup 2 onto the lever 1 on the ball stud (with clip bearing 3). 18 / 25 51336-005 en/2022-03 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
  • Page 19: Shaking

     Set the required shaking period, see Section 3.1.  Set the required sonication period at the ultrasonic bath and start the ultrasound, see separate user instructions. 51336-005 en/2022-03 19 / 25 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
  • Page 20 For more detailed information, please refer to the user instructions of the ultrasonic bath. 20 / 25 51336-005 en/2022-03 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
  • Page 21: Cleaning/Disinfection And Care Of The Device

    During extended periods without use, the shaking device should be stored in a cool, dry place. The roller carriage should be taken off the drive unit. 51336-005 en/2022-03 21 / 25 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
  • Page 22: Maintenance And Repair

    The form can be downloaded from the Internet as a PDF fi le: www.bandelin.com - Download ... 22 / 25 51336-005 en/2022-03 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
  • Page 23: Accessories

    50 ml EK 100 7516 100 ml EK 250 3259 250 ml EK 100 Preparations - not applicable - 51336-005 en/2022-03 23 / 25 1 electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • info@bandelin.com...
  • Page 24: Taking The Unit Out Of Service

    • The packing is recyclable. Key words - not applicable - If Service is required, please contact the specialist dealer or the address specifi ed. BANDELIN electronic GmbH & Co. KG www.bandelin.com Zertifi ziert nach Heinrichstraße 3 – 4 info@bandelin.com...
  • Page 25 Note: The user instructions in this and other languages as well as further information are available on the supplied CD.
