- Page 1 Ci80 Manual (4.1 EN)
-
Page 2: Table Of Contents
Please refer to the information in the operating manual. WARNING! Dangerous voltage! Contents Safety precautions...............3 Information regarding use of loudspeakers..........3 Ci80 ..................4 Connections......................5 Operation with D6 or D12................5 Operation with E-PAC (version 3 with display only).......6 Dispersion characteristics.................6 Technical specifications..................7 Manufacturer's declarations..........8... -
Page 3: Safety Precautions
Generally speaking, a distance of 0.5 m (1.5 ft) from magnetic data carriers (floppy disks, audio and video tapes, bank cards, etc.) is sufficient; a distance of more than 1 m (3 ft) may be necessary with computer and video monitors. Ci80 Manual (4.1 EN) Safety precautions - 1... -
Page 4: Ci80

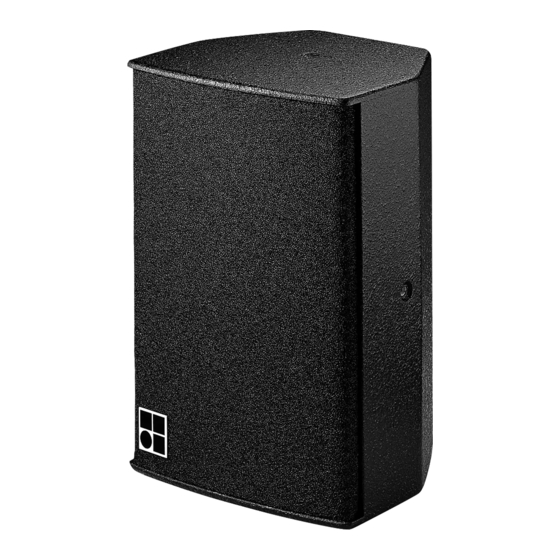

85° conical dispersion. The Ci80 cabinet is constructed from marine plywood and has an impact resistant paint finish. The front of the cabinet is protected by a rigid metal grill fitted with an acoustically transparent foam. The 30°... -
Page 5: Connections
Select the controller setup Ci80. Within the D12 amplifier this is available in "Dual Channel" and "Mix TOP/SUB" mode. Up to a total of four Ci80 loudspeakers can be driven by each D6 or D12 amplifier channel. Controller settings For acoustic adjustment the functions CUT, HFA and CPL can be selected. -
Page 6: Operation With E-Pac (Version 3 With Display Only)
Selecting Ci80 (CI8) mode enables the E-PAC to drive up to two Ci80 loudspeakers. LO IMP mode configures the E-PAC to drive a maximum of four Ci80 cabinets with a 6 dB reduction of input level to the speakers. The CUT and HFA settings are available. The characteristics of the CUT and HFA settings are explained in the previous section "Operation with... -
Page 7: Technical Specifications
Pin assignments....................NL4: 1+/1– .....................Fixed cable: Brown + / Blue – Weight......................7.8 kg (17.2 lb) 112 [4.39"] 240 [9.45"] 135 [5.30"] 87 [3.40"] 205 [8.07"] Fig. 7: Ci80 cabinet dimensions in mm [inch] Ci80 Manual (4.1 EN) Page 7 of 8... -
Page 8: Manufacturer's Declarations
Manufacturer's declarations EU conformity of loudspeakers (CE symbol) This declaration applies to - Ci80 Z1402 manufactured by d&b audiotechnik GmbH. All production versions of this type are included, provided they correspond to the original technical version and have not been subject to any later design or electromechanical modifications.
