- Page 1 B6-SUB Manual 1.1 en...
- Page 2 General information B6-SUB Manual Version: 1.1 en, 08/2014, D2716.EN .01 Copyright © 2014 by d&b audiotechnik GmbH; all rights reserved. Keep this manual with the product or in a safe place so that it is available for future reference. When reselling this product, hand over this manual to the new owner.
-
Page 3: Table Of Contents
B6-SUB loudspeaker............5 2.1. Product description..............5 2.2. Connections................5 2.3. Operation................6 2.3.1. Controller settings..............6 2.4. Technical specifications............7 Manufacturer's declarations........8 3.1. EU conformity of loudspeakers (CE symbol)......8 3.1.1. WEEE Declaration (Disposal)..........8 d&b B6-SUB Manual 1.1 en... -
Page 4: Safety Precautions
Generally speaking, a distance of 0.5 m (1.5 ft) from magnetic data carriers (floppy disks, audio and video tapes, bank cards, etc.) is sufficient; a distance of more than 1 m (3 ft) may be necessary with computer and video monitors. d&b B6-SUB Manual 1.1 en... -

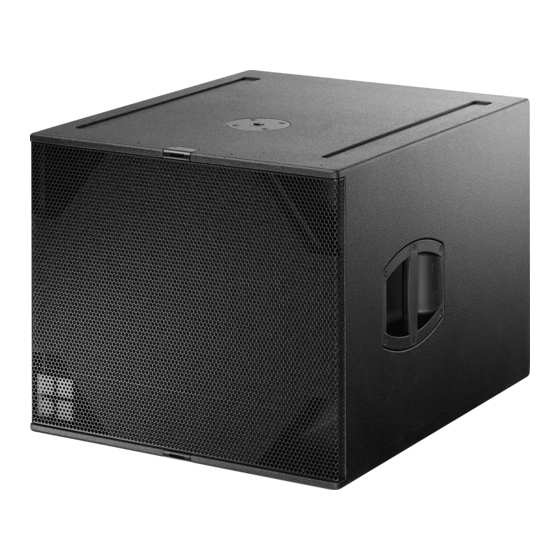

Page 5: B6-Sub Loudspeaker
2.2. Connections The cabinet is fitted with a pair of NLT4 F/M connectors. All four pins of both connectors are wired in parallel. The B6-SUB uses the pin assignments 2+/2–. Pins 1+/1– are designated to TOP cabinets. Using the male connector as the input, the female connector allows for direct connection to a second cabinet. -
Page 6: Operation
If the 100 Hz circuit is selected, the upper operating frequency of the system is reduced from 140 Hz to 110 Hz. It can be used when actively driven B6-SUB subwoofers are used to supplement TOP cabinets operated in full range mode, for example in a distributed sound system. -
Page 7: Technical Specifications
1 x 18" driver Connections 2 x NLT4 F/M optional 2 x NL4 M or EP5 B6-SUB frequency response, standard and 100 Hz mode Pin assignment NLT4 F/M and NL4 M: 2+ / 2– EP5: 3: + / 4: –... -
Page 8: Manufacturer's Declarations
Please dispose of this product according to the respective national regulations or contractual agreements. If there are any further questions concerning the disposal of this product, please contact d&b audiotechnik. d&b B6-SUB Manual 1.1 en... - Page 10 www.dbaudio.com...
