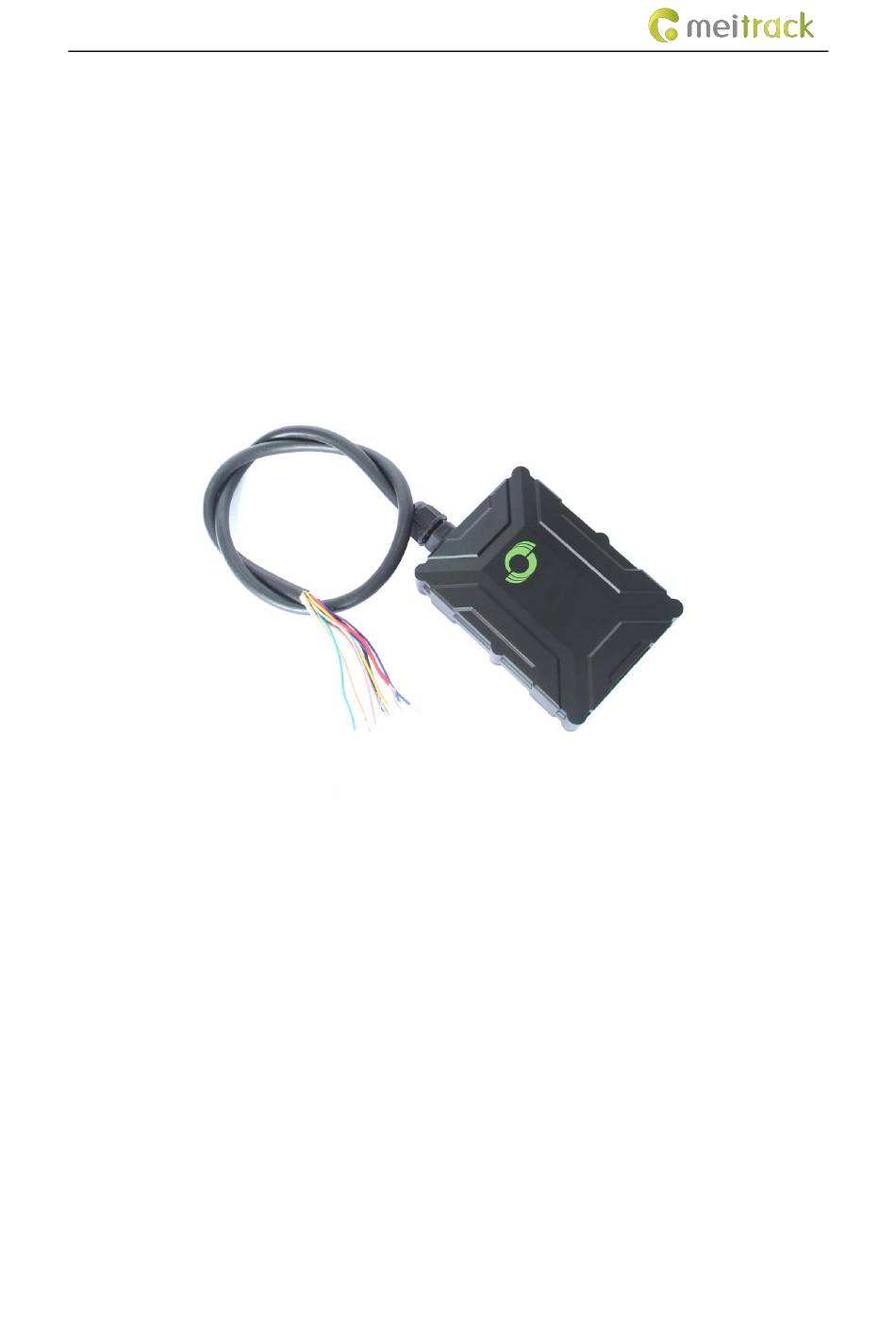

- Page 1 MEITRACK T399 Bluetooth Vehicle Tracker User Guide MEITRACK T399 Bluetooth Vehicle Tracker User Guide...
- Page 2 MEITRACK T399 Bluetooth Vehicle Tracker User Guide Change History File Name MEITRACK T399 Bluetooth Vehicle Tracker User Guide Project T399 Bluetooth vehicle tracker Creation Date 2020-12-18 Update Date 2020-02-05 Subproject User Guide Total Pages Version V1.1 Confidential External Documentation Copyright © Meitrack Group 2021. All rights reserved.
-
Page 3: Table Of Contents
6.3.1 Installing the USB Driver ........................- 12 - 6.3.2 Configuring Device Parameters by Meitrack Manager ............... - 13 - 6.3.3 Setting the Bluetooth Temperature and Humidity Sensor and Beacon by Meitrack Manager ..- 14 - 6.4 Tracking by Mobile Phone ........................... - 16 - 6.5 Common SMS Commands .......................... -
Page 4: Copyright And Disclaimer
The user manual may be changed without notice. Without prior written consent of Meitrack Group, this user manual, or any part thereof, may not be reproduced for any purpose whatsoever, or transmitted in any form, either electronically or mechanically, including photocopying and recording. -
Page 5: Setting The Output Port Status Based On Events
MEITRACK T399 Bluetooth Vehicle Tracker User Guide You can set the following parameters by Meitrack Manager: GPS speed range, GPS positioning accuracy, and Number of GPS satellites. After the GPS data filtering function is enabled, if all conditions are met, GPS data will be updated. -
Page 6: Product Functions And Specifications
Remote vehicle fuel or power cut-off ⚫ GPS blind spot alert ⚫ Towing alert 3.1.3 Other Functions ⚫ SMS or GPRS (TCP or UDP) communication (Meitrack protocol) ⚫ Built-in 8 MB flash for recording driving routes ⚫ IP67 water resistance rating ⚫ Mileage report ⚫... -
Page 7: Functions Of Optional Accessories
MEITRACK T399 Bluetooth Vehicle Tracker User Guide ⚫ Smart power-saving mode ⚫ Built-in 3-axis accelerometer ⚫ Online Parameter Editor (only for the MS03 platform) ⚫ GPS data filtering ⚫ Set the output port status based on events ⚫ Stop Moving and Start Moving alerts ⚫... -
Page 8: Interface Definition
MEITRACK T399 Bluetooth Vehicle Tracker User Guide Memory 8 MB flash Sensor 3-axis accelerometer (used to wake the device up by vibration and detect towing alerts, harsh acceleration alerts, and harsh braking alerts) T399G-GFB5: Frequency band UMTS:B1/B2/B5/B8 GSM:B2/B3/B5/B8 T399L-AFB5: LTE FDD:B2/B4/B12... - Page 9 MEITRACK T399 Bluetooth Vehicle Tracker User Guide port, negative trigger input port, and output port. Power Input 1 Input 2 Input 3 Input 4 Output 1 1-wire + 5V Pin Number Cable Color Description 1 (Power +) Positive charge of the power input. Connect to the positive charge of the vehicle battery.
-
Page 10: Main Device And Accessories
Send data through the RS232 port or used to connect a CAN bus peripheral... 4 Main Device and Accessories Standard accessories: ⚫ T399 Bluetooth vehicle tracker (with a cable of 50 cm in length) ⚫ L wrench ⚫ Hexagon screw ⚫... -

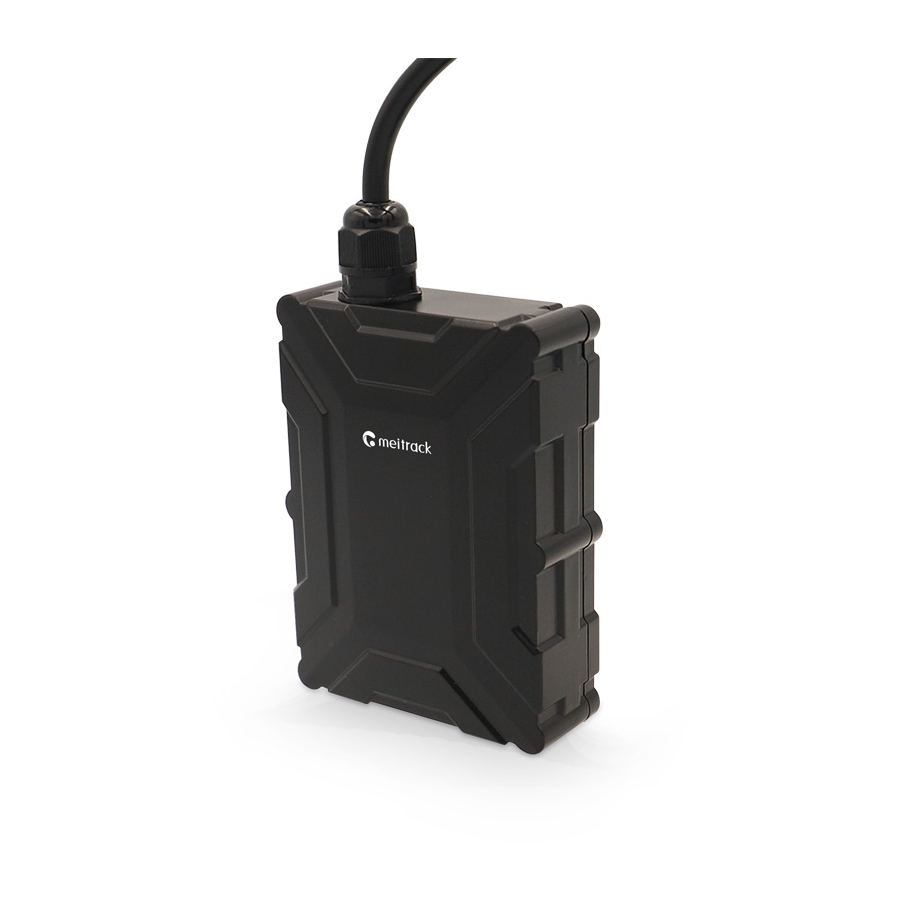

Page 11: Product Appearance
MEITRACK T399 Bluetooth Vehicle Tracker User Guide Bluetooth temperature and humidity sensor Bluetooth beacon Ultrasonic fuel level sensor It is connected to the RS232 port. RFID reader It is connected to the RS232 port. 5 Product Appearance Power button Firmware upgrade button... -
Page 12: Led Indicator
MEITRACK T399 Bluetooth Vehicle Tracker User Guide ⚫ Ensure that the PIN lock of the SIM card has been closed properly. ⚫ Ensure that the SIM card in the device has subscribed the caller ID service if you want to use your authorized phone numbers to call the device. -
Page 13: Configuring Device Parameters By Meitrack Manager
C:/windows/inf/ directory and usbser.sys file to the C:/windows/system32/drivers/ directory, and then restart the computer. 6.3.2 Configuring Device Parameters by Meitrack Manager This section describes how to use Meitrack Manager to configure the device on a computer. Operation steps: 1. Install the USB driver and Meitrack Manager. -
Page 14: Setting The Bluetooth Temperature And Humidity Sensor And Beacon By Meitrack Manager
Scanning mode: indicates the main device mode and used to detect nearby Bluetooth devices. If the ACC (input 2) is triggered, the device is switched to broadcasting mode. If the Meitrack Manager app fails to be connected within one minute, the device is switched to scanning mode. - Page 15 MEITRACK T399 Bluetooth Vehicle Tracker User Guide Note: If the MAC code of the Bluetooth beacon fails to be found, set it by Meitrack Manager app. Set Bluetooth temperature and humidity sensor parameters. Alarm when signal lost for(secs): If the Bluetooth temperature and humidity sensor fails to be detected within a specified period, an alert is generated.
-
Page 16: Tracking By Mobile Phone
MEITRACK T399 Bluetooth Vehicle Tracker User Guide Note: If the MAC code of the Bluetooth temperature and humidity sensor fails to be found, set it by Meitrack Manager app. 6.4 Tracking by Mobile Phone Call or send the 0000,A00 command by SMS to the device's SIM card number. The device will reply to an SMS with a map link. -
Page 17: Common Sms Commands
MEITRACK T399 Bluetooth Vehicle Tracker User Guide 061314 10:36 Indicates the date and time in MMDDYY Time hh:mm format. The GPS is invalid. A = Valid V = Invalid Indicates the GSM signal strength. Value range: 1–32 The larger the value is, the stronger the signal is. -
Page 18: Setting Authorized Phone Numbers - A71
MEITRACK T399 Bluetooth Vehicle Tracker User Guide 6.5.2 Setting Authorized Phone Numbers – A71 SMS sending: 0000,A71,Phone number 1,Phone number 2,Phone number 3 SMS reply: IMEI,A71,OK Description: Phone number: contains a maximum of 16 bytes. If no phone numbers are set, leave them blank. Phone numbers are empty by default. -
Page 19: Setting The Harsh Acceleration Or Harsh Braking Alert - Bbd
MEITRACK T399 Bluetooth Vehicle Tracker User Guide value. If you want to read the command settings, send B14. Note: The alert activation conditions may be affected due to static drift. Therefore, it is recommended that you should set the speed to a value between 5 km to 10 km and the consecutive time for the speed to a value that is larger than 60 seconds. -
Page 20: Controlling Output Status - C01
MEITRACK T399 Bluetooth Vehicle Tracker User Guide 6.5.7 Controlling Output Status – C01 SMS sending: 0000,C01,Speed,ABCDE SMS reply: IMEI,C01,OK Description: Speed = 0: No speed limit exists. When the device receives the command, the function will take effect immediately. Speed = [1...255]: Set the speed limit. Unit: km/h. When the driving speed is lower than the speed limit, the function will take effect. -
Page 21: Logging In To Ms03 Tracking System
Visit http://ms03.trackingmate.com, enter the user name and password, and log in to the MS03. (Purchase the login account from your provider.) For more information about how to add a device, see the MEITRACK MS03 GPS Tracking System User Guide (chapter 4 "Getting Started"). - Page 22 MEITRACK T399 Bluetooth Vehicle Tracker User Guide 2) Set Bluetooth temperature and humidity sensor parameters. Select Temperature & Humidity Sensor. Nearby Bluetooth temperature and humidity sensors will be detected automatically. Then select one and set sensor parameters as required, as shown in the following figures.
-
Page 23: Mounting The Device
Mount the device in the vehicle by a cable tie. Note: Do not install it at a metal covered place. If you have any questions, do not hesitate to email us at info@meitrack.com. Copyright © Meitrack Group 2021. All rights reserved.
