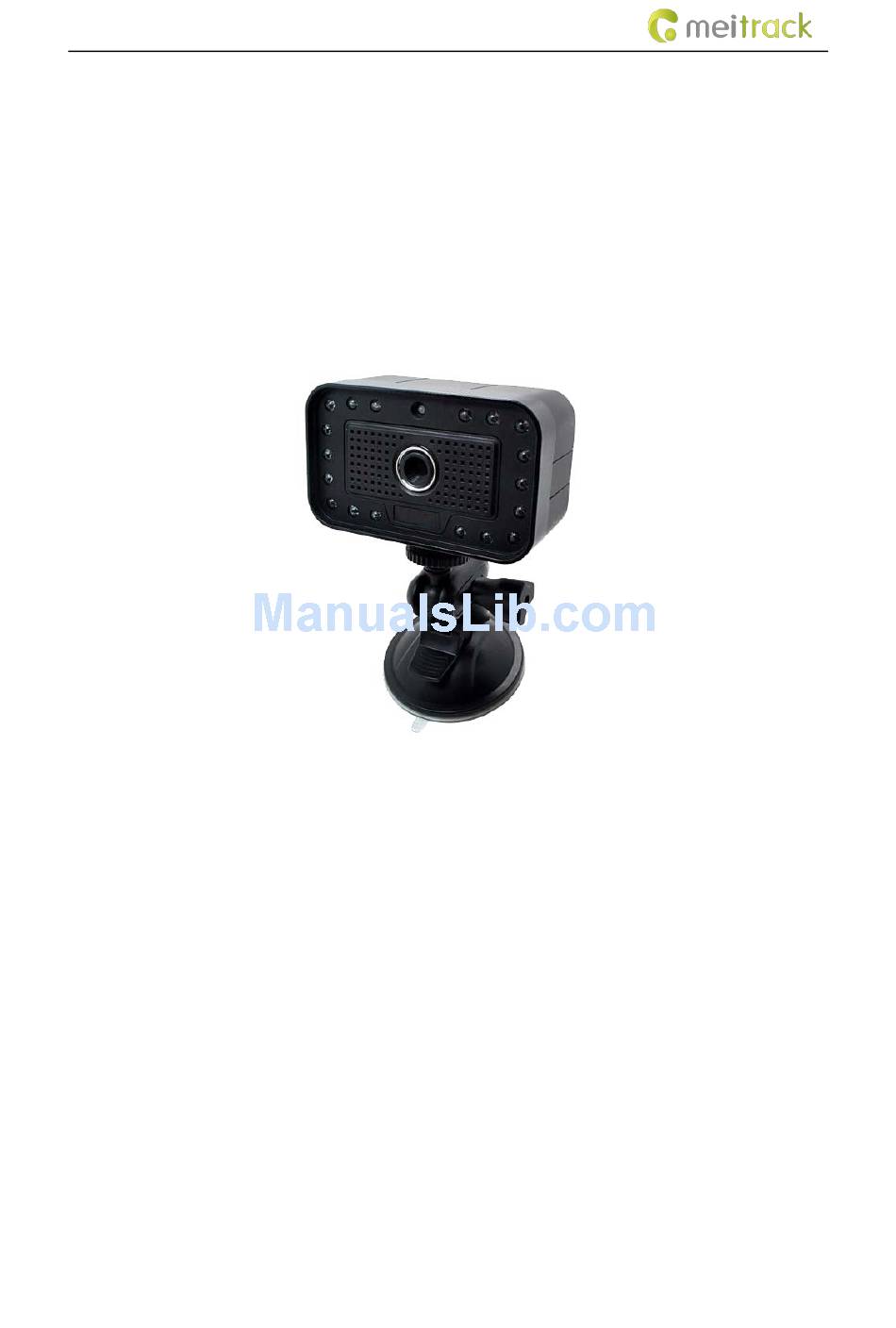

- Page 1 A89 Driver Fatigue Monitor User Guide A89 Driver Fatigue Monitor User Guide Applicable Model: T366...
- Page 2 Change History File Name A89 Driver Fatigue Monitor User Guide Applicable Firmware T366_Y12V202 Creation Date 2018-07-24 Update Date 2018-08-02 Subproject Accessory User Guide Total Pages Version V1.0 Confidential External Documentation Copyright © 2018 Meitrack Group All rights reserved. - 2 -...
-
Page 3: Table Of Contents
4 Product Specifications ............................... - 5 - 5 A89 Installation ................................- 6 - 5.1 Connecting the A89 to the T366 Tracker ...................... - 6 - 5.2 Installing the A89 ............................- 6 - 5.2.1 Finding an Installation Location ......................- 6 - 5.2.2 Testing the A89 ............................ -
Page 4: Copyright And Disclaimer
The user manual may be changed without notice. Without prior written consent of Meitrack Group, this user manual, or any part thereof, may not be reproduced for any purpose whatsoever, or transmitted in any form, either electronically or mechanically, including photocopying and recording. -

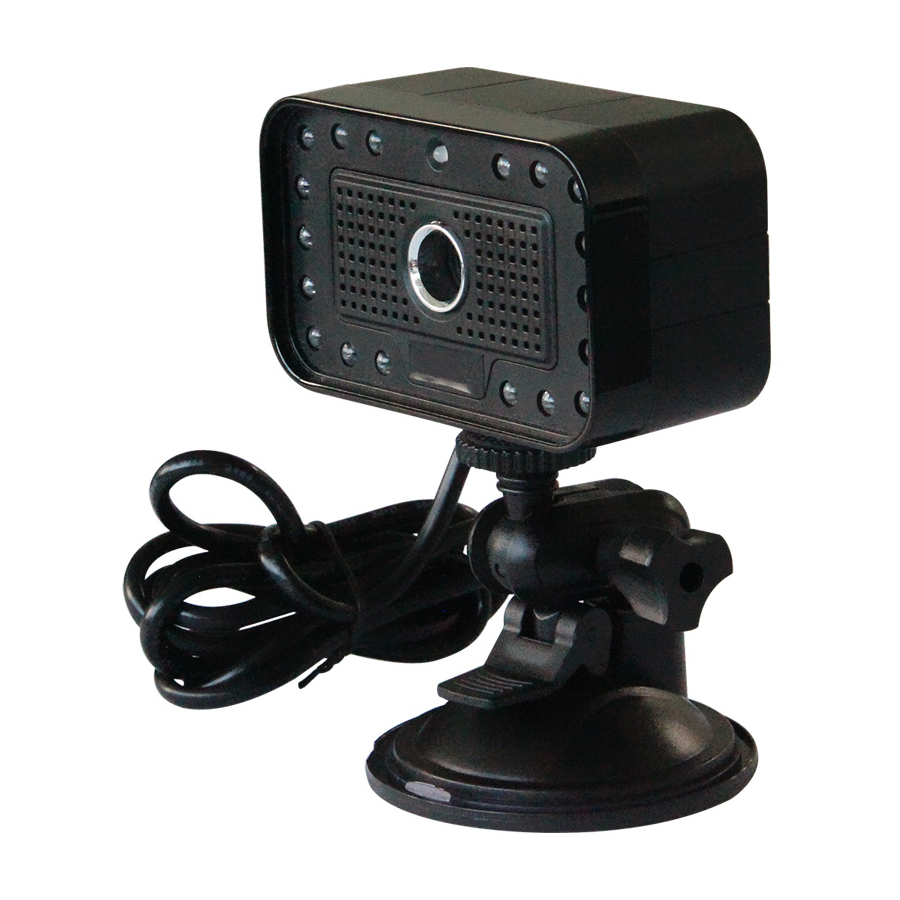

Page 5: Main Device And Accessories
9–32 V Average operating current 340 mA (12 V) 180 mA (24 V) Operating temperature -30°C to 75°C Operating humidity 5 %–95 % Pixel 320x480 Baud rate 115200 bps Copyright © 2018 Meitrack Group All rights reserved. - 5 -... -
Page 6: A89 Installation
5.2.1 Finding an Installation Location Each type of vehicle has a different internal structure. So you need to find a right location to install the A89. In general, you can install it around the dashboard (left/right/front). The installation angle between the A89 and a driver's eyes must be smaller than 30 degrees. - Page 7 The dashboard of trucks and buses is low, so you should install the A89 on a higher location around the dashboard. If the A89 is installed in front of the driver to the left or to the right, the A89 should not be higher than the driver's eyes, and the angle between the installation location and the driver's eyes should not be higher than 30 degrees.
-
Page 8: Dip Switch Introduction
But the alert time of distraction and closing eyes will be different. The DIP switch is at the back of the A89, shown in the following figures. The switch will be pushed to the off position before delivery. -
Page 9: Configuring The A89 On Meitrack Manager
7 Configuring the A89 on Meitrack Manager 7.1 Setting the GPRS Event On the Event tab page, locate Driving Behavior, and select GPRS. When the A89 detects an alert, a GPRS event will be sent to the MS03 tracking platform. -
Page 10: Setting The Alert Volume
7.4 Setting the Alert Volume There are 3 alert volume levels: Mute, Low, and High. If Alarm Volume Level is set to Mute, the A89 will not make alert sounds, but alert events and photos will be sent to the MS03 tracking platform. -
Page 11: Querying Reports And Photos From The Ms03 Platform
To view alert statistics information during different trips, choose Reports, and click Fatigue driving trip statistics. 10.3 Querying Driver Fatigue Mileage Statistics Reports To view alert statistics information per 100 km, choose Reports, and click Fatigue driving mileage statistics. Copyright © 2018 Meitrack Group All rights reserved. - 11 -... -
Page 12: Querying Alert Reports
A89 Driver Fatigue Monitor User Guide 10.4 Querying Alert Reports To view all alert events detected by the A89, choose Reports, and click Event Report. 10.5 Querying Alert Photos To view all alert photos captured by the A89, choose Reports, and click Photo Report.
