Chapter 3 Connection

3.1 Ethernet Port

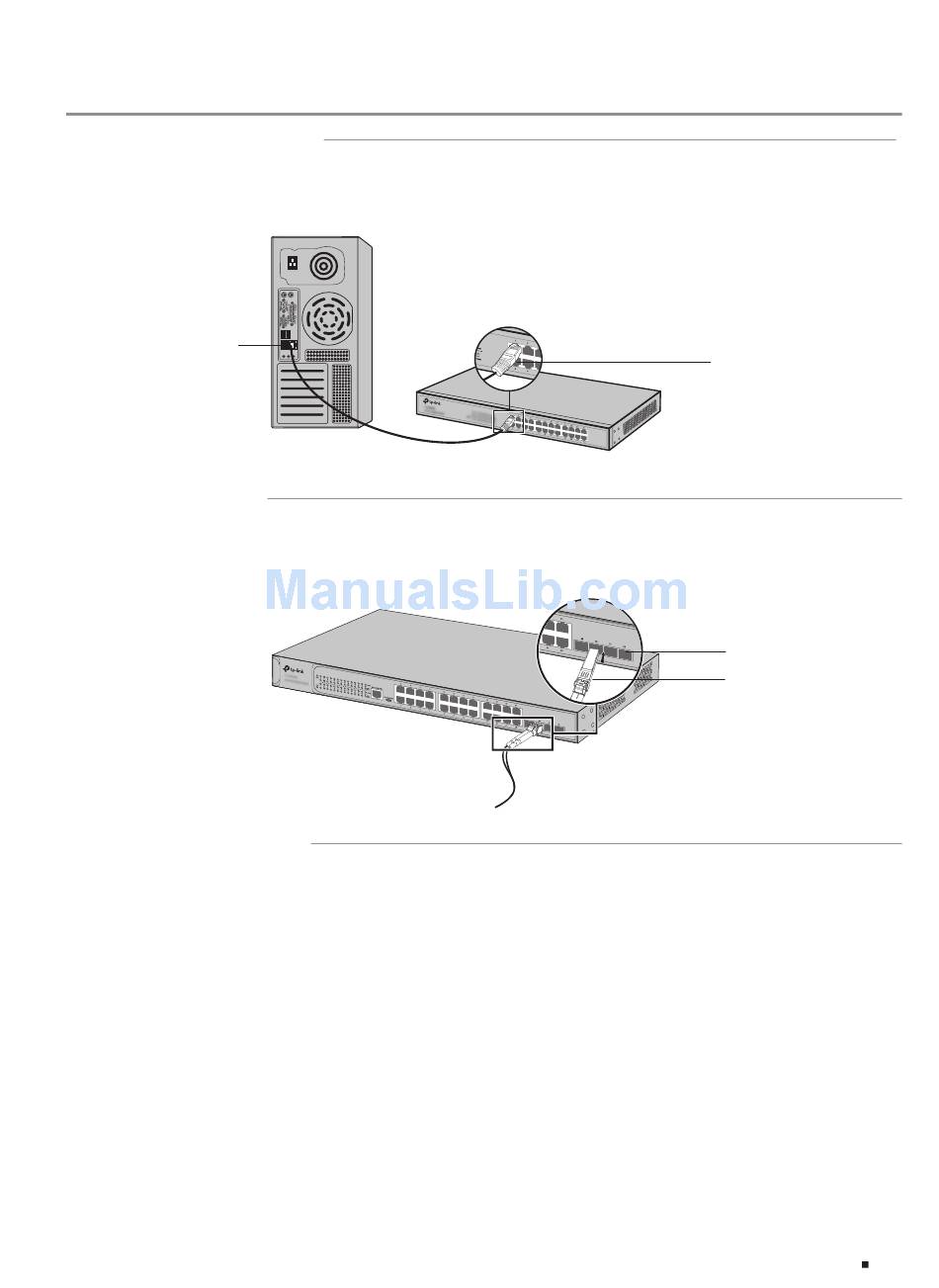

Connect an Ethernet port of the switch to the computer by RJ45 cable as the following figure shows.
Figure 3-1 Connecting the RJ45 Port
RJ45 Port
3.2 SFP Port
The following figure demonstrates the connection of SFP port to an SFP module.
Figure 3-2 Inserting the SFP Module
3.3 Console Port
CLI (Command Line Interface) enables you to manage the switch, thus you can load the CLI after
connecting the PCs or Terminals to the console port on the switch via the provided cable.
Connect the Console (RJ-45) port of the device with your computer by the console cable as the
following figure shows.
JetStream L2 Managed Switch
RJ45 Cable
SFP Slot
SFP Module
Connection 10
