Installation Guide

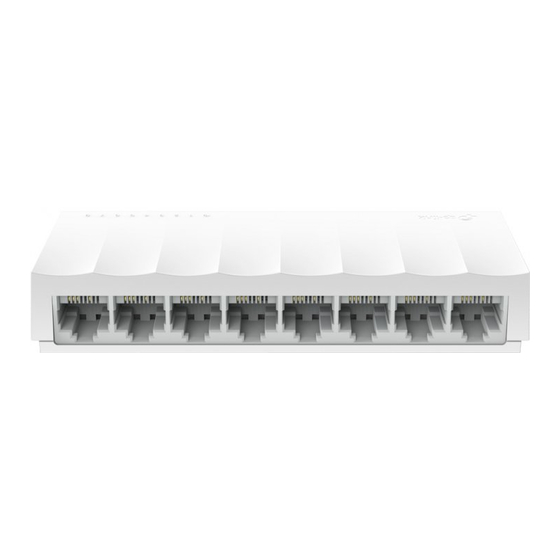

5/8-Port 10/100Mbps Desktop Switch
LS1005/LS1008
Note:
For simplicity, we will take LS1008 for example throughout this Guide.
Connection
Link/Act LED
PC
Power LED
Ethernet Ports (1-8)
LS1008
PC
LED Explanation
Power
On: Power on
Off: Power off
Link/Act
On: Running at 10/100Mbps
Off: No device is linked to the corresponding port
Flashing: Transmitting/receiving data
Router
LAN Port
WAN Port
Power Adapter
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TP-Link LiteWave LS1005
Summary of Contents for TP-Link LiteWave LS1005
- Page 1 LED Explanation Power On: Power on Installation Guide Off: Power off Link/Act On: Running at 10/100Mbps 5/8-Port 10/100Mbps Desktop Switch Off: No device is linked to the corresponding port LS1005/LS1008 Flashing: Transmitting/receiving data Note: For simplicity, we will take LS1008 for example throughout this Guide. Connection Power Adapter Link/Act LED...
- Page 2 Place the device with its bottom surface downward. For technical support and other information, please visit https://www.tp-link.com/support, or simply TP-Link hereby declares that the device is in compliance with the essential requirements scan the QR code. and other relevant provisions of directives 2014/30/EU, 2014/35/EU, 2009/125/EC, 2011/65/EU and (EU)2015/863.
