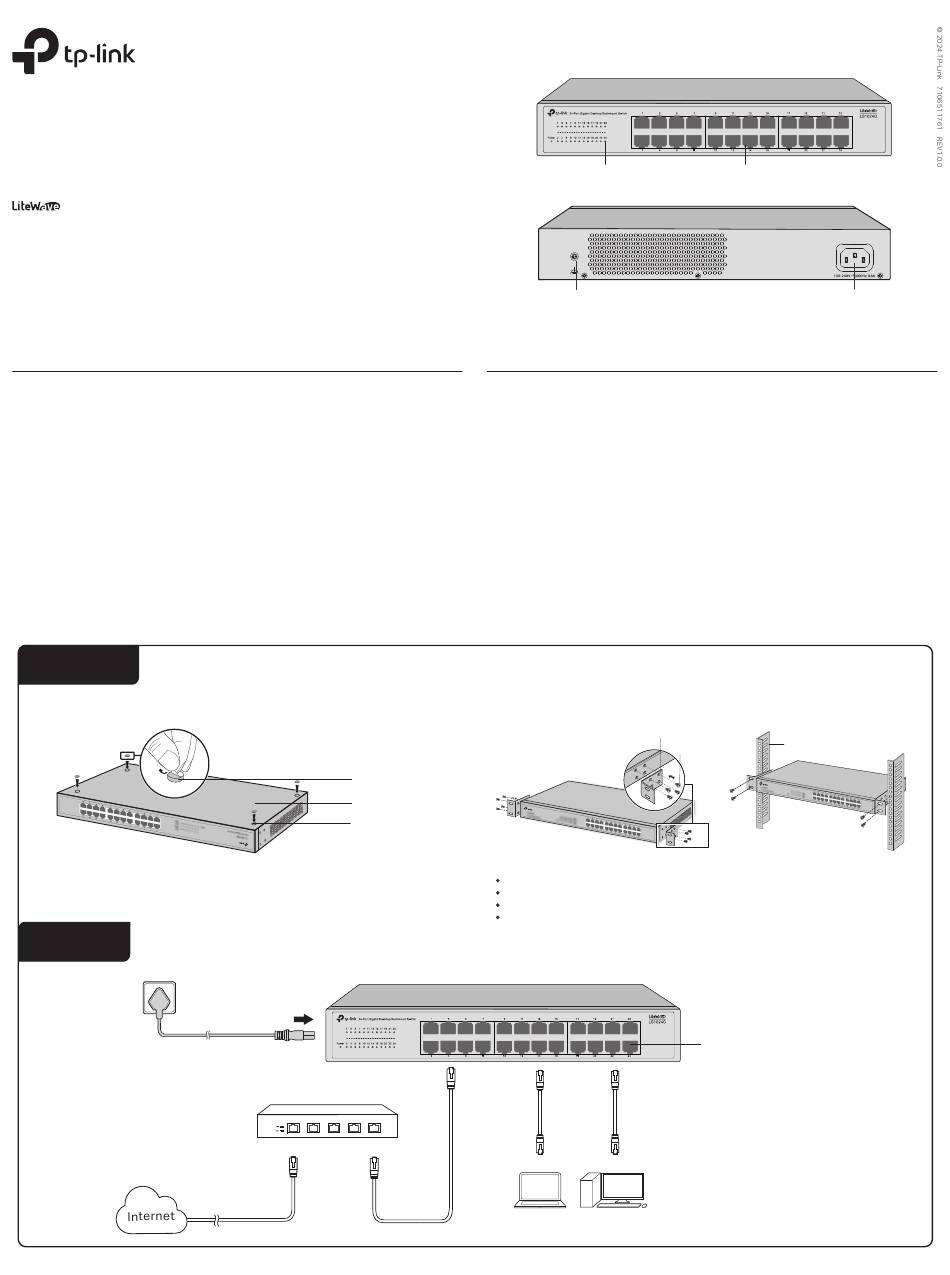

TP-Link LiteWave LS1016G Installation Manual

Installation Guide
16/24-Port Gigabit Desktop/Rackmount Switch
LS1016G/LS1024G
For simplicity, we will take LS1024G for example.
The images are for demonstration only and may differ from your actual product.
LEDs
Power
On: The switch is powered on.
Off: The switch is powered off or power supply is abnormal.
Flashing: Power supply is abnormal/Loop Prevention function is enabled.
Link/Act
On: A device is linked to the corresponding port and running properly.
Off: No device is linked to the corresponding port.
Flashing: Transmitting or receiving data.
Installation
Method 1: Desktop Installation
1) Remove the adhesive backing papers from the feet.
2) Attach the feet to the bottom of the switch to prevent it from slipping when placed on a desktop.
Connection
AC Power Cord
Feet
Bottom of the Device
Notch
Router/Gateway
WAN Port LAN Port
Appearance
Front Panel
LEDs
Rear Panel
Grounding Terminal Grounding Terminal
Others
Grounding Terminal
The switch already comes with lightning protection mechanism. You can also
ground the switch through the PE (Protecting Earth) cable of AC cord or with
Ground Cable.
Power Socket
Plug the female connector of the power cord directly into the power socket and
plug the male connector into an AC outlet. Make sure that the voltage of the power
supply meets the requirement of the input voltage (100–240 V ~ 50/60 Hz).
Method 2: Rack Installation
Rack-mounting Bracket
Note:
Leave 5 to 10 cm gaps around the devices for air circulation.
Avoid placing heavy things on the device.
Place the device with its bottom facing downwards.
Mount devices in sequence from the bottom to top of the rack and ensure a certain clearance
between devices for the purpose of heat dissipation.
PC PC
10/100/1000 Mbps RJ45 Ports
Power Socket
Rack
Screw
Ethernet Ports
