TP-Link LiteWave LS106P Installation Manual

Installation Guide
Desktop PoE+ Switch
LS106P/LS110P/LS1210P
© 2024 TP-Link 7106511332 REV1.0.0
Switches Explanation
Note: The numbers in brackets indicate the ports where the feature takes effect. For example, when Extend (Port 1-4) is toggled to On, the Extend mode will be enabled for
ports 1-4.
Recovery
Off: The PoE Auto Recovery function is disabled.
On: The switch will constantly detect the working status of a PoE powered device (PD).
When the switch finds that the PD works abnormally, the switch will reboot it.
Isolation
Off: Ports can transmit data with each other.
On: The corresponding ports cannot transmit data with other downlink ports. They can
transmit data only with the uplink port.
Note: The images in this guide are for demonstration only and may differ from your actual product.

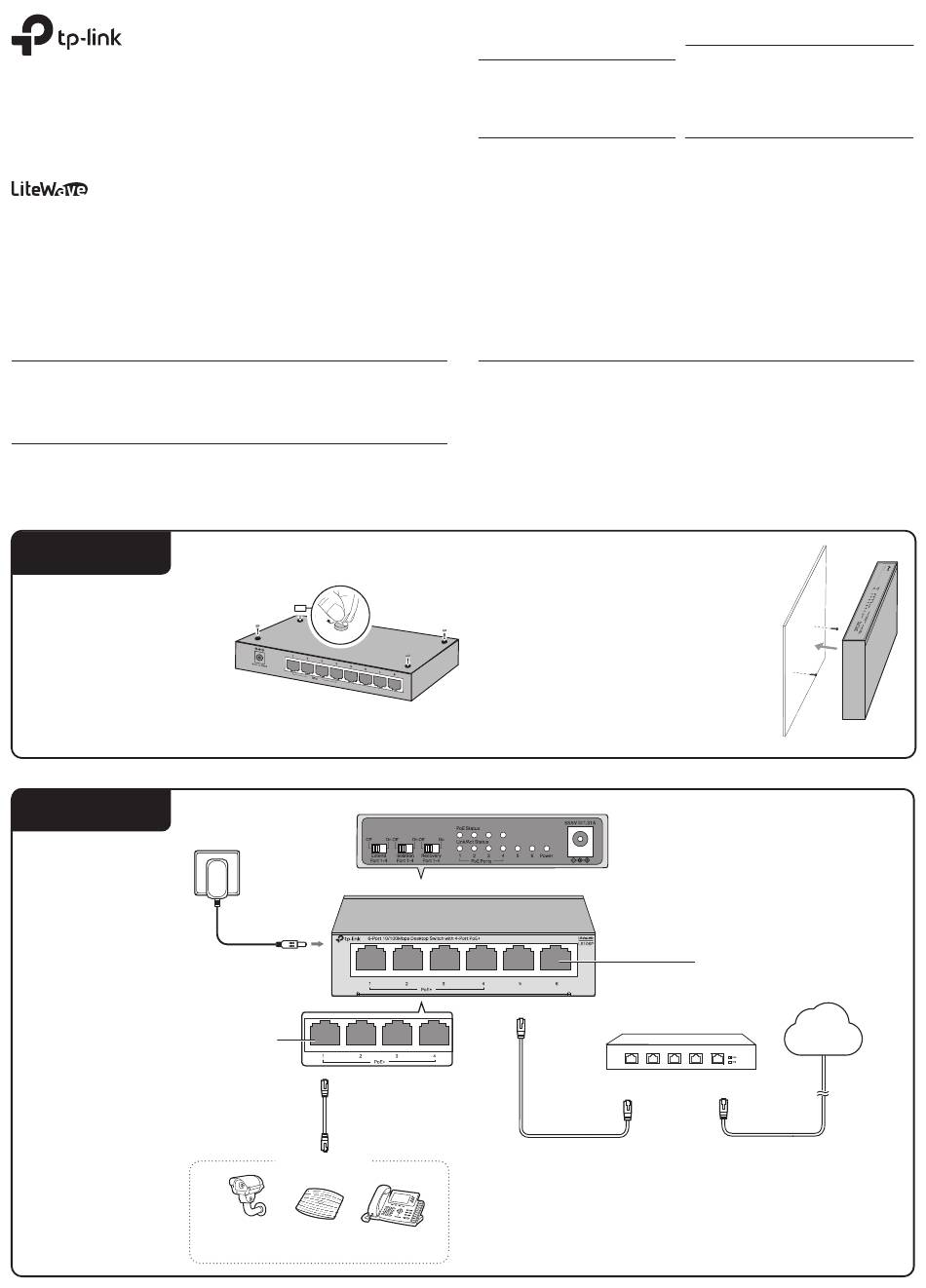

Installation
Desktop:
Attach the supplied feet to the
bottom of the switch to prevent it
from slipping when placed on a
desktop.
Connection
PoE Ports (1-4)
Power Adapter
PoE Devices
IP Camera AP IP Phone
LED Explanation
Power
On: Power on
Off: Power off
Link/Act; Uplink (LS110P)
On:
Running at 10/100 Mbps, but no activity.
Flashing:
Running at 10/100 Mbps and
transmitting or receiving data.
Off:
No device is linked to the corresponding
port.
Extend
Off: The corresponding ports run at 10/100 Mbps and support PoE power supply up to
100 m away.
On: The corresponding ports run at 10 Mbps and support PoE power supply up to 250 m
away.
Wall-mounting:
Drill two holes on the wall according to
the mounting holes on the bottom of the
switch, then secure the switch to the wall
with two suitable screws (not provided).
Note: For detailed information, please refer to
the Wall Mounting Guide on the device's
support page.
Note: For simplicity, we will take LS106P for example.
Router/Gateway
LAN Port
Note:
1. PoE ports can also connect to non-PoE devices, but only transmit data.
2. Non-PoE ports are recommended to connect to uplink devices like routers/gateways.
3. For LS106P/LS110P:
Ports 1-2 have higher priority than other ports in transmitting data if network
congestion occurs. It is recommended to connect key network devices (network
cameras, APs, etc.) to ports 1-2.
PoE
On: Providing PoE power
Flashing: Current-overload/Short-circuit
Off: No powered devices or not providing PoE
power
Uplink (LS1210P)
On:
Running at 10/100/1000 Mbps, but no activity.
Flashing:
Running at 10/100/1000 Mbps and
transmitting or receiving data.
Off:
No device is linked to the corresponding
port.
Ethernet Ports (1-6)
Internet
WAN Port
