GENERATOR WIRING DIAGRAM (GAC6HR)

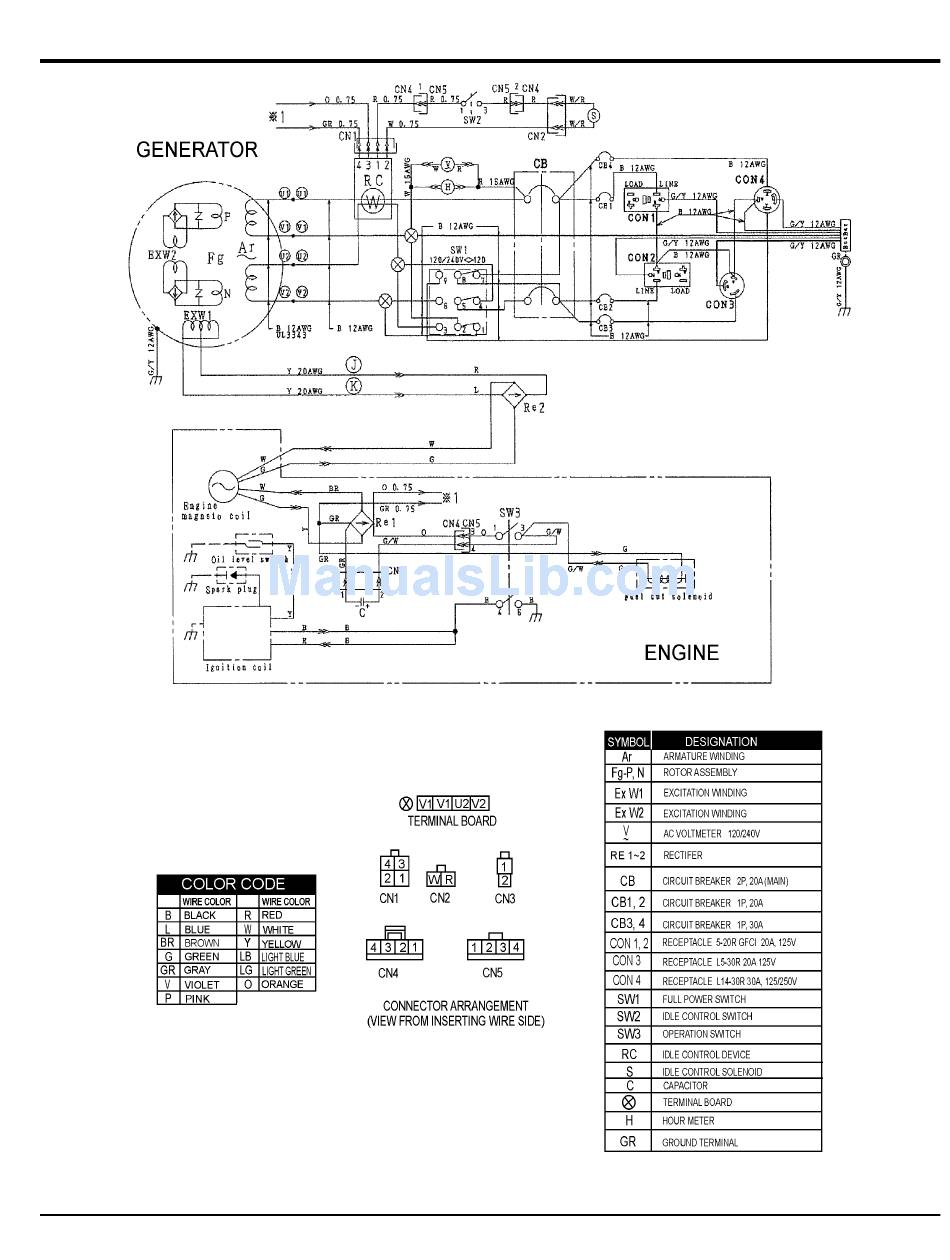

Figure 39. Generator Wiring Diagram (GAC6HR)
GAC6HR/HRS 60 HZ GENERATOR • OPERATION AND PARTS MANUAL — REV. #1 (12/13/17) — PAGE 33
