ASSEMBLY

Place all parts of recumbent bike in a cleared area and remove the packing materials. Do not dispose of the
packing materials until assembly is completed.
Assembly requires the included tools and your own adjustable wrench
screwdriver

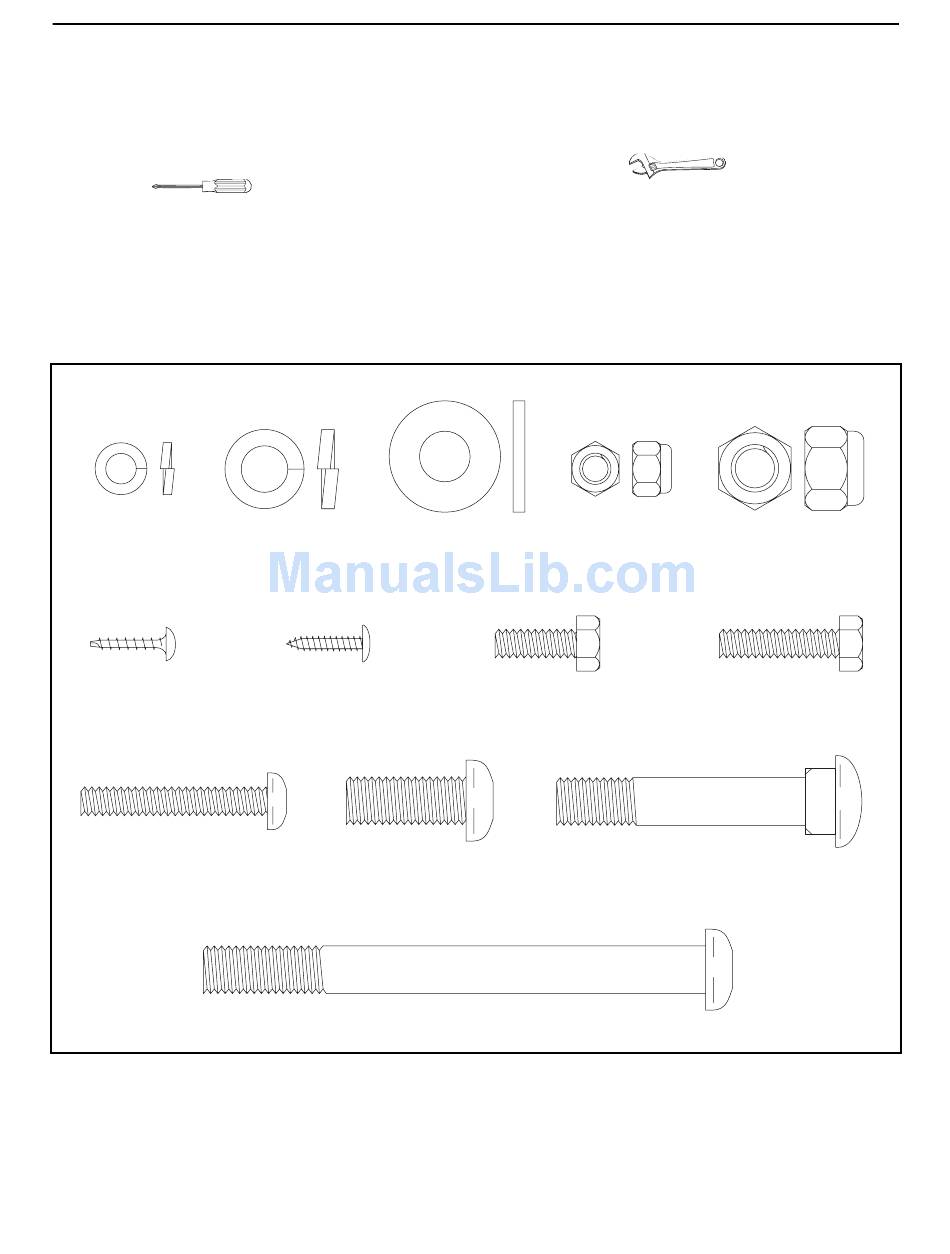

PART CHART

Use the part drawings below to identify the small parts used in assembly. The number in parenthesis below
each drawing refers to the key number of the part. The second number refers to the quantity used in assembly.
Note: Some small parts may have been pre-attached for shipping. If a part is not in the parts bag, check
to see if it has been pre-assembled.
M6 Split
Washer (67)–4 Washer (26)–3
M4 x 16mm
Screw (34)—1
M6 x 38mm Button
Head Bolt (18)–4
.
M10 Split M10 Flat
Washer (71)–4
#8 x 5/8"
Screw (22)–4
M10 x 25mm Button
Head Screw (25)–3
M10 x 105mm Button Head Bolt (70)–4
M6 Nylon
Locknut (66)–4
M6 x 16mm Hex
Head Screw (24)–8
M10 x 58mm Carriage Bolt (74)–4
4
and phillips
M10 Nylon
Locknut (72)–8
M6 x 25mm Hex
Head Screw (14)–4
