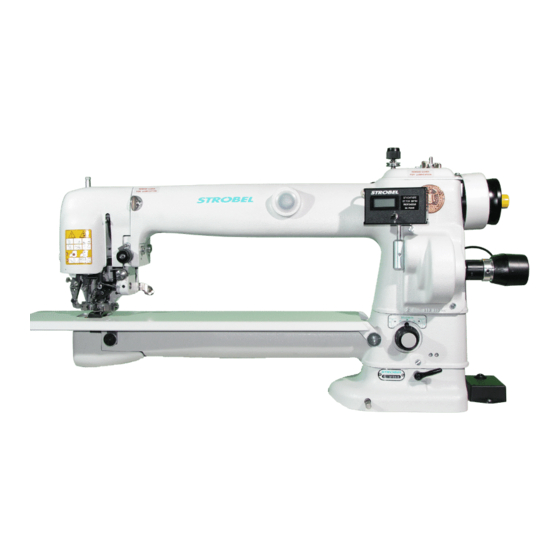

Strobel 310D-R Operating Instructions Manual

Hide thumbs Also See for 310D-R:
Table of Contents

Advertisement

Quick Links

For the professional user
Für den professionellen Anwender

Operating Instructions

Betriebsanleitung
Class:
Klasse:
Dated:
Stand:
310D-R
Ausf. 16
3100D-R
Ausf. 3
S p e z i a l m a s c h i n e n G m b H

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 310D-R and is the answer not in the manual?

Questions and answers

Related Manuals for Strobel 310D-R

Summary of Contents for Strobel 310D-R

  • Page 1: Operating Instructions

    For the professional user Operating Instructions Für den professionellen Anwender Betriebsanleitung Class: 310D-R Ausf. 16 Klasse: 3100D-R Ausf. 3 Dated: Stand: S p e z i a l m a s c h i n e n G m b H...
  • Page 2 The sign of quality ou find the Strobel trademark on every Strobel machine leaving our works. And with good reason. This symbol is a guarantee of the high quality of our products. Quality which creates trust – trust in our technology, our service and, not least of all, in our good name.
  • Page 3 Justify your trust. If you wish to profit from the performance and efficiency of your Strobel machine as long as possible, exact handling and thorough care is necessary. For this reason we kindly request that you read the operating instructions closely.
  • Page 5 BA_310D-R_3100D-R_A16-3_180117_en...
  • Page 6 BA_310D-R_3100D-R_A16-3_180117_en...
  • Page 7 Operating Instructions STROBEL Classes 310D-R and 3100D-R Contents General notes on safety .................... 5 General ........................7 Operating instructions ..................7 Class description, machine number and reference position left/right ..... 7 Machine applications ..................7 Technical data ....................8 Set-up and commissioning ..................9 Unpacking of the machine ................
  • Page 8 Operating the sewing machine ................28 Switch-on ...................... 28 Inserting and removing the sewing material ..........29 Sewing ......................29 5.3.1 Hemming with blind stitch ..............30 Problems during sewing and troubleshooting ..........31 Incorrect stitches (Fig. 16) ................34 Machine maintenance .....................

  • Page 9: General Notes On Safety

    General notes on safety Every person in charge of setting up, operating, servicing and repairing the machine must first read and understand the operating instructions and particularly the safety instructions before starting up the machine. Failure to comply with the following safety instructions can lead to bodily injury or damage to the machine.
  • Page 10 14. Warning instructions given in the operating instructions that pertain to especially dangerous parts of the machine must be indicated at these positions using a safety symbol. Warning instructions given in the operating instructions that pertain to special injury hazards for operating personnel or technicians must be indicated at these positions using a safety symbol.

  • Page 11: General

    (towards the hyphen) is located below the cover on the right side on the housing. Machine applications Cl. 310D-R Two thread blind stitch lock stitch machine for trimming the inside lining up to 8 mm under the lining fold in the jacket hem.

  • Page 12: Technical Data

    Needle size Thread polyester continuous filament Thread size 120/2 Air pressure 6 bar Average air consumption Cl.310D-R 25 l/h Cl.3100D-R 20 l/h Foot print 0.5 m x 1.1 m Noise: Average noise level at a speed of n = 1300 min...

  • Page 13: Set-Up And Commissioning

    Set-up and commissioning Unpacking of the machine Strobel machines are supplied either complete as upper part only. The cotton stand and another machine accessories are located in the packaging. Prior to disposing of the packing material it must be carefully checked whether all accessories parts have been unpacked.
  • Page 14 Fig. 1 Class 310D-R BA_310D-R_3100D-R_A16-3_180117_en...
  • Page 15 Class 3100D-R BA_310D-R_3100D-R_A16-3_180117_en...
  • Page 16 The cotton stand is mounted at the back on the right on the table plate after assembly of the individual parts. (Fig. 1) Check all screws at the frame for tight fit and retighten if necessary. Mount the position transmitter and adjust corresponding to point “3.4.2 Positions of the machine“.

  • Page 17: Sense Of Rotation (Fig. 3)

    Sense of rotation (Fig. 3) The correct sense of rotation of the hand wheel is clockwise when looking at it from the front. Fig. 3 Motor drive via toothed belt 3.4.1 Tension of the toothed belt (Fig. 4) C A U T I O N ! Danger of injury! To check the tension of the toothed belt, switch off the machine electrically, pull the mains plug and ensure the machine has actually stopped by pressing the motor pedal.

  • Page 18: Positions Of The Machine

    Fig. 4 3.4.2 Positions of the machine C A U T I O N ! Danger of injury! Danger of pulling in parts of clothing and of hair and danger of crushing fingers and stitching fingers with needles! When checking positions with switched-on machine keep fingers and hands away from moving parts.

  • Page 19: Intermediate Venting (Fig. 5)

    Intermediate venting (Fig. 5) If an intermediate venting with the knee lever should become necessary with attached pneumatic venting, it can be mounted on the screw (1) in its usual position. Fig. 5 BA_310D-R_3100D-R_A16-3_180117_en...

  • Page 20: Notes On Usage

    Notes on usage Needles and threads By selecting the most suitable needles and threads for the relevant sewing material one can influence the sewing quality decisively. Only tested GROZ-BECKERT needle system 1828 E should be used. The machine is supplied with needles of thickness 80. Note: An intact needle is of decisive importance for a good initial stitch.

  • Page 21: Threading And Thread Run (Fig. 7)

    Fig. 6 Threading and thread run (Fig. 7) C A U T I O N ! Danger of injury! Switch off the machine prior to threading and ensure the machine is off by pressing the pedal for switching the motor. Fig.
  • Page 22 Fig. 7 BA_310D-R_3100D-R_A16-3_180117_en...

  • Page 23: Winding Up The Thread (Fig. 8)

    Winding up the thread (Fig. 8) The course of the thread during winding up is shown in Fig. 8. Care must be taken that not too much of the thread is wound onto the reel and that the reel walls are not pushed apart, faulty reels must immediately be replaced with new ones.

  • Page 24: Thread Tensioning (Fig. 6)

    Fig. 9 Thread tensioning (Fig. 6) Dependent on grade, characteristic and thickness of the thread as well as the sewing material, the thread tensioning is adjusted to the required seam diagram with the tensioning nut (3). 4.5.1 Thread tightening spring – needle thread (Fig. 10) The tension of the rotary spring (1) can be modified after releasing the grub screw (2) and by turning at the headed bolt (3).

  • Page 25: Thread Tensioning – Reel Thread (Fig. 11)

    4.5.2 Thread tensioning – reel thread (Fig. 11) The leaf spring (2) regulates the bobbin thread tension. By turning the flat-head screw with catch (1), the leaf spring must be adjusted in such a way that when the bobbin is inserted, and the thread is correctly pulled under the leaf spring and the bobbin case is released, the latter, together with the bobbin drops slowly down.

  • Page 26: Adjusting The Upper Feed Path (Fig. 6)

    Fig. 12 4.6.1 Adjusting the upper feed path (Fig. 6) By activating the right pedal the upper feed path is enlarged, that is, multi-width can be worked in. By turning the knurled screw (1) to the left, multi-width can be worked in continuously.

  • Page 27: Stitch Depth

    Stitch depth By stitch depth one understand the distance of the highest plunger position to the outside radius of the needle, the plunger presses the sewing material from underneath in the stitch plate opening, so that the needle stitches into the fabric layers at the required depth.

  • Page 28: Digital Stitch Depth Display (Fig. 13)

    4.7.2 Digital stitch depth display (Fig. 13) The plunger height can be read off digitally from the stitch depth display. This makes finding earlier adjustments substantially easier by frequently changing sewing material thickness. The current supply is via a 9 V battery in the housing. To prevent premature discharging of the battery, the display should be switched off with the toggle switch at the housing during longer work breaks and when finishing work.

  • Page 29: Plunger Stop

    Plunger stop Frequently it is necessary when trimming fabric to sew over different fabric thicknesses at the same work piece, whereby the penetration depth of the needle, viewed from the upper side of the sewing material, must always remain the same. The plunger built- into our machines carries out this work automatically in cooperation with an adjustable plunger stop mounted on the stitch plate.

  • Page 30: Interval Gear

    Fig. 14 Interval gear The interval 1:2 or 1:3 guarantees an elastic seam almost free of marking with extremely difficult to work fabric qualities. The principle of the interval is based on the repeat of a different plunger height, which always remains the same with the individual penetrations of the needle. We use it with two different machine types: Needle lever with radial movement.

  • Page 31: Seam Lock

    4.10 Seam lock A t t e n t i o n ! Switch off machine electrically! A t t e n t i o n ! Danger of finger bruises in the area of pneumatically operated parts. General 4.10.1 The sewing cycle begins with the point tack by pressing the pedal forwards.

  • Page 32: Operating The Sewing Machine

    Operating the sewing machine C A U T I O N ! Danger of Injury! Take sufficient care during sewing and observe the sewing area! Otherwise there is a danger of injury through crushing and needle through-stitches. For machines with 2 pedals: push down the left pedal fully increases the top feed length (multi-width take-up).

  • Page 33: Inserting And Removing The Sewing Material

    Sewing The lining (with cl. 310D-R) or the fabric hem (with cl. 3100D-R half lined working) will be inserted in the left stitch plate opening standing up. In both cases it is advantageous to tack or to peg with hairpins.

  • Page 34: Hemming With Blind Stitch

    5.3.1 Hemming with blind stitch If there are no experience values available, the best thing to do is to carry out the following settings in sequence: Adjust required stitch length Adjust stitch depth Check plunger stop and if necessary adjust Adjust material guide (if available) Check presser plate lift.

  • Page 35: Problems During Sewing And Troubleshooting

    Problems during sewing and troubleshooting C A U T I O N ! Danger of Injury! Switch off the machine and ensure it is switched off by pressing the pedal for switching the motor. Otherwise there is a danger of injury through crushing and needle stitches.
  • Page 36 • Uneven stitching Possible causes: frequently worn or damaged needles height of needle plate or needle slide plate incorrectly adjusted unsuitable needle thickness (too thin) Remedy: Replace damaged needle. Check adjustments and correct if necessary. Use correct needle thickness. • Missing loops Possible causes: incorrectly adjusted or badly adjusted shuttle...
  • Page 37 • The sewing result does not come up to your expectations Possible causes: Damaged sewing tools or wear caused by improper use or natural wear following long use of machine. The machine has become mechanically misadjusted Unsuitable needle thickness (see “4.1 Needles and threads”) Unsuitable sewing thread (see “4.1 Needles and threads”).

  • Page 38: Incorrect Stitches (Fig. 16)

    Incorrect stitches (Fig. 16) The correct two-thread blind stitch is shown in Fig. 16. Incorrect stitches can occur if the needle does not take up the sewing material or does not carry out initial stitch or the hook does not take up the thread loop. Fig.

  • Page 39: Machine Maintenance

    Machine maintenance C A U T I O N ! Danger of Injury! Disconnect the machine from the mains and ensure that it is off by pressing the pedal for switching the motor. Otherwise there is a danger of injury through crushing and needle stitches.

  • Page 40: Variable Sewing Tools

    Variable sewing tools C A U T I O N ! Danger of Injury! Disconnect the machine from the mains and ensure that it is off by pressing the pedal for switching the motor. Otherwise there is a danger of injury through crushing and needle stitches.

  • Page 41: Needle Plate

    Cl. 310D-R Standard Optional 280.0265 280.0266 Needle plate 8,0 mm Opening 7,0 mm Opening Standard Optional 281.0125 281.0131 Plunger Standard 161.0157 Pressure spring 250g to 700g under 300g Fabric qualitiy Fabric and lining hems Fabric and lining hems 8 mm...
  • Page 42 Cl. 310D-R Optional 280.0267 Needle plate 10,0 mm Opening Optional 281.0126 Plunger Optional 161.0047 Pressure spring at 500g Fabric qualitiy only lining hems 8 mm Stitch formation (or 6 mm or 4 mm) under the hem edge Optional 182.0131 282.0320...
  • Page 43 Cl. 3100D-R Standard Optional 380.0265 380.0266 Needle plate 8,0 mm Opening 7,0 mm Opening Standard Optional 281.0125 281.0131 Plunger Standard 161.0157 Pressure spring 250g to 700g under 300g Fabric qualitiy Fabric and lining hems Fabric and lining hems 8 mm Stitch formation (or 6 mm or 4 mm) under the hem edge...
  • Page 44 Cl. 3100D-R Optional 280.0267 Needle plate 10,0 mm Opening Optional 281.0126 Plunger Optional 161.0047 Pressure spring at 500g Fabric qualitiy only lining hems 8 mm Stitch formation (or 6 mm or 4 mm) under the hem edge Optional 182.0131 282.0320 Feed dog BA_310D-R_3100D-R_A16-3_180117_en...

  • Page 45: Optional Extras

    Optional Extras The following equipment is additionally available for the machine and can be ordered from the works with the machine or as attachment: Plunger 181.0070 Side plunger, round shape (for delicate lining) Additional parts for hemming half lined jackets 386.0347 Additional parts for hemming half lined jackets (for cl.
  • Page 47 Und wir können noch mehr für Sie tun! Unser Lieferprogramm bietet für jede Branche und jegliche Anforderung genau die richtige Problemlösung. And we can do a lot more for you! Our range offers the correct problem solution for every branch and for all requirements. Für die Bekleidungs- Für die Schuh- Für die Polster-...
  • Page 48 Then phone, write or simply come and see us. You can have further information about our products at any time, or experience the Strobel machines live in our show room. We’re looking forward to meeting you! Spe zi a l ma s c hine n G m bH...
