ProForm PFBE1816.0 User Manual page 7

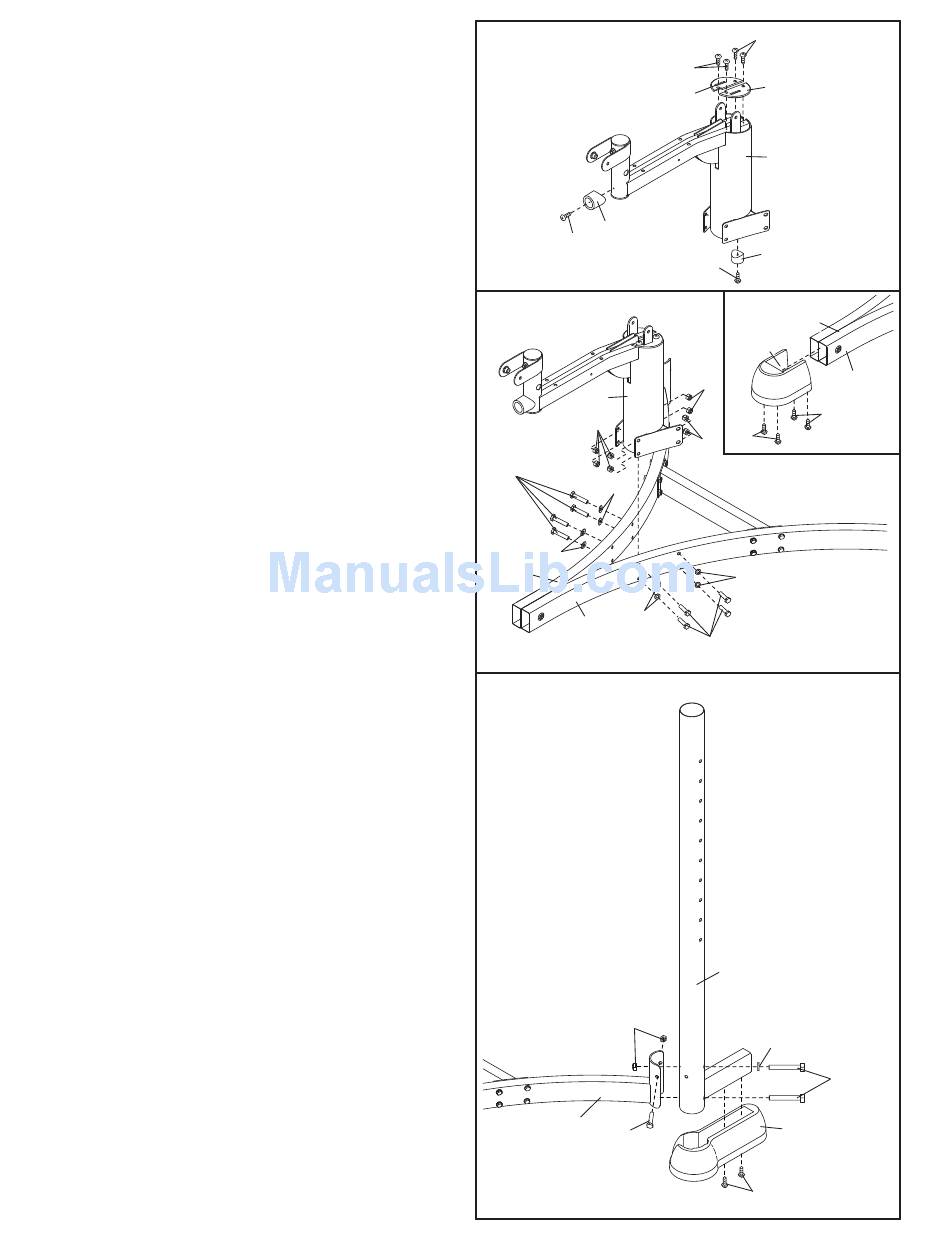

2. Attach the Left and Right Seat Frame Caps (42,
44) to the Seat Frame (6) with four M4 x 16mm
Screws (47).
Attach the Seat Frame Bumper (29) to the Seat
Frame (6) with an M4 x 16mm Screw (47).
Next, attach the Bumper (34) to the Seat Frame
with an M4 x 16mm Screw (47).
3. Attach the Seat Frame (6) to the Left and Right
Bases (1, 2) with eight M10 x 55mm Button
Bolts (53), eight M10 Washers (52), and eight
M10 Nylon Locknuts (49).
Tighten the Nylon Locknuts (49) used in
step 1 and this step.
See the inset drawing. Attach the Front Foot
(15) to the Left and Right Bases (1, 2) with four
M4 x 16mm Screws (47).
4. Attach the Left Upright (4) to the Left Base (1)
with three M10 x 98mm Button Bolts (56), an
M10 Washer (52), and two M10 Nylon Locknuts
(49).
Attach the Left Foot (28) to the Left Upright (4)
with two M4 x 16mm Screws (47).
Repeat this step for the other side of the
weight bench.
2
29
47
3
6
49
53
52
52
2
52
1
4
49
1
56
7
47
47
42
44
6
34
47
2
15
1
49
47
47
49
52
53
4
52
56
28
47
