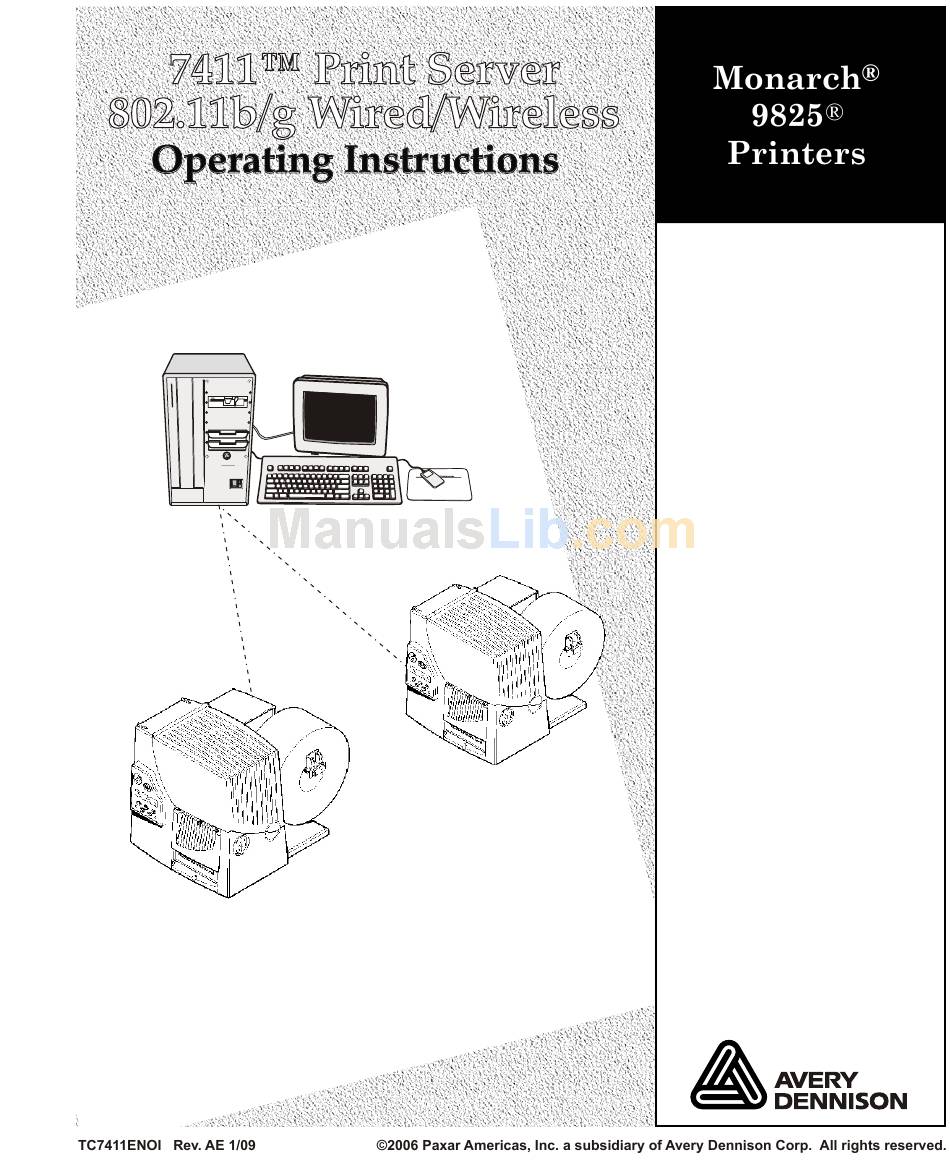

7411 print server 802.11b/g wired/wireless
Hide thumbs Also See for MONARCH 7411:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Avery Dennison MONARCH 7411

Summary of Contents for Avery Dennison MONARCH 7411

  • Page 2 Paxar shall not be liable for any omissions or inaccuracies. Any update will be incorporated in a later edition of this manual. 2006 Paxar Americas, Inc. a subsidiary of Avery Dennison Corp. All rights reserved. No part of this publication may be reproduced, transmitted, stored in a retrieval system, or translated into any language in any form by any means, without the prior written permission of Paxar Americas, Inc.

  • Page 3: Table Of Contents

    T A B L E O F C O N T E N T S GETTING STARTED ...1-1 Overview ...1-1 System Requirements ...1-2 Network Protocols Supported ...1-2 Checking the Print Server Hardware ...1-3 Verifying Successful Installation ...1-4 Sample Test Page ...1-5 CONFIGURING THE 802.11B/G AND IP SETTINGS ...2-1 Configuring the Print Server ...2-1 Before You Begin ...2-1...
  • Page 4 USING THE WEB INTERFACE ...4-1 Logging In ...4-2 Configuring the Printer ...4-3 Configuring the Print Port Settings ...4-4 Configuring Print Services ...4-5 Setting NetWare Parameters...4-6 Changing TCP/IP Settings ...4-7 Configuring PrintraNet ...4-8 Changing Wireless Settings ...4-9 Configuring Alerts and Traps ... 4-10 Receiving An Alert...
  • Page 5 TROUBLESHOOTING ...5-1 General Troubleshooting Information ...5-1 Troubleshooting Wireless Configuration Problems...5-5 Troubleshooting Network Configuration ...5-6 Technical Support...5-6 TELNET CONSOLE COMMANDS...6-1 Help Commands ...6-3 General Commands ...6-5 802.11b/g Wireless Commands ...6-8 TCP/IP Commands ... 6-13 SNMP Commands ... 6-15 SPECIFICATIONS ... A-1 802.3 Specifications ...

  • Page 7: Getting Started

    G E T T I N G S T A R T E D The Monarch 7411 Print Server lets you communicate with the Monarch 9825 printer on a wired Ethernet 802.3 network, or on an 802.11b or 802.11g wireless network. 802.11b/g refers to 802.11b and 802.11g in this manual.

  • Page 8: System Requirements

    If you are using TCP/IP (recommended for Windows Networks) and are not connected to a server that automatically assigns your IP address, you need to set the printer in Static mode and assign a unique IP Address for the wireless print server (for example: 192.168.1.14) and a subnet mask.

  • Page 9: Checking The Print Server Hardware

    The print server comes preinstalled and tested in your printer. Do not plug any cables into the parallel port when using the print server. A printer with this print server cannot use the parallel port. However, the serial port is still active.

  • Page 10: Verifying Successful Installation

    Antenna 1-4 Ethernet Operating Instructions Press this button down for less than 5 seconds to print a test page on the printer. The test page shows the current wireless and network settings of the print server. See information. If the test page does not print, see Chapter 5, “Troubleshooting.”...

  • Page 11: Sample Test Page

    Sample Test Page The test page is best displayed using 4” wide by 6” long labels. If the label is too small, some information may print outside the label edges. PAXAR - - - - - - - - - - - - - M on a r c h N e t P r i nt S er v e r S t a t u s - - - - - - - - - - - - - M o n a r c h N e t N e t w o r k A da pt er - P LU S Firmw are F W V er .
  • Page 12 1-6 Ethernet Operating Instructions...

  • Page 13: Configuring The 802.11B/G And Ip Settings

    Note: If your wireless adapter includes an option for 802.11 Ad-Hoc, you must select it if you need to use the printer in Ad-Hoc mode. If it does not include this option, select Ad-Hoc Computer-to-Computer, or whatever mode your adapter uses to communicate on a wireless network without an access point.

  • Page 14: Installing The Software

    IP address, and hardware (Ethernet) address. It might take a minute or two for the printer server to show up, especially if you have a large wireless network. The default name of the print server is PXRxxxxxx, where xxxxxx is the last 6 digits of the Ethernet address (for example, PXR08B2C7).
  • Page 15 DHCP (Refer to your DHCP server documentation for details). This is because when you configure your printer port, it goes to a static IP address. Configuring the 802.11b/g and IP Settings 2-3...
  • Page 16 Ethernet Operating Instructions...

  • Page 17: Management Methods

    M A N A G E M E N T M E T H O D S There are a variety of ways to configure and monitor the print server. These methods are: Web browser, NetMgr, MonarchNet Console, HP JetAdmin, HP Web JetAdmin, or Telnet. For Telnet/console mode information, see Chapter 6, M o n a r c h N e t C o n s o l e This is a command-line oriented console that contains features not available...

  • Page 18: Microsoft Windows Network Configuration

    U N I X N e t w o r k C o n f i g u r a t i o n The print server appears to the network as a UNIX host computer with a unique IP address running the line printer daemon (LPD) protocol. As a result, any host computer that supports the Berkeley remote-lpr command can spool jobs to the print server without the need for any special software on the host computer.

  • Page 19: Berkeley Unix Host Configuration

    /etc/printcap file (you will still need to edit the /etc/hosts file). Enter the print server's service name (MONxxxxxx_P1) as the name of the printer (refer to the print server self-test for the exact name of this service), and enter the name of the print server that you assigned in the /etc/hosts file as the remote host name;...

  • Page 20: Sun Solaris Configuration

    3. Create the spool directory: The lpd spool directory is usually located in the /usr/spool directory. To create a new spool directory, use the mkdir command; for example: mkdir /usr/spool/lpd/MonarchPrinter 4. Print using the standard lpr command: lpr –PMonarchPrinter 5. For AT&T based UNIX systems, such as SCO, use the standard lp command: lp –dMonarchPrinter Sun Solaris Configuration...
  • Page 21 7. Use the Printer Manager in the Admintool utility under Open Windows as follows: Select Edit Select Add Select Add Access to Remote Printer At the PrinterName prompt, type any name for the print queue At the Printer Server prompt, type:...

  • Page 22: Hp/Ux Configuration

    Check the box next to Remote Printer is on BSD System. You may accept the default values for the remaining items. 10. Click OK to configure the printer. 11. You should now be able to print using the lp -d command with the printer name. Notes: ♦...

  • Page 23: Ibm Aix Configuration

    /etc/hosts file, use the name of the print server that you specified in that file). ♦ Name of queue on remote printer BINARY_P1 for binary files or TEXT_P1 for text files). ♦ Name of device to add (user selectable; for example lp0).

  • Page 24: Web Browser

    W e b B r o w s e r This utility allows the user to configure the print server with a standard web browser like Microsoft® Internet Explorer or Mozilla Firefox®. No additional software is needed on the system. It can be used on any system that supports web browser capabilities.

  • Page 25: Using The Web Interface

    The printer should be turned on and ready to receive data. It may take a minute or more before a wireless connection is associated between the print server and the access point. When the printer is connected to an access point, you see Print Mode Ready The printer is connected and ready to receive data.

  • Page 26: Logging In

    L o g g i n g I n 1. Start your Web browser. 2. Type in your printer’s IP address and press Enter. For example, 192.0.0.192. 3. From the side menu, click Login. 4-2 Ethernet Operating Instructions...

  • Page 27: Configuring The Printer

    Click the Paxar link if you need to contact us. C o n f i g u r i n g t h e P r i n t e r You can configure the printer using your Web browser. Only configure the settings required for your network/printer.

  • Page 28: Configuring The Print Port Settings

    3. Click the reset link at the bottom of the screen. The Reset Server screen appears. 4 . Click Submit and wait five seconds for the printer to reset. Even though you submitted your changes on the previous screen, they do not take effect until you reset the printer.

  • Page 29: Configuring Print Services

    4. Click the reset link at the bottom of the screen. The Reset Server screen appears. 5. Click Submit and wait five seconds for the printer to reset. Even though you submitted your changes on the previous screen, they do not take effect until you reset the printer.

  • Page 30: Setting Netware Parameters

    4. Click the reset link at the bottom of the screen. The Reset Server screen appears. 5. Click Submit and wait five seconds for the printer to reset. Even though you submitted your changes on the previous screen, they do not take effect until you reset the printer.

  • Page 31: Changing Tcp/Ip Settings

    5. Click the reset link at the bottom of the screen. The Reset Server screen appears. 6. Click Submit and wait five seconds for the printer to reset. Even though you submitted your changes on the previous screen, they do not take effect until you reset the printer.

  • Page 32: Configuring Printranet

    4. Click the reset link at the bottom of the screen. The Reset Server screen appears. 5. Click Submit and wait five seconds for the printer to reset. Even though you submitted your changes on the previous screen, they do not take effect until you reset the printer.

  • Page 33: Changing Wireless Settings

    3. Click the reset link at the bottom of the screen. The Reset Server screen appears. 4. Click Submit and wait five seconds for the printer to reset. Even though you submitted your changes on the previous screen, they do not take effect until you reset the printer.

  • Page 34: Configuring Alerts And Traps

    The printer also contains the minimum set required to be compliant with MIB version 2.0 (RFC 3805). Email Alerts To set up an email alert when the printer goes offline, has a paper jam, or other error: From the side menu, click Alerts and Traps.
  • Page 35 5. Click the reset link at the bottom of the screen. The Reset Server screen appears. 6. Click Submit and wait five seconds for the printer to reset. Even though you submitted your changes on the previous screen, they do not take effect until you reset the printer.

  • Page 36: Receiving An Alert

    Receiving An Alert When the printer goes offline, has a paper jam, or any other error that you selected notification for, a similar email appears in the specified User’s inbox: The text of the email follows: MonarchNet2 Printer Alert!!! Prn IP:192.0.0.192...

  • Page 37: Snmp Ip Traps

    4. Click the reset link at the bottom of the screen. The Reset Server screen appears. 5. Click Submit and wait five seconds for the printer to reset. Even though you submitted your changes on the previous screen, they do not take effect until you reset the printer.

  • Page 38: Snmp Netware Traps

    4. Click the reset link at the bottom of the screen. The Reset Server screen appears. 5. Click Submit and wait five seconds for the printer to reset. Even though you submitted your changes on the previous screen, they do not take effect until you reset the printer.

  • Page 39: Changing The Passwords

    C h a n g i n g t h e P a s s w o r d s 1. You can change the network access password, network update password, configure network security, IP access, or protocol, print a test page, access the console, or update firmware from the Web Admin Configuration screen.

  • Page 40: Setting The Network Card Access Password

    When set, the network card access password allows you to view the Web interface and the remote console. The default is access. The password is case-sensitive and stored in the printer’s flash memory. Make a note of the password if you change it.

  • Page 41: Setting The Network Card Update Password

    Setting the Network Card Update Password When set, the network card update password allows you to change variables in the Web interface and the remote console. 1. From the side menu, click Admin. The Web Admin Configuration screen appears. 2. Click Configure Network Card Update Password. 3.

  • Page 42: Configuring Network Protocols

    6. Click the reset link at the bottom of the screen. The Reset Server screen appears. 7. Click Submit and wait five seconds for the printer to reset. Even though you submitted your changes on the previous screen, they do not take effect until you reset the printer.

  • Page 43: Controlling Ip Access

    C o n t r o l l i n g I P A c c e s s 1. You can limit which remote hosts are able to access the printer by setting up an IP address range. 2. From the side menu, click Admin. The Web Admin Configuration screen appears.

  • Page 44: To Remove Hosts

    3. Click the reset link at the bottom of the screen. The Reset Server screen appears. 4. Click Submit and wait five seconds for the printer to reset. Even though you submitted your changes on the previous screen, they do not take effect until you reset the printer.
  • Page 45 5. Click the reset link at the bottom of the screen. The Reset Server screen appears. 6. Click Submit and wait five seconds for the printer to reset. Even though you submitted your changes on the previous screen, they do not take effect until you reset the printer.

  • Page 46: Printing A Test Page

    P r i n t i n g a T e s t P a g e 1. You can use the Web interface to send a test page to the printer. 2. From the side menu, click Admin. The Web Admin Configuration screen appears.

  • Page 47: Updating Firmware

    U p d a t i n g F i r m w a r e You can update the printer’s firmware. Make sure the Resident (Boot Loader) is version 2.3 or greater. 1. From the side menu, click Admin. The Web Admin Configuration screen appears.

  • Page 48: Basic Security Configurations

    B a s i c S e c u r i t y C o n f i g u r a t i o n s There are two main decisions to be made when choosing wireless security: encryption method and authentication protocol. The encryption method determines the algorithm used to encrypt the message.
  • Page 49 Type RADIUS Protocol Enterprise LEAP PEAP* PAP or MSCHAPv2 TTLS EAP- FAST Personal *PEAP This is only for server-side certificates. *Optional Leaving the Certificate Root Key and the Certificate CN (common) names blank, no validation of the host certificate is performed.
  • Page 50 See the following table of acceptable combinations: Authentication Open Static Shared LEAP PEAP Dynamic EAP-FAST TLS* TTLS Load the local key before enabling TLS. 4-26 Ethernet Operating Instructions Encryption WPA, WPA (TKIP), WPA2...

  • Page 51: Troubleshooting

    1. Is the printer online and does it have supplies? 2. If the printer is working correctly, test the connection between the printer and the print server by pushing the test button on the back of the printer for less than five seconds.
  • Page 52 After printing the test label, change your supply type to your previous setting. If a label does not print, check the printer's display to see if it shows a receiving status. If so, press Escape to exit receiving mode. Once you see “Online Ready”...
  • Page 53 Ping the printer. If you can ping the printer, it is at least "seen" on the network. If you cannot ping the printer, then ping every device in the path to the printer - access points, routers, etc. If you can ping every device but the printer, the printer needs to be turned off and back on.
  • Page 54 The printer responds with Note: The J must be capital. If you do not get any response, the printer may have an open session to some other connection. Either terminate the other connection or turn off the printer and turn it back on.

  • Page 55: Troubleshooting Wireless Configuration Problems

    Your computer’s wireless adapter and/or access point should be configured to match your print server. The print server should be in range of the printer (90 meters or 300 feet) and your PC and away from metal objects and other devices with radio signals (Bluetooth®, 2.4 GHz cordless phones, and microwaves).

  • Page 56: Troubleshooting Network Configuration

    T r o u b l e s h o o t i n g N e t w o r k C o n f i g u r a t i o n ♦ If you are using TCP/IP, your computer and the print server should be on the same IP segment or can reach each other with a PING command from the host.

  • Page 57: Telnet Console Commands

    T E L N E T C O N S O L E C O M M A N D S Use this chapter to configure the print server using Telnet. You must have a basic understanding of Telnet commands. For initial setup, do not use Telnet.
  • Page 58 To view the current wireless settings, type sh en (show wireless settings) or sh nw (show network settings) and press Enter: WiFi Mode = INFRASTRUCTURE WiFi SSID: ABC1234 Speed = 54 International Roaming: Flexible Dynamic Frequency Selection: Unsupported Regulatory Domain = USI WiFi FW Ver = 2.13.10.0 LMAC, 2.12.18.0 UMAC AP density = LOW Authentication type= OPEN SYSTEM...

  • Page 59: Help Commands

    H e l p C o m m a n d s For help at any time, type “Help” and a list of available commands appears. The Help command builds on itself, because for each command you type, more details appear for each option. Syntax: Help set DEFAULT...
  • Page 60 Syntax: Help set ip IP LPD/TCP Parameters ADdress aa.bb.cc.dd [EN/DI] BAnner [EN/DI] CHKSUM [EN/DI] BOot ENable/DISable FTIme [EN/DI] [EN/DI] HTTP [EN/DI] KEepalive n [EN/DI] MEthod <type> PIng aa.bb.cc.dd PRObe [EN/DI] RANge [EN/DI/ALL] aa.bb.cc.dd {MAx ee.ff.gg.hh} RARp flags nn REtry [EN/DI] ROuter aa.bb.cc.dd SUbnet aa.bb.cc.dd [EN/DI]...

  • Page 61: General Commands

    G e n e r a l C o m m a n d s From the list of commands, the brackets - [] indicate to pick one of the options listed, the items inside curly braces - {} are optional and do not need to be specified.
  • Page 62 SET DEFAULT Sets print server to factory defaults. SET LOAD [EN/DI] Enables or disables firmware reload after exit. SET LOAD HOst <name> Sets node name of boot host (NetWare firmware load). SET LOAD IP aa.bb.cc.dd Sets IP address of load host (TCP/IP firmware load). SET LOAD SOftware <filename>...
  • Page 63 SHow LOAd Shows the print server’s firmware update parameters. SHow PORt <name> STA Shows the current port status. SHow SERVEr Shows the server parameters. SHow SERVEr COunters Shows the server statistics. SHow SERVEr QUeue Shows the print server internal queue. SHow TEstpage Prints a test page.
  • Page 64 8 0 2 . 1 1 b / g W i r e l e s s C o m m a n d s In the following commands, EN and NW (network settings) are interchangeable. CLear EN SSid Clears the SSID, so the server connects to any access point. SET EN Sets 802.11b/g Wireless Settings.
  • Page 65 SET EN INAP [PAP/MSCHAP_V2] Sets the EAP inner authentication protocol. SET EN IROAM [DISable/STRICT/FLEXible] Controls whether the radio frequencies are set based on the radio configuration or from its access point. Disabled uses the radio defaults. When in Ad-Hoc mode, you SET EN REGDOMain must set the region of operation.
  • Page 66 SET EN REGDOMain <countrycode> Sets the region of operation for the print server using the following table. The list of supported countries varies based on the radio type (802.11b or 802.11b/g). Country Description Code ALBANIA ALGERIA ARGENTINA ARMENIA AUSTRIA AUSTRALIA AZERBAIJAN BAHRAIN BELARUS...
  • Page 67 Country Description Code DENMARK DOMINICAN REPUBLIC ECUADOR EGYPT EL SALVADOR ESTONIA FINLAND FRANCE GEORGIA GERMANY GREECE GUATEMALA HONDURAS HONG KONG HUNGARY ICELAND INDIA INDONESIA IRAN, ISLAMIC REPUBLIC OF IRELAND ISRAEL ITALY JAPAN JORDAN KAZAKHSTAN KENYA KOREA, PEOPLE'S REPUBLIC KOREA, REPUBLIC KUWAIT Country Description...
  • Page 68 SET EN SPeed <1/2/5.5/6/9/11/12/18/24/48/54> Sets 802.11b/g wireless speed in megabits per second (Mpbs). SET EN SSID “<ssid>” Sets 802.11b/g wireless SSID. Use quotes if there is a space in SSID. This is case sensitive. SH EN STATS Shows the network I/O statistics. SET EN WEP [DI/64/128] Sets wired equivalent privacy encryption level to disabled, 64-bit, or 128-bit.

  • Page 69: Tcp/Ip Commands

    T C P / I P C o m m a n d s SET IP [EN/DI] Selects whether to use IP-based protocols. SET IP ACcess [EN/DI/ALL] aa.bb.cc.dd [Mask ee.ff.gg.hh] Allows or prevents specified IP address from accessing print server. SET IP ADdress Sets IP address of print server.
  • Page 70 SET IP PRObe [EN/DI] Enables or disables the TCP connection probe. SET IP RArp nn 0 Both 1 no subnet 2 no router 3 neither Default (0) - IP address is set with subnet mask and router that is the same address as host.

  • Page 71: Snmp Commands

    S N M P C o m m a n d s CLear SNMP CONtact <string> Removes SNMP SysContact. CLear SNMP LOCation <string> Removes SNMP SysLocation. SET SNMP GETCOMM Gets SNMP community. SET SNMP SETCOMM1 <string> or SET SNMP SETCOMM2 <string> Set SNMP community 1 or community 2 name.
  • Page 72 6-16 Ethernet Operating Instructions...

  • Page 73: Specifications

    S P E C I F I C A T I O N S Link Layer: 802.3 or optional 802.11b/g TCP/IP Protocols: Passthru BOOTP DHCP RARP LPD/LPR Telnet RSH or REMSH (remote shell) SNMP NetWare HP Jet Admin 8 0 2 . 3 S p e c i f i c a t i o n s Communication 10 Mbps or 100 Mbps Rate:...

  • Page 74: Options

    O p t i o n s Wireless 802.11b/g communications are available. However, check with International Sales for an approved list of countries or regions where these devices can be used. A-2 Ethernet Operating Instructions...

  • Page 75: Glossary

    G L O S S A R Y Absolute Pathname The full path of a file, including the computer system and any directories or subdirectories. For example, c:\program files\monarch softw are\mpcl toolbox\9855.phu Access Point An interface between a wireless network and a wired network.
  • Page 76 Channel or You can select which channel your network devices use to RF Channel communicate. All devices must be on the same channel to communicate in Ad-Hoc mode. Other radio devices such as Bluetooth® wireless devices, microwave ovens, or 2.4- GHz cordless phones may operate/interfere if they are on the same channel as your network.
  • Page 77 NIC converts data from the device into the form transmitted or received from the network Node A processing location on a network. The location can be a workstation, computer, or printer. Each Node has a unique MAC address. Open This allows any device to authenticate and then attempt to Authentication communicate with the access point.
  • Page 78 50, printing performance could be affected. To improve the signal strength, try moving the printer closer to the access point and away from other radio devices such as Bluetooth® wireless devices, microwave ovens, or 2.4-GHz cordless phones.
  • Page 79 SSID or A unique identifier that must match for all nodes on a Service Set subnetwork to communicate with each other. It consists of Identifier up to 32 characters (any printable character, including spaces). If using the space character, it must be enclosed in quotation marks.
  • Page 80 WEP or A security protocol for wireless local area networks. WEP Wired Equivalent was designed to provide the same level of security as that Privacy of a wired network, which is inherently more secure than a wireless network because wired networks are easily protected against unauthorized access.

  • Page 81: Index

    3-11, 3-13, 3-14 protocols 1-2 page test 1-6 password 3-2 changing 3-16, 3-17, 3-18 setting 3-16, 3-17, 3-18 PEAP authentication 3-28 printer settings 3-3, 3-4, 3-5, 3-6, 3-8, 3- 19, 3-20 protocols 1-2 authentication 3-28 requirements system 1-2 Index i...
  • Page 82 3-22 server settings 3-3, 3-4, 3-5, 3-6, 3-8, 3- 19, 3-20 setting password 3-16, 3-17, 3-18 settings printer 3-3, 3-4, 3-5, 3-6, 3-8, 3-19, 3-20 security 3-22 server 3-3, 3-4, 3-5, 3-6, 3-8, 3-19, 3-20 SNMP 3-14, 3-15 TCPIP 3-7...
