ProForm 985 Rt User Manual page 8

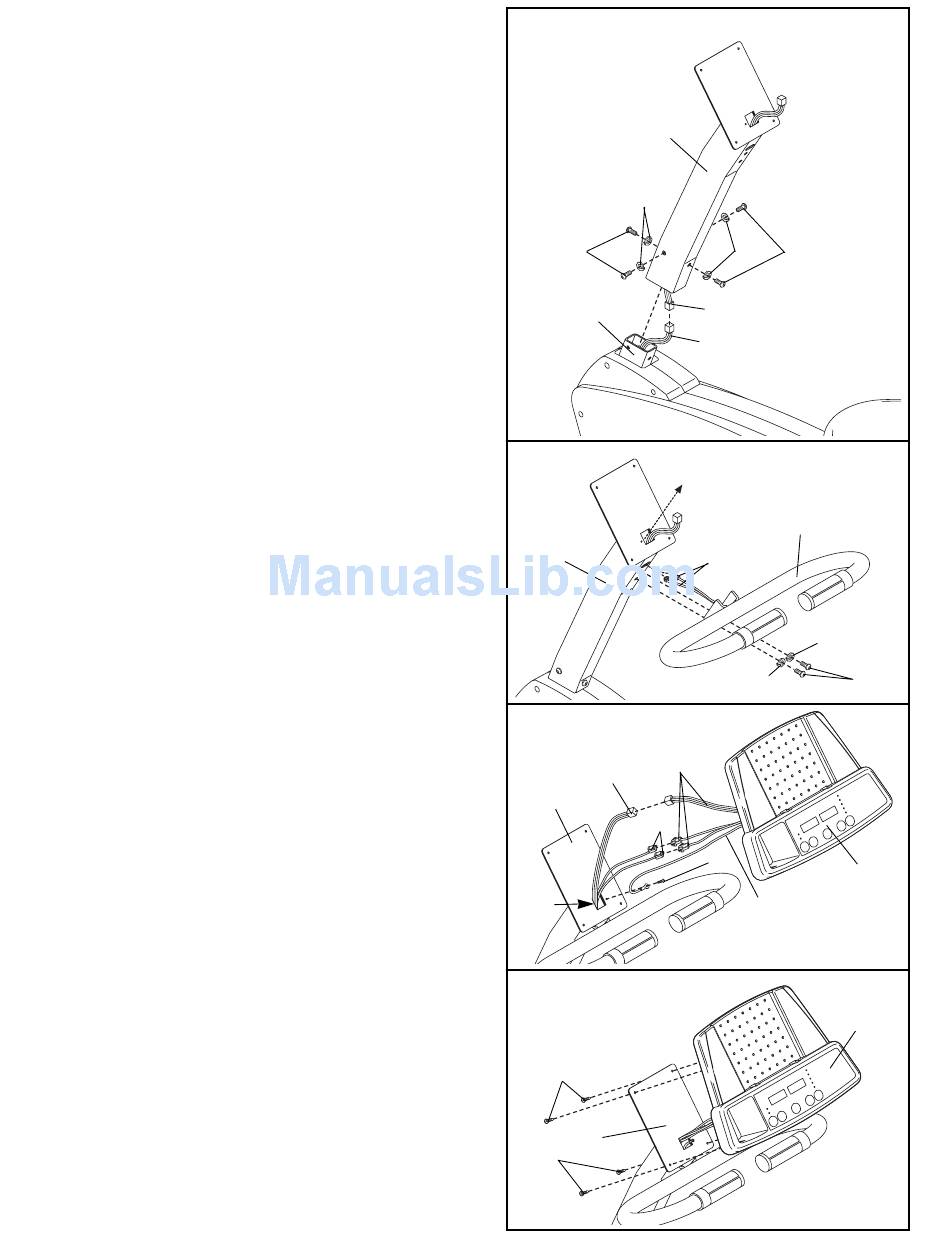

8. While another person holds the Upright (6) in the
position shown, connect the Extension Wire (18) to
the Wire Harness (69).
Next, carefully slide the Upright (6) onto the Frame
(1). Be careful to avoid pinching the wires.
Loosely thread four M10 x 25mm Button Screws
(74) with M10 Split Washers (17) into the Upright
and the Frame. Then, firmly tighten all four Button
Screws.
9. While another person holds the Handlebar (16) near
the Upright (6), route the two Pulse Wires (22) into
the Upright and out of the hole at the top of the
Upright.
Next, attach the Handlebar (16) to the Upright (6)
with two M10 x 25mm Button Screws (74) and two
M10 Split Washers (17). Make sure that the Pulse
Wires (22) are not pinched between the Handle-
bar and the Upright.
10. Hold the Console (9) near the Upright (6) as shown.
Identify the green console ground wire and attach it
to the Upright with a Ground Screw (82). Make sure
that the console ground wire connector is pointed
toward the center of the indicated hole as shown.
Next, connect the Extension Wire (18) and the two
Pulse Wires (22) to the corresponding wires on the
Console (9). Make sure that the wires are not tan-
gled around each other.
11. Attach the Console (9) to the Upright (6) with the
four Console Screws (20). Make sure that no
wires are pinched between the Console and the
Upright.
8
17
74
1
9
6
10
Console
18
6
Hole
11
20
6
20
8
6
17
74
18
69
16
22
17
17
Wires
22
82
Console
Ground
Wire
74
9
9
