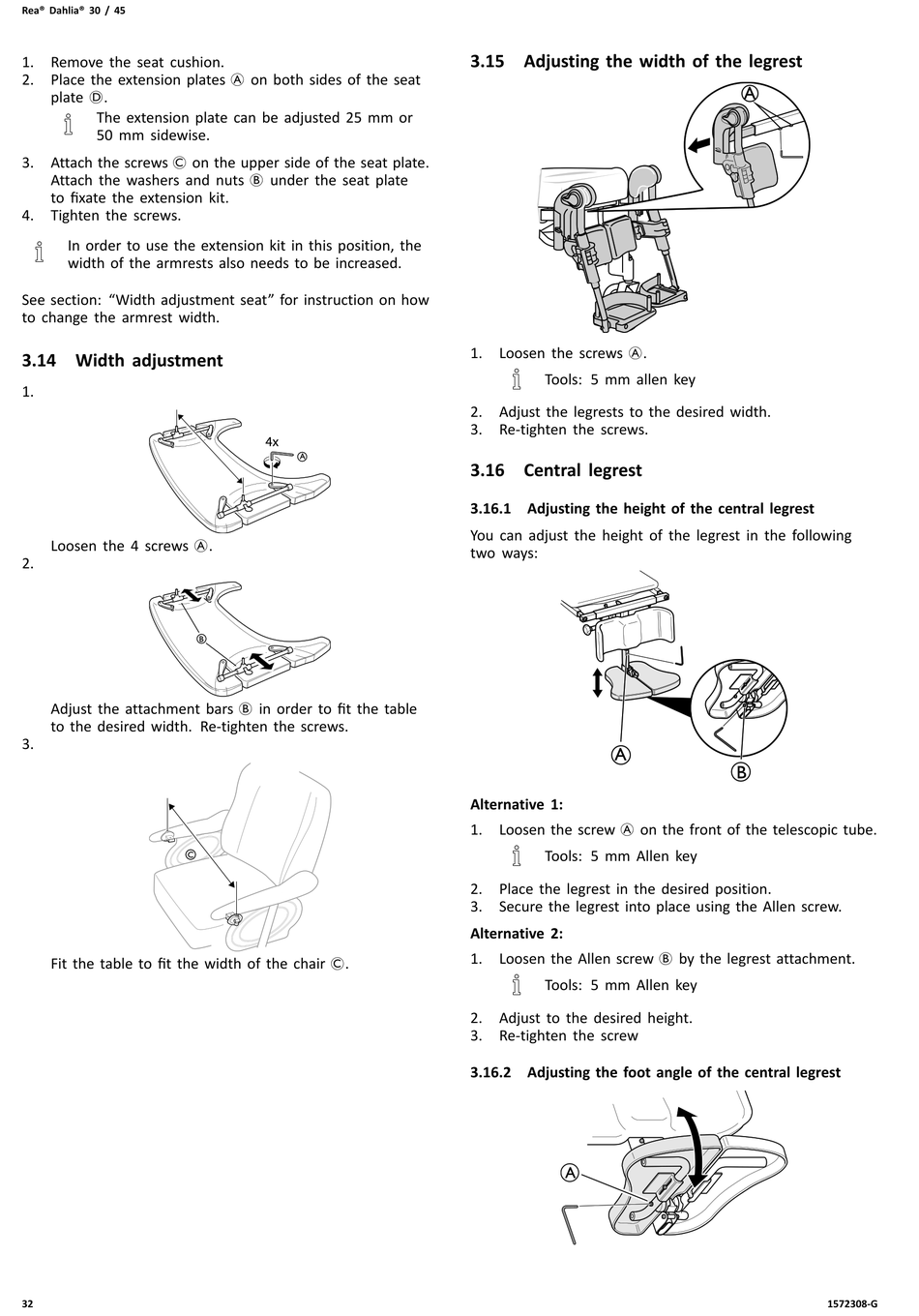

Rea® Dahlia® 30 / 45
1. Remove the seat cushion.
2. Place the extension plates A on both sides of the seat
plate D.
The extension plate can be adjusted 25 mm or
50 mm sidewise.
3. Attach the screws C on the upper side of the seat plate.
Attach the washers and nuts B under the seat plate
to fixate the extension kit.
4. Tighten the screws.
In order to use the extension kit in this position, the
width of the armrests also needs to be increased.
See section: "Width adjustment seat" for instruction on how
to change the armrest width.

3.14 Width adjustment

1.
Loosen the 4 screws A.
2.
Adjust the attachment bars B in order to fit the table
to the desired width. Re-tighten the screws.
3.
Fit the table to fit the width of the chair C.
32
3.15 Adjusting the width of the legrest
1. Loosen the screws A.
2. Adjust the legrests to the desired width.
3. Re-tighten the screws.
A
3.16 Central legrest
3.16.1 Adjusting the height of the central legrest
You can adjust the height of the legrest in the following
two ways:
Alternative 1:
1. Loosen the screw A on the front of the telescopic tube.
2. Place the legrest in the desired position.
3. Secure the legrest into place using the Allen screw.
Alternative 2:
1. Loosen the Allen screw B by the legrest attachment.
2. Adjust to the desired height.
3. Re-tighten the screw
3.16.2 Adjusting the foot angle of the central legrest
Tools: 5 mm allen key
A
Tools: 5 mm Allen key
Tools: 5 mm Allen key
A
A
B
1572308-G
