Summary of Contents for Invacare Action 3 NG

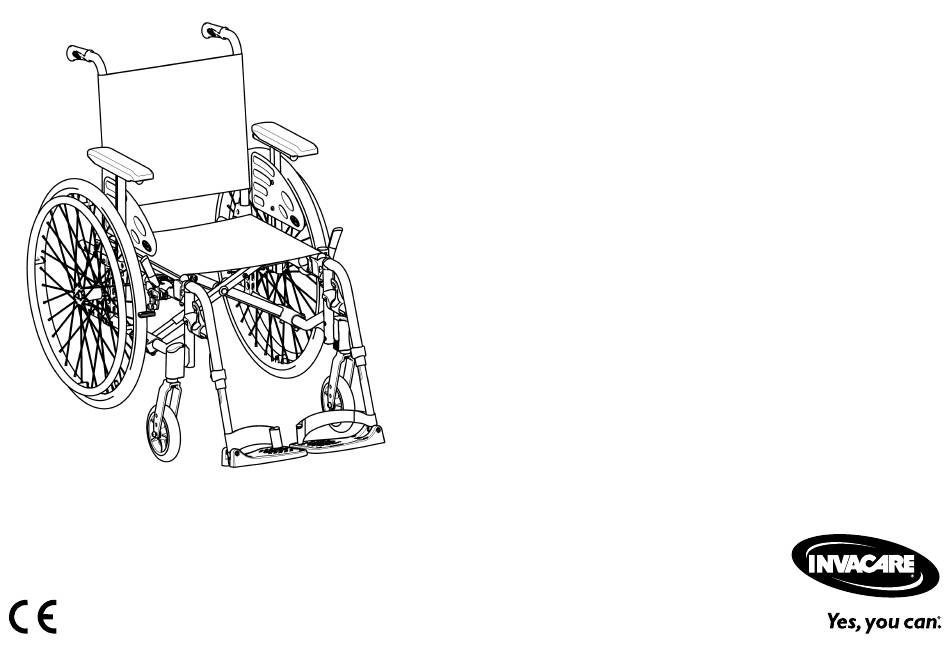

  • Page 1 Invacare® Action 3 NG en Medium active wheelchair User Manual This manual MUST be given to the user of the product. BEFORE using this product, this manual MUST be read and saved for future reference.
  • Page 2 All rights reserved. Republication, duplication or modification in whole or in part is prohibited without prior written permission from Invacare Corporation. Trademarks are identified by ™and ®. All trademarks are owned by or licensed to Invacare Corporation or its subsidiaries unless otherwise noted.
  • Page 3: Table Of Contents

    Contents 3.7.4 Armrest, foldable and removable ....25 3.7.5 Armrest, height adjustable, foldable and removable ....... . 25 3.8 Leg rests .
  • Page 4 6.7 Negotiating Ramps and Slopes..... 52 6.8 Stability and balance when seated ....54 7 Transport .
  • Page 5: General

    For more information about the product, for example Business in the respective countries. product safety notices and product recalls, contact your Invacare distributor. See addresses at the end of this Warranty claims can only be made through the provider document.
  • Page 6: Limitation Of Liability

    Invacare® Action 3 NG 1.4 Limitation of Liability 1.6 Service Life Invacare accepts no liability for damage arising from: The expected service life of this product is five years when used daily and in accordance with the safety instructions, •...
  • Page 7: Safety

    Safety 2 Safety WARNING! Risk due to driving style being unsuitable for the conditions 2.1 Safety information There is a risk of skidding on wet ground, gravel or uneven terrain. This section contains important safety information for the – Always adjust your speed and driving style to protection of the wheelchair user and assistant and for safe, the conditions (weather, surface, individual trouble-free use of the wheelchair.
  • Page 8 – Do not expose the wheelchair to strong sunlight – Invacare strongly recommend the use of before use. anti-tipper (available as an option) when using – Before usage, check all components that your backposts with additional load.
  • Page 9: Safety Devices

    – Only use combinations with other devices The identification label (1. or 2.) is attached to the frame of which are allowed by Invacare. Contact your your wheelchair and gives the following information: authorized provider for more information.
  • Page 10 Invacare® Action 3 NG Non-locking side parts warning label Manufacturer’s address Date of manufacture Do not lift the wheelchair by non-locking side parts. Product description Seat width Posture belt information label Reference number The posture belt has the good length, when Serial number there’s just sufficient space for a flat hand...
  • Page 11 Safety WARNING Symbol This wheelchair is not configured for passenger transport in a motor vehicle. This symbol is attached to the frame close to the identification label. 1608467-E...
  • Page 12: Product Overview

    Invacare® Action 3 NG The wheelchair may be used indoors and outdoors on level 3 Product Overview ground and accessible terrain. 3.1 Product Description Indications This is a medium active wheelchair with crossbar folding • Considerable to complete impairment of mobility due mechanism and swing-away leg rests.
  • Page 13: Main Parts Of The Wheelchair

    Product Overview 3.3 Main parts of the wheelchair A Push handle B Backrest C Rear wheel with handrim D Parking brake E Front fork with castor F Leg rests, swiveling G Footrest H Frame I Seat J Armrest The equipment of your wheelchair may differ from the diagram as each wheelchair is manufactured individually to the specifications in the order.
  • Page 14: Parking Brakes

    Invacare® Action 3 NG 3.4 Parking brakes CAUTION! Risk of pinching or crushing The parking brakes are used to immobilize the wheelchair There may be a very small gap between the rear when it is stationary to prevent it from rolling away.
  • Page 15: Backrest

    Product Overview The lever of the push handle can be folded back to WARNING! facilitate transfers. To do so, pull up the lever and Risk of injury to the assistant and damage to fold it backwards. the wheelchair Tilting the chair with a heavy user can hurt the assistant's back and damage the chair.
  • Page 16: Backrest Cover Height

    2. Loosen the hook and loop strips B on the rear of the backwards causing injury. backrest cover by simply pulling on them. – Therefore, Invacare strongly recommend the 3. Tighten or loosen the strips as required then reattach use of anti-tippers (available as an option) them.
  • Page 17: Fixed Backrest

    Risk of tipping Do not move the wheelchair when the backrest is in reclined position. – Invacare strongly recommend the use of anti-tippers (available as an option) when the backrest is in reclined position . Folding and unfolding the backrest 1.
  • Page 18: Angle Adjustable Backrest (-15°/+15°)

    3. Alternatively, turn 5 mm Allen key under clockwise to obtain a positive angle. 4. Ensure both adjustments to the desired angle are equal on both sides. Invacare recommends that the backrest angle adjustment is carried out by a qualified technician. 1608467-E...
  • Page 19: Backbrace

    Do not move the wheelchair when the backrest to the backrest upholstery and must always be in position is in reclined position. on recliner versions. – Invacare strongly recommend the use of anti-tippers (available as an option) when the CAUTION! backrest is in reclined position .
  • Page 20 Invacare® Action 3 NG Unfolding the backbrace Folding backbrace for the backrest 1. Fold the backbrace B upwards. An optional folding backbrace is available to increase the 2. Align the backbrace B with the push handle and push it rigidity of the backrest on wheelchairs with large back down on the hand screw A.
  • Page 21: Push Handles

    Product Overview 3.5.9 Push handles CAUTION! If the knob is not correctly tightened, the push IMPORTANT! handle could accidentally come off the backrest – Always check the push handles before using tube while pushing it upwards. the wheelchair, as to whether the hand grips –...
  • Page 22: Mudguard

    Invacare® Action 3 NG Adjusting the height CAUTION! If the knob is not correctly tightened, the push 1. Loosen the screw B with 10 mm spanner in the groove handle could accidentally come off the backrest C of the armrest tube.
  • Page 23: Tubular Armrest, Height-Adjustable, Swiveling

    Product Overview 3.7.1 Tubular armrest, height-adjustable, swiveling 3.7.2 Armrest, stepless height adjustable, removable Removing Removing 1. Apply the parking brake on both sides. 2. Previously press on the locking mechanism A located 1. Raise the tubular armrest and pull it upwards out of at the bottom of the armrest vertical bracket (if so the holder.
  • Page 24: Armrest, Height Adjustable, Removable

    Invacare® Action 3 NG Adjusting the height Adjusting the armpad height 1. Loosen the screw B with 5 mm Allen key in the groove 1. Loosen the screw B with 5 mm Allen key at top of the C of the armrest tube.
  • Page 25: Armrest, Foldable And Removable

    Product Overview 3.7.4 Armrest, foldable and removable Rear fitting 1. Position armrest support C over rear armrest bracket D. 2. Push the armrest down until a clear “click” is heard when it’s locked into the armrest bracket D. 3.7.5 Armrest, height adjustable, foldable and removable Folding 1.
  • Page 26: Leg Rests

    Invacare® Action 3 NG Front fitting CAUTION! Risk of pinching or crushing fingers 1. Push the armrest down and until the front release There are swing mechanisms where you could button B snaps into its armrest socket hole. trap your fingers.
  • Page 27: Swing Away, Angle Adjustable Leg Rests

    Product Overview Swinging forwards Unhinging 1. Activate the release lever A, swing the leg rest 1. Swing the leg rest forwards until it engages. outwards. Unhinging 2. Pull the leg rest upwards. 1. Activate the release lever A. Hinging 2. Pull the leg rest upwards. 1.
  • Page 28 Invacare® Action 3 NG • Swinging calf pad forwards (1) or backwards (2) : • Standard height-adjustable foot plates: 1. Swing calf pad E forwards (1). 2. Pull up the calf pad E and swing it backwards (2). • Adjusting height of calf pad: 1.
  • Page 29: Anti-Tipper

    I (3–5 Nm) in the desired position. required. – In some configurations, the static stability of Invacare recommends that foot plate adjustment is carried the wheelchair may be lower than 10°; Invacare out by a qualified technician. strongly recommends the use of anti-tipper To ensure a good position of the feet, two types of (available as an option).
  • Page 30 Invacare® Action 3 NG WARNING! Risk of overturning – Always advise the user if you deactivate the anti-tippers. There is a red label on the housing of the anti-tipper, this label shows when the anti-tipper is inactivated. When the anti-tipper is correctly activated, the red label will be concealed.
  • Page 31: Seat Cushion

    – If the thickness of the cushion is changed, a complete set up of the wheelchair need to be done by a qualified technician. – We recommend to use an Invacare or Matrx cushion with anti-slip base cover in order to prevent sliding.
  • Page 32: Options

    Invacare® Action 3 NG 1. Slightly loosen the two hand screws C . 4 Options 2. Slide the levers D inwards until they are in open position. 4.1 Comfort version 3. Disengage the hooks E from their supports. It is made up of a rigid shell A and a preformed foam...
  • Page 33: Dual Handrim Dhr

    Options 4.3 Dual handrim DHR This quick release dual handrim system (left or right hand) allows the user to drive the wheelchair with a single arm using two handrims on the same wheel with 2 possible side positions of the small handrim. The user catches both handrims to propel the wheelchair forward or backwards;...
  • Page 34: One Arm Drive By Lever

    Invacare® Action 3 NG 4.4 One arm drive by lever Two positions of the small handrim are possible to facilitate the propulsion: internal position or external The One arm drive by lever control system (left or right position. Make sure that 3 screws B are locked into hand) allows the user with low muscular tone to propel position.
  • Page 35: Posture Belt

    Options Adjust the propulsion effort 1. Press the end of the disengaging spring D . 2. Release the vertical axle E from its support. 3. Reverse the procedure to reinstall. 4.5 Posture belt The wheelchair can be equipped with a posture belt. It prevents the user from sliding downward in the wheelchair or from falling out of the wheelchair.
  • Page 36 Invacare® Action 3 NG Adjusting the length WARNING! Risk of serious injury during transport The posture belt has the good length, when there’s In a vehicle, a user in his wheelchair must be just sufficient space for a flat hand between body secured by a safety belt (3-point belt).
  • Page 37: Headrest

    Options 1. Loosen the screw in the stop block B. 2. Loosen the handwheel A. 3. Adjust the headrest to the desired position. 4. Re-tighten the handwheel A down to the top of the headrest attachment. 5. Slide the stop block B. 6.
  • Page 38: Lateral Positioning Pads (For Adjustable Backrest Cover Only)

    Invacare® Action 3 NG 4.7 Lateral positioning pads (for adjustable 1. Remove the backrest cushion A. 2. Adjust the lateral positioning pads B in height and backrest cover only) sideways to the required position with the hook surface WARNING! of the backrest cover C.
  • Page 39: Tipper Aid

    Options 4.8 Tipper aid CAUTION! Risk of discomfort / minor bruises With the tipper aid, an assistant can tip the wheelchair – Make sure that the elbows of the user more easily, in order to navigate steps for example. are placed on the table when pushing the wheelchair.
  • Page 40: Half Tray

    Invacare® Action 3 NG 4.10 Half tray Mounting the half tray WARNING! Risk of falling / injury – The half tray must never be used as a replacement for the posture belt. WARNING! Risk of tipping / injury – Max load on the half tray: 1.5 kg 1.
  • Page 41: Add A Half Tray Cushion

    Options Adjusting the depth of the half tray Swing away the half tray 1. Slide the half tray A forwards or backwards to adjust to the required depth. CAUTION! Risk of discomfort – When adjusting the depth of the half tray, make sure not to squeeze the stomach of 1.
  • Page 42: Drip Stand

    Invacare® Action 3 NG 1. Place the cushion for the half tray A on the tray. Adjusting the Height and Angle 2. Place the attachment straps B into the plastic buckle and around the half tray A. 4.12 Drip stand...
  • Page 43: Transfer Kit Wheels

    Options 4.13 Transfer kit wheels Switching from Transfer kit wheels to rear wheels 1. With the help of an assistant, fit the rear wheel back If your wheelchair is too wide for certain applications, e.g. onto the removable axle, trains/aeroplanes, narrow passageways, narrow doors, the →...
  • Page 44: Passive Illumination

    Invacare® Action 3 NG 4.15 Passive illumination You can attach reflectors to the rear wheels. 4.16 Cane holder WARNING! Risk of overturning – Ensure that the cane holder does not project beyond the external diameter of the rear wheel. 1. Place the cane in the holder B.
  • Page 45: Setup

    Setup 5 Setup 5.1 Safety information CAUTION! Risk of injury – Before using the wheelchair, check its general condition and its main functions, 8.2 Maintenance Schedule, page 64. Your authorized provider will supply your wheelchair ready for use. Your provider will explain the main functions and ensure that the wheelchair meets your needs and requirements.
  • Page 46: Using The Wheelchair

    Invacare® Action 3 NG 6 Using the wheelchair CAUTION! Risk of crushing There may be a very small gap between the rear 6.1 Safety information wheel and the parking brake with the risk that you could trap your fingers. WARNING! –...
  • Page 47: Braking During Use

    Using the wheelchair 6.2 Braking during use CAUTION! Risk of burning your hands Whilst you are moving, you brake by transferring force to If you brake for a long time, a lot of frictional the handrim with your hands. heat is produced at the handrims (especially anti slip handrims).
  • Page 48: Move To/From The Wheelchair

    Invacare® Action 3 NG 6.3 Move to/from the wheelchair IMPORTANT! The mudguards and armrests could become WARNING! damaged. Risk of overturning – Never sit on the mudguards or armrests when There is a high risk of overturning during the getting in and out.
  • Page 49: Driving And Steering The Wheelchair

    Using the wheelchair 6.4 Driving and Steering the Wheelchair Finding the Tipping Point You drive and steer the wheelchair using the handrims. Before driving without an assistant you must find your wheelchair’s tipping point. WARNING! Risk of Tipping The wheelchair can tip backwards if it is not fitted with an antitipper.
  • Page 50: Negotiating Steps And Kerbs

    Invacare® Action 3 NG 6.5 Negotiating steps and kerbs Going down a step with an assistant WARNING! Risk of overturning When negotiating steps you could lose your balance and tip the wheelchair over. – Always approach steps and kerbs slowly and carefully.
  • Page 51: Going Up And Down Stairs

    Using the wheelchair Going up a step with an assistant WARNING! Risk of tipping WARNING! When going down a step without an assistant you Risk of serious injuries could tip over backwards if you cannot control Going up steps and kerbs frequently can result your wheelchair.
  • Page 52: Negotiating Ramps And Slopes

    Invacare® Action 3 NG 6.7 Negotiating Ramps and Slopes WARNING! Risk due to wheelchair being out of control When negotiating slopes or gradients your wheelchair could tip backwards, forwards or sideways. – Always have an assistant behind the wheelchair when approaching long slopes.
  • Page 53 Using the wheelchair 1. Bend your upper body forwards and propel the 1. Lean back and carefully allow the handrims to run wheelchair with quick, powerful strokes on both through your hands. You should be able to stop the handrims. wheelchair at any time by gripping the handrims.
  • Page 54: Stability And Balance When Seated

    Invacare® Action 3 NG 6.8 Stability and balance when seated 1. Point the front wheels forwards. (To do this, move your wheelchair forwards slightly then back again.) Some everyday activities and actions require you to lean 2. Apply both parking brakes.
  • Page 55: Transport

    Transport 7.2 Folding and unfolding the wheelchair 7 Transport Folding the wheelchair 7.1 Safety information WARNING! Risk of injury if the wheelchair is not properly secured In the event of an accident, braking manoeuvre, etc. you may suffer serious injuries from flying wheelchair parts.
  • Page 56: Lifting The Wheelchair

    Invacare® Action 3 NG Unfolding the wheelchair 4. Put the wheelchair back completely on the floor and check that the seat edges on both sides are in the guide components. 5. If your wheelchair is fitted with an angle adjustable...
  • Page 57: Removing And Fitting The Rear Wheels

    CAUTION! Risk of injury – If you are unable to fasten your mobility device securely in a transport vehicle, Invacare recommends that you do not transport it. Your mobility device may be transported without restrictions, whether by road, rail or by air. Individual transport...
  • Page 58: Transporting The Occupied Wheelchair In A Vehicle

    A in a collision or sudden stop. Therefore Invacare strongly transportation kit (optional) have to be fitted on recommends transferring the wheelchair user to the vehicle the chair for such a purpose.
  • Page 59 Transport Securing the wheelchair with a 4-point restraint system WARNING! – Make sure the tie-down points at the wheelchair are not damaged and that the parking brakes are fully functional. – It’s recommended to use puncture-proof tyres during transport to avoid brake problems due to reduced tyre pressure.
  • Page 60 Invacare® Action 3 NG Front side tie-down positions for belt straps: 1. Attach the front straps above the castor supporters as shown in the figure above (see location of the attachment labels). 2. Attach front straps to the rail system referring to best practice recommended instructions from the safety belt manufacturer.
  • Page 61 Transport Rear side tie-down positions for snap hooks: 1. Attach the snap hooks to the orange rings as shown in the two figures above (see location of the attachment labels). 2. Attach rear straps to the rail system referring to best practice recommended instructions from the safety belt manufacturer.
  • Page 62 Invacare® Action 3 NG Fit specific attachment kit for Comfort version only Fastening the 3-point passenger restraint system WARNING! A specific attachment kit (available as an option) is mandatory to be used for car transportation, no other attachment is permitted ! A mounting instruction is delivered with the kit, contact your authorized provider for further information.
  • Page 63 Transport WARNING! IMPORTANT! – Ensure the 3-point passenger restraint system – Apply the posture belt of the 3-point passenger fits as tightly across the user's body as possible restraint system low across the pelvis so without discomfort and no part is twisted. that the angle of the posture belt is within –...
  • Page 64: Maintenance

    Invacare® Action 3 NG 8 Maintenance weekly monthly annually Check the folding 8.1 Safety information mechanism Check the castors WARNING! Some materials deteriorate naturally over time. Check bolts This could result in damage to wheelchair Check spokes components. – Your wheelchair should be checked by a...
  • Page 65 2. If the rear wheels are not engaged properly, remove Therefore refer to the Service Manual, available on the any dirt or deposits. If the problem persists, have the internet at www.invacare.eu.com. removable axles re-fitted by a qualified technician. IMPORTANT!
  • Page 66: Cleaning And Disinfection

    Invacare® Action 3 NG Spare parts IMPORTANT! The parking brakes must be reset after replacing All spare parts may be obtained from an Invacare the rear wheels or changing their position. authorized provider. Checking after a heavy collision or blow 8.3 Cleaning and Disinfection...
  • Page 67: Cleaning Intervals

    Maintenance 3. Rinse the parts with warm water. For cleaning and disinfection in clinical or long-term 4. Thoroughly dry the parts with a dry cloth. care environments, follow your in-house procedures. Car polish and soft wax can be used on painted metal 8.3.2 Cleaning Intervals surfaces to remove abrasions and restore gloss.
  • Page 68: Disinfection

    Invacare® Action 3 NG 1. Wipe down all generally accessible surfaces with a soft Only use water and soft soap to clean the table. cloth and ordinary household disinfectant. 2. Allow the product to air-dry. 5. Leave the wheelchair to dry in a drying cabinet. Remove parts where water has collected for example in end tubes, ferrules etc.
  • Page 69: Troubleshooting

    Troubleshooting 9 Troubleshooting 9.1 Safety information Faults may arise as a result of daily use, adjustments or changing demands on the wheelchair. The table below shows how to identify and repair faults. Some of the actions listed must be carried out by a qualified technician.
  • Page 70: Identifying And Repairing Faults

    Invacare® Action 3 NG 9.2 Identifying and repairing faults Fault Possible cause Action Correct tyre pressure, → 11.2 Tyres, page 74 The wheelchair does not Incorrect tyre pressure on one rear wheel travel in a straight line One or more spokes broken Replace faulty spoke(s), →...
  • Page 71 Troubleshooting Fault Possible cause Action The castor is stiff or stuck Bearings are dirty or faulty Clean the bearings or replace the castor, → qualified technician The wheelchair is very Backrest cover is too tight Loosen the hook and loop strips of the backrest difficult to unfold cover a little, →...
  • Page 72: After Use

    Invacare® Action 3 NG • Inspection 10 After Use • Cleaning and disinfection • Adaptation to the new user 10.1 Storage For detailed information, see 8 Maintenance, page 64 and IMPORTANT! the service manual for this product. Risk of damage to the product Make sure that the user manual is handed over with the –...
  • Page 73: Technical Data

    Technical Data 11 Technical Data Maximum user weight 125 kg Overall length with leg 962 – 1185 mm 11.1 Dimensions and weight rests B Overall width 570 – 710 mm All dimension and weight specifications refer to a wide range of the wheelchair in a standard configuration.
  • Page 74: Tyres

    Invacare® Action 3 NG L Overall height 795 – 1510 mm Range: –15° / +30° Fixed: 90° 1120 – 1505 mm Pivot width Adjustable: 90° (–15°/+15°), G Backrest angle step less Maximum slope angle 7° Recliner: 90° (0°/+30°), brake in increments of 10°...
  • Page 75: Materials

    Technical Data The compatibility of the tyres listed above depends Aluminum, Steel Folding mechanism / vertical on the configuration and/or model of your brace / clamping parts / castor wheelchair. forks Screws, washers and nuts Steel In case of a tyre puncture consult a suitable workshop (e.g.
  • Page 76 Invacare distributors United Kingdom: New Zealand: Invacare Limited Invacare New Zealand Ltd Pencoed Technology Park, Pencoed 4 Westfield Place, Mt Wellington 1060 Bridgend CF35 5AQ New Zealand Tel: (44) (0) 1656 776 222 Phone: 0800 468 222 Fax: (44) (0) 1656 776 220 Fax: 0800 807 788 uk@invacare.com...
