3.2 SPECIFICATIONS

3.2.1 MECHANICAL
Weight
Storage Volume
L-W-H
Height Above Truck Flange
Height Above Truck Deck (min)
Height Above Ground on Base
Line of Reaction Force Above Ground
Flow Area (minimum)
Operating Temperature Range of Fluid
Storage Temperature Range
Materials Used
Inlets Available

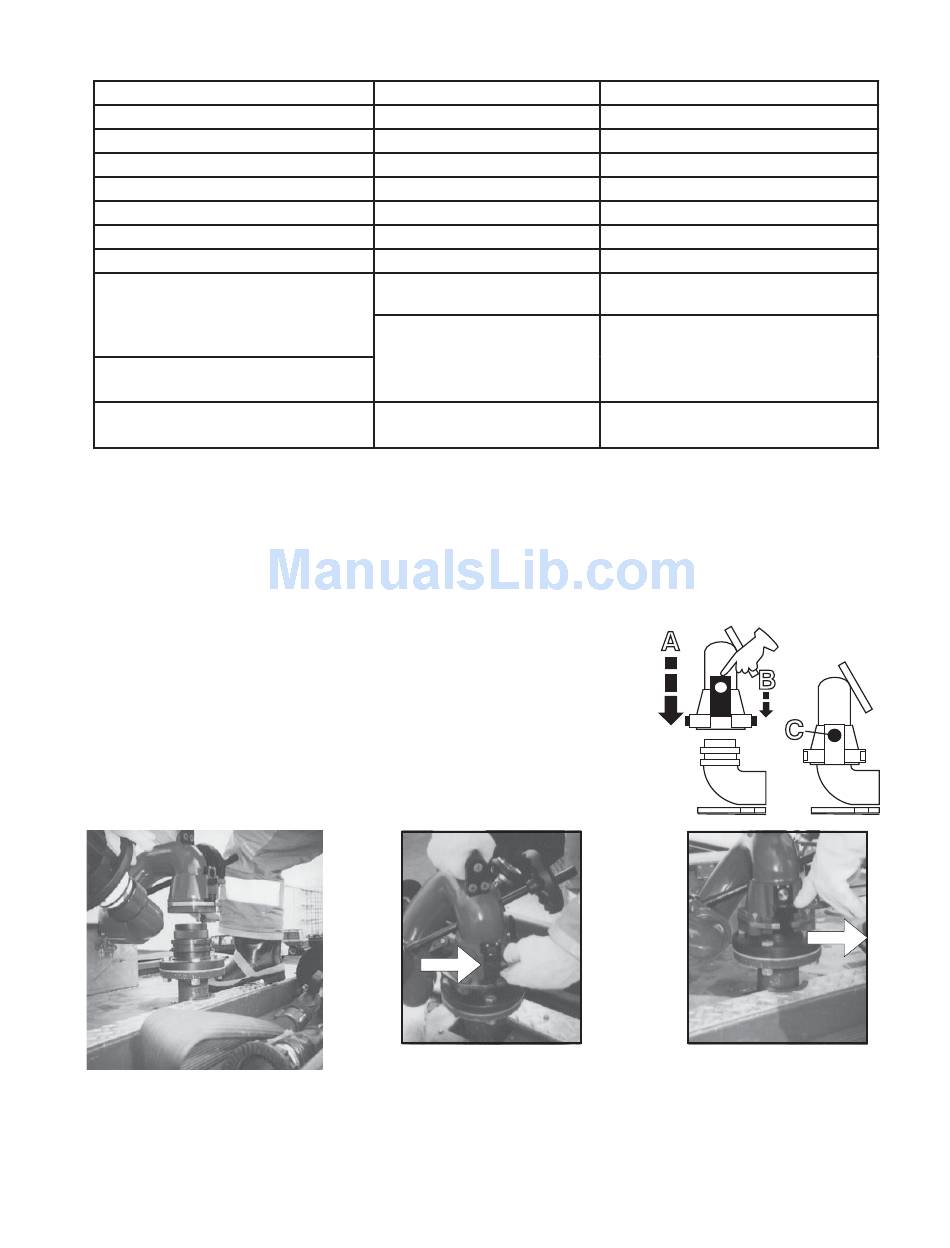

4.0 CROSSFIRE DEPLOYMENT
The CROSSFIRE monitor can be used on either a truck mounted fl ange or portable base. Installation on either base makes use of a
quick connect swivel joint. The use of each base and the quick connect joint is explained in the following sections.
4.1 QUICK CONNECT SWIVEL JOINT
Two pawls, actuated by the slide bar, engage in the base swivel to make the quick connect joint. A safety plunger engages in the slide
bar to prevent accidental unlocking of the slide bar when the monitor is under pressure.
4.2 INSTALLING MONITOR ON BASE
To install the monitor on either the truck mount fl ange or portable base: Refer to fi gures
4.2.1, 4.2.2, & 4.2.3.
a) Turn elevation handwheel to make sure the elevation of the nozzle is above the 35°
safety stop. Verify that the elevation stop pin is down and engaged.
b) Make sure the slide bar is in the up position.
c) Hold the monitor by the top carrying handle, position monitor over base and slide
straight down.
d) Push the slide bar down and watch the pawls engage the groove in the base and
the safety plunger engage in the hole in the slide bar.
Figure 4.2.1
4.3 REMOVING MONITOR TOP FROM BASE
To remove the monitor from it's base:
a) Stop all water fl ow.
b) Depress the safety plunger and lift the slide bar which will disengage the spring loaded pawls from the groove in the base.
c) Lift the monitor straight up off the base by the handle on top of the monitor.
©Copyright Task Force Tips, Inc. 2002-2018
CROSSFIRE Monitor
17 lbs
4060 in
3
20 x 14-1/2 x 14
12-1/2 in
14 in
16-1/2 in
4 in
8.3 in
2
33 to 120° F
1 to 50° C
-40 to 150° F
-40 to 65° C
Cast Aluminum, Aluminum,
Stainless Steel
One
Slide bar up, safety
plunger is not engaged.
Figure 4.2.2
5
SAFE-TAK 1250 Base
24 lbs
1620 in
3
20 x 9 x 9
NA
NA
NA
NA
8.3 in
2
33 to 120° F
1 to 50° C
-40 to 150° F
-40 to 65° C
Cast Aluminum, Aluminum,
Stainless Steel
Numerous Single & Double Inlets
2-1/2 in - 5 in
A
B
C
Slide bar locked, safety
plunger is engaged.
Figure 4.2.3
LIX-030 January 8, 2018 Rev24
