8.0 DRAWINGS & PARTS LIST

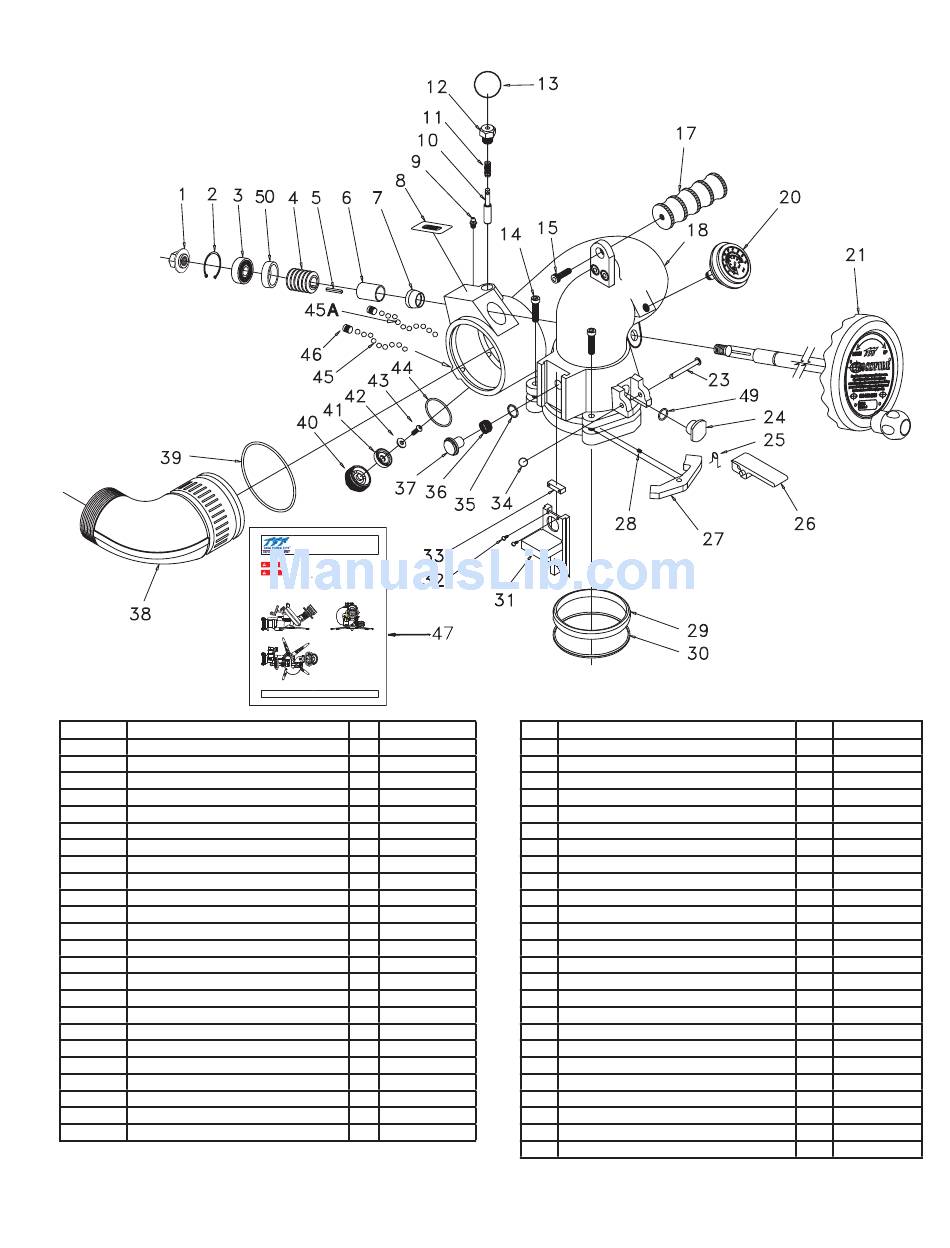

8.1 MONITOR DRAWING AND PART LIST
INDEX DESCRIPTION
1 SHAFT NUT
2 SNAP RING
3 BEARING
4 WORM WITH KEYWAY
5 KEY 1/8 X 1.00
6 BUSHING
7 BOOT
8 DANGER LABEL
9 11/4-28 GREASE FITTING
10 PULL PIN
11 PULL PIN SPRING
12 PULL PIN HOUSING
13 KEY RING
14 5/16-18 X 1-1/4 SHCS
15 3/8-16X7/8SHCS
17 PEG - CARRYING HANDLE
18 BIG BEND/BELL ASSEMBLY
20 200 PSI/BAR GAGE/BUMPER
21 HANDWHEEL ASSEMBLY
22 1/4 X 1-1/8 HDP SPIROL
23 CLEVIS PIN 1/4 X 2
24 ROTATION LOCK INSERT
25 ROTATION LOCK SPRING
26 ROTATION LOCK LEVER
©Copyright Task Force Tips, Inc. 2002-2018
MANUAL: CROSSFIRE Monitor
With Safe-Tak 1250 Base
INSTRUCTIONS FOR SAFE OPERATION AND MAINTENANCE
Understand manual before use. Operation of this device without understanding the manual and
DANGER
receiving proper training is a misuse of this equipment. Obtain safety information at www.tft
com/serial-number.
Risk of sliding increases at low elevation angles. To reduce risk of injury or death from sliding,
DANGER
do not pull elevation pin stop while on portable base.
This Instruction Manual is intended to familiarize re ghters and maintenance personnel with the operation, servicing, and
safety procedures associated with the portable monitor.
This manual should be kept available to all operating and maintenance personnel.
See Section 4.10.5
For Flow/Pressure
Operating Envelope
TASK FORCE TIPS, INC. 3701 Innovation Way, Valparaiso, IN 46383-9327 USA
MADE IN USA • www.tft.com 800-348-2686 • 219-462-6161 • Fax 219-464-7155
©Copyright Task Force Tips, Inc. 2002-2015 LIX-030 May 22, 2015 Rev23
QTY ITEM #
1 X210
1 VR4220
1 VM4252
1 X220
1 X225
1 X230
1 X240
1 XL090
1 VT25-28ZERK
1 X340
1 X345
1 X350
1 X342
2 VT31-18SH1.2
1 VT37-16SH875
1 X362
1 X800
1 X823
1 X810
1 VP250X1-375H
1 X180
1 X170
1 X152
1 X821
INDEX DESCRIPTION
27 PAWL
28 DETENT SPRING
29 WEAR STRIP
30 CUP SEAL .366 NITRILE 70A
31 SLIDE BAR
32 #6-32 X 1/4 BUTTON HEAD
33 COVER
34 CLEVIS PIN RETAINER
35 O-RING-018
36 PLUNGER WAVE SPRING
37 SAFETY PLUNGER
38 2.5 NH ELBOW
39 O-RING-241
40 DRAIN HOUSING
41 DRAIN VALVE
42 FLAT WASHER
43 1/4-28 X 1/2 BHCS
44 O-RING 130
45 5/16 SS BALLS
45A 5/16 TORLON BALLS
46 3/8-24 x 3/8 SOCKET SET
47 MANUAL CROSSFIRE
48 DVD - CROSSFIRE
49 O-RING-117
50 SPACER
13
QTY ITEM #
2 X135
2 H770
1 X120
1 X125
1 X140
2 VT06E32BH250
1 X142
1 X137
1 VO-016
1 X165
1 X150
1 X339NJ
1 VO-241
1 X375
1 X382
1 VW687X281-50
1 VT25-28BH500
1 VO-130
38 VB.312
38 VB.312TO
2 VT37F24SS312
1 LIX-030
1 LIX-200
1 VO-117
1 X236
LIX-030 January 8, 2018 Rev24
