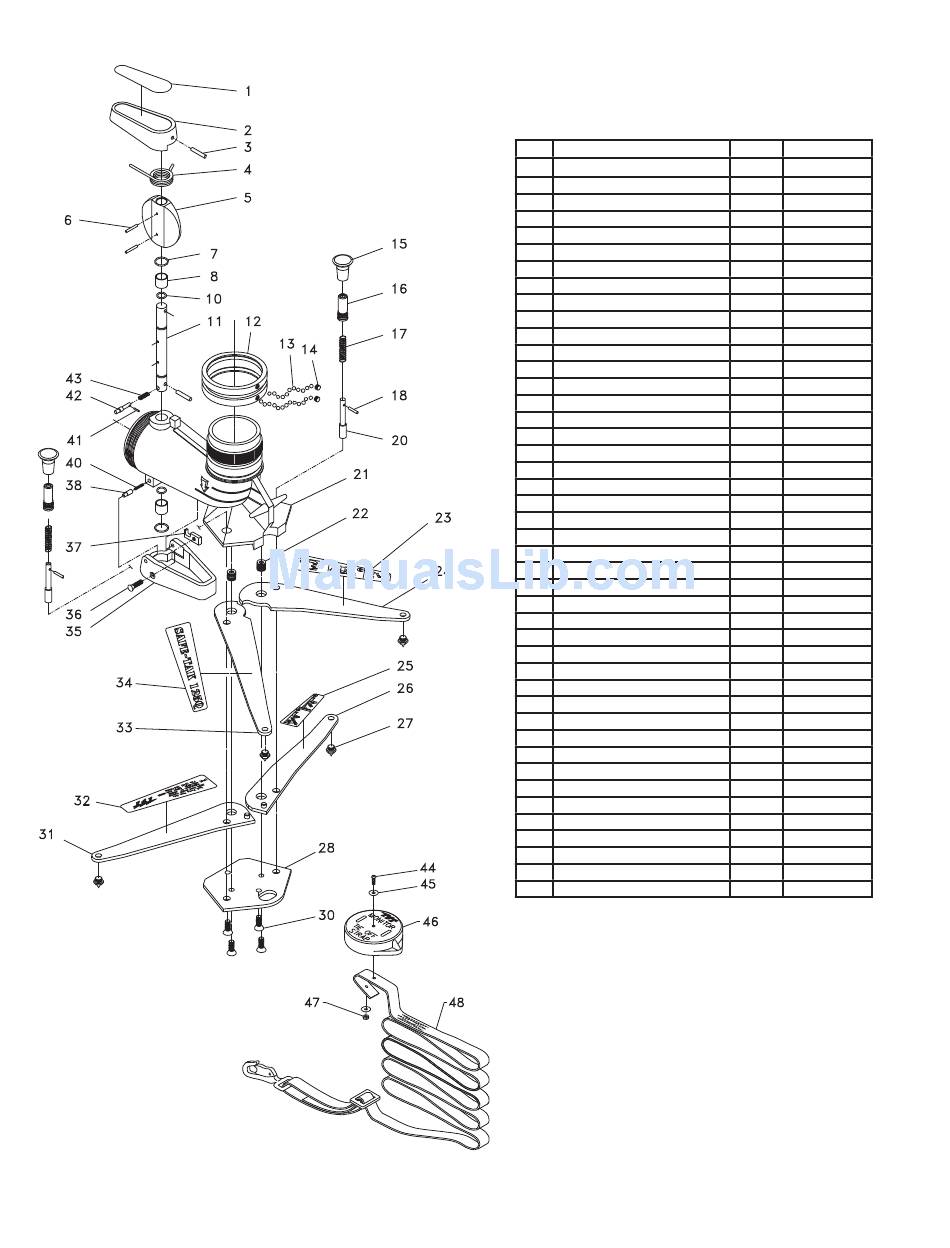

8.2 SAFE-TAK 1250 DRAWING AND PART LIST

©Copyright Task Force Tips, Inc. 2002-2018
SAFE-TAK 1250®
with Safety Valve
INDEX DESCRIPTION
1 SAFETY VALVE HANDLE LABEL
2 VALVE HANDLE
3 1/4 x 1 3/8 SPIROL PIN
4 TORSION SPRING
5 BUTTERFLY
6 5/32 x 1 1/8 SPIROL PIN
7 O-RING-118
8 BUSHING
10 O-RING-113
11 VALVE SHAFT
12 SWIVEL RING
13 5/16 SS BALLS
14 SWIVEL SCREW
15 SHOT PIN KNOB
16 KNOB BARREL
17 SHOT PIN SPRING
18 5/32 x 7/8 SPIROL PIN
20 SHOT PIN
21 BASE
22 BELLEVILLE WASHER
23 INSTRUCTION LEG LABEL 1-3
24 FRONT LEG - LEFT
25 INSTRUCTION LEG LABEL 4-5
26 REAR LEG - LEFT
27 SPIKE
28 BOTTOM PLATE
30 3/8-16 X 3/4 FLAT HEAD SHCS
31 REAR LEG - RIGHT
32 TFT LEG LABEL
33 FRONT LEG - RIGHT
34 SAFE-TAK LEG LABEL
35 PADDLE
36 1/4-20 x 7/8 FLAT HEAD
37 WEAR PLATE
38 PADDLE PIVOT
40 PADDLE PIVOT SPRING
41 3/32 x 1/2 SPIROL PIN
42 TRIP PIN
43 TRIP PIN SPRING
44 #10-32 x 7/8 BUTTON HEAD
45 WASHER
46 STRAP CAP
47 #10-32 HEX NUT
48 STRAP ASSEMBLY
14
QTY ITEM #
1 XL070
1 X540
1 VP250X1.375H
1 X560
1 X550
2 V1920
2 VO-118
2 X565
2 VO-113
1 X570
1 X425
76 VB.312
2 X405
2 X430
2 X440
2 X445
2 V1900
2 X435
1 X420
12 D07590
1 XL010
1 X470L
1 XL020
1 X460L
4 X480
1 X450
4 VT37-16FH750
1 X460R
1 XL050
1 X470R
1 XL040
1 X530
1 VT25E20FH875
1 X585
2 X590
2 X575
1 VP094X500H
1 X580
1 X582
1 VT10E32BH875
2 VW700X203-60
1 X457
1 VT10-32NT
1 X455 -R
LIX-030 January 8, 2018 Rev24
