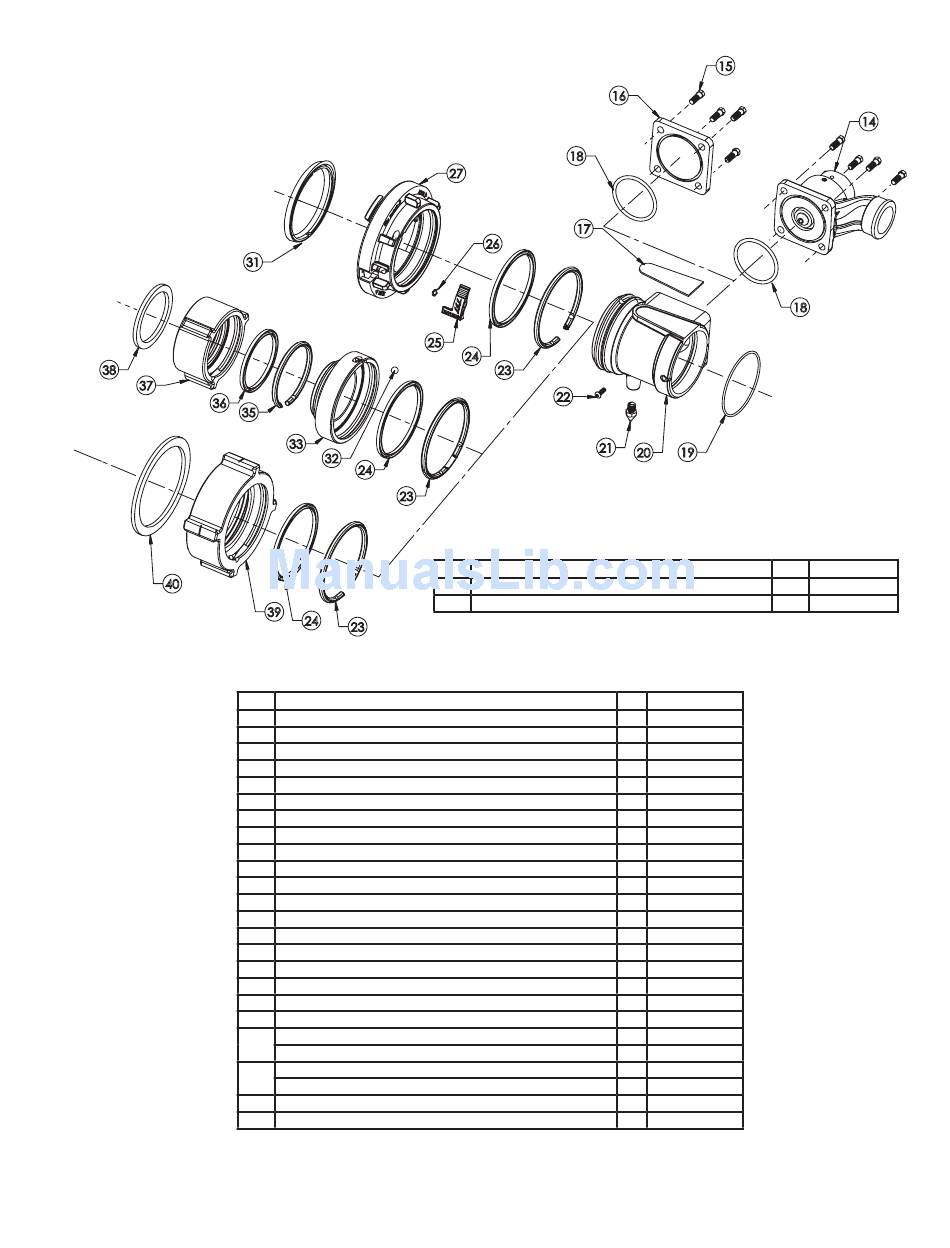

8.3 HIGH FLOW INLET OPTION

38 38
37 37
36 36
40 40
©Copyright Task Force Tips, Inc. 2002-2018
31 31
35 35
33 33
32 32
24 24
23 23
39 39
24 24
23 23
INDEX DESCRIPTION
14 RELIEF VALVE WITHOUT THREAD, ALUMINUM
15 7/16-14 X 1 HEX HEAD BOLT 18-8 STAINLESS STEEL
16 LDH BLANK CAP HARDCOAT USE ON X651
17 SAFETY VALVE BASE LABEL
18 O-RING-236 3-1/4 ID 1/8 C/S 3.234 +/-.024 ID.139 +/-.004 C/S
19 O-RING-244 4-1/4 ID 1/8 C/S 4.234+-.030 ID .139+-.004 C/S
20 LDH ADAPTOR W/PSM5.25
21 REAR SPIKE
22 ¼-28 X ¾ BUTTON HEAD - ND PATCH
23 PLASTIC STRIP 5.25" - MOLDED
24 CUP SEAL 5.25 X 4.75 X ¼ PRECISION ASSOCIATES #666-427
25 LOCKING LEVER - MOLDED
26 SPRING TORSION (STORZ LOCK) 9991067 MIDSTATE # 210049
27 COUPLING HEAD STROZ 5 X 5.25 PSF HARDCOAT
31 GASKET 5" PRESSURE MOLDED 9991000
32 BALL 7/16 STAINLESS 302 GRADE 100
33 MATE PSM4.25 X PSF5.25 - HARDCOAD
35 PLASTIC STRIP 4.25" - MOLDED
36 CUP SEAL 4.25 X 3.750 X 1/4
COUPLING RL 3.0NHF X PSF4.25
37
COUPLING RL 3.5NHF X PSF4.25
GASKET 3.0 HOSE COUPLING
38
GASKET 3.5 HOSE COUPLING
39 4.0 NH FEMALE X PSF5.25
40 4.0 HOSE COUPLING GASKET
18 18
27 27
17 17
26 26
25 25
24 24
23 23
22 22
21 21
4" STORZ COUPLING IS AVAILABLE (NOT SHOWN)
INDEX DESCRIPTION
1 STORZ 4" FTS PSF4.25 - PARTS SET FULL TIME SWIVEL
2 MATE PSM4.25 X PSF5.25 LOCKOUT PART SET
15
15 15
16 16
20 20 19 9
QTY
1
1
QTY ITEM #
1 A1810
4 VT43-14HX1.0
1 X631
1 XL080
1 VO-236
1 VO-244
1 X651
1 X482
1 VT25Y28BH750
1 A1291
1 A1296
1 A4176
1 A4230
1 A4135
1 A4220
1 VB.437
1 A4730
1 A1292
1 A1297
1 A4650N
1 A4655N
1 V3194
1 V3196
1 A4660N
1 V3198
LIX-030 January 8, 2018 Rev24
14 14
18 18
ITEM #
A4114.1
A4730.2
