DVC6200p Digital Valve Controller

November 2014

Travel calibration and auto tuning can be accomplished by shorting the auxiliary terminal connections, shown in
figure 22, between 3 to 10 seconds. You can abort the procedure by shorting the auxiliary terminals for 1 second.
Pressure range will also be captured during this procedure.

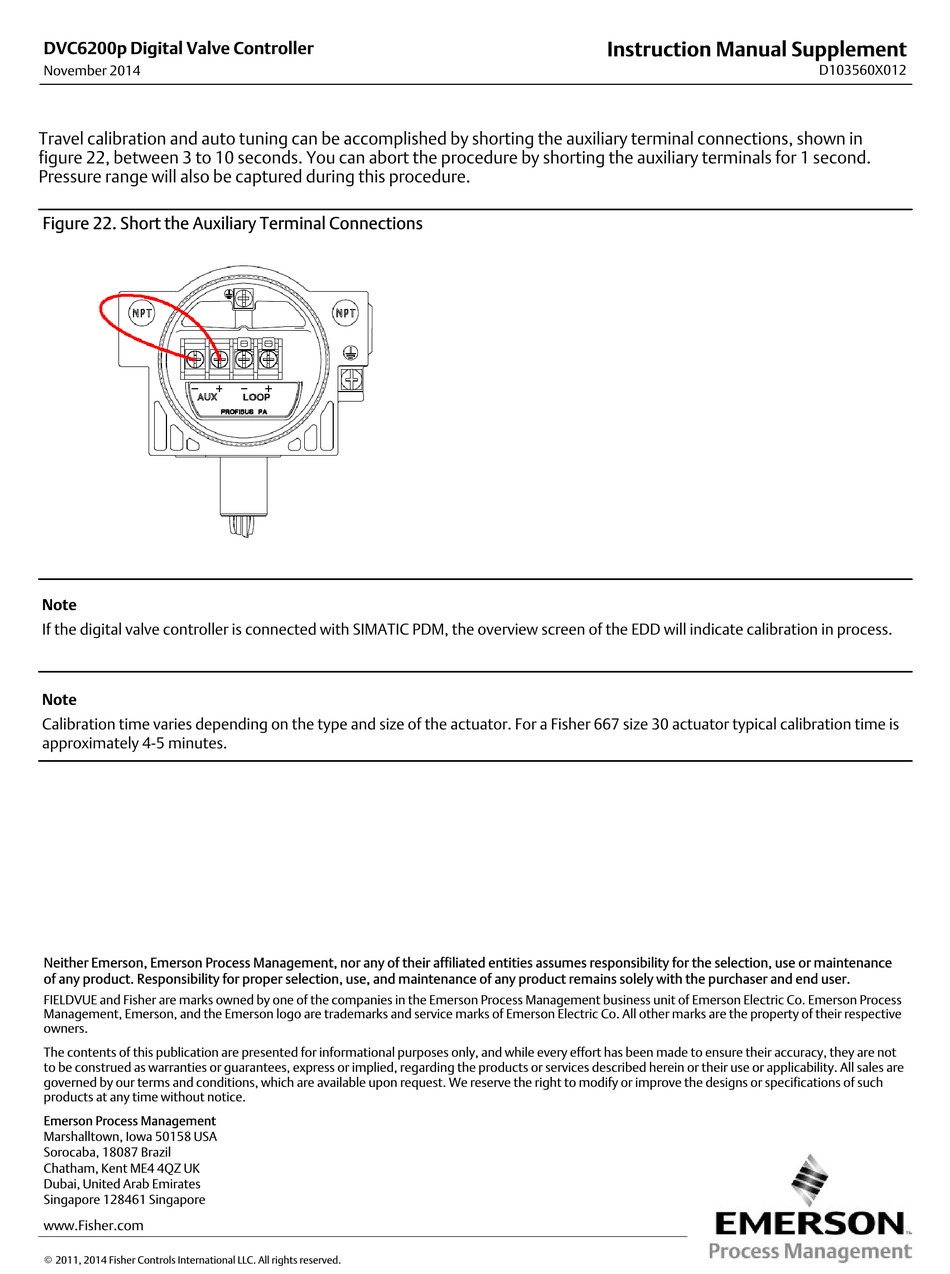

Figure 22. Short the Auxiliary Terminal Connections
Note
If the digital valve controller is connected with SIMATIC PDM, the overview screen of the EDD will indicate calibration in process.
Note
Calibration time varies depending on the type and size of the actuator. For a Fisher 667 size 30 actuator typical calibration time is
approximately 4-5 minutes.
