Refer to figure 19 to view the Overview screen interface. Overview shows the Primary Purpose Variables and the

Device Status and Mode. It also allows you to enter the Device Serial Number and access Device Information, Stroke

Valve, and Calibration procedures.

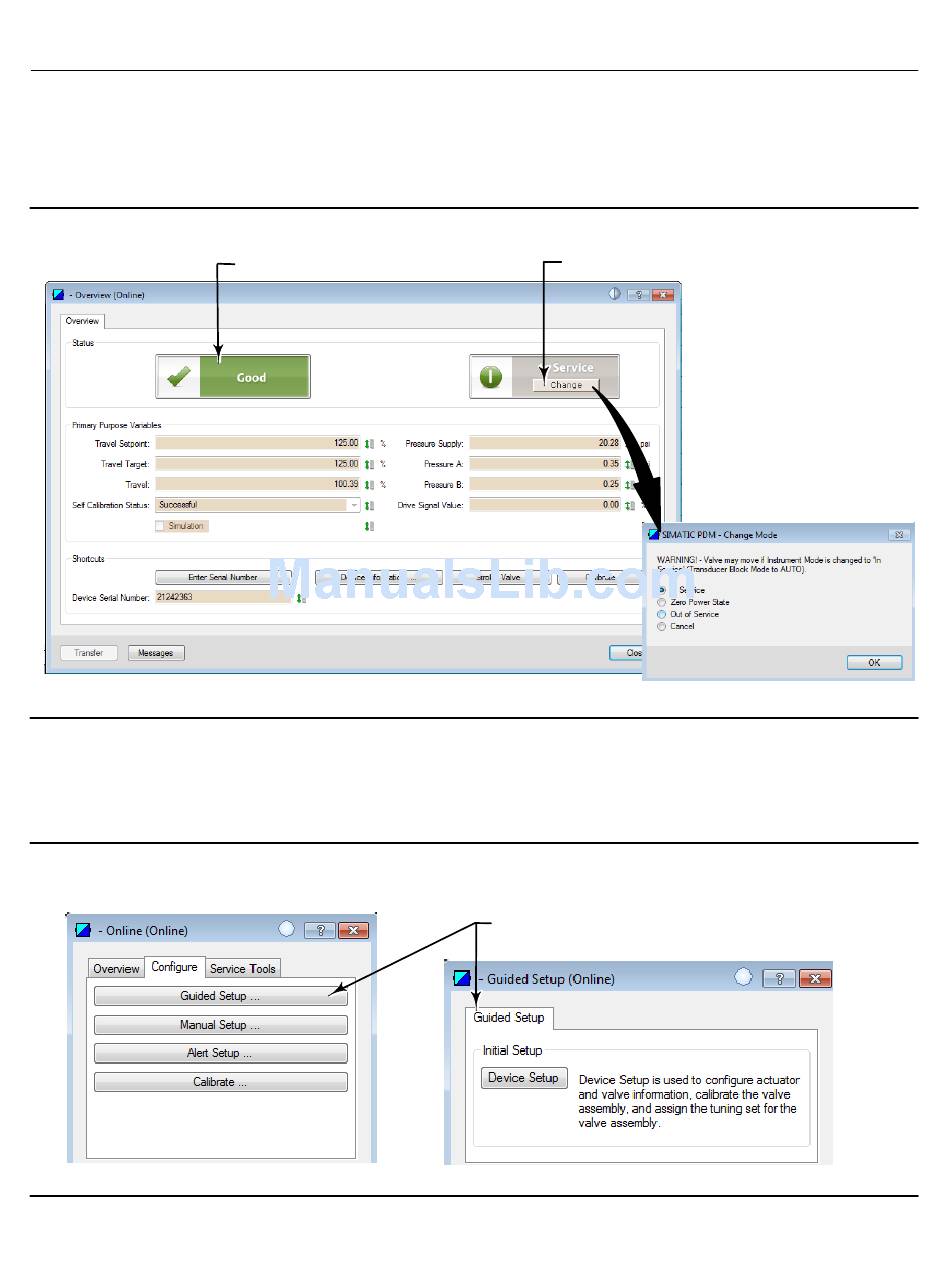

Figure 19. FIELDVUE DVC6200 EDD Overview

2. To configure the DVC6200p, select Configure > Guided Setup and go to Device Setup as shown in figure 20. Follow

the prompts to configure actuator and valve information, calibrate, and tune the valve assembly. If Device Setup is

being done prior to mounting the device, refer to the note on the following page.

Figure 20. Accessing Device Setup

DEVICE STATUS—CLICK TO

SEE ACTIVE STATUS ALERTS

Instruction Manual Supplement

CHANGE MODE HERE

GUIDED SETUP
