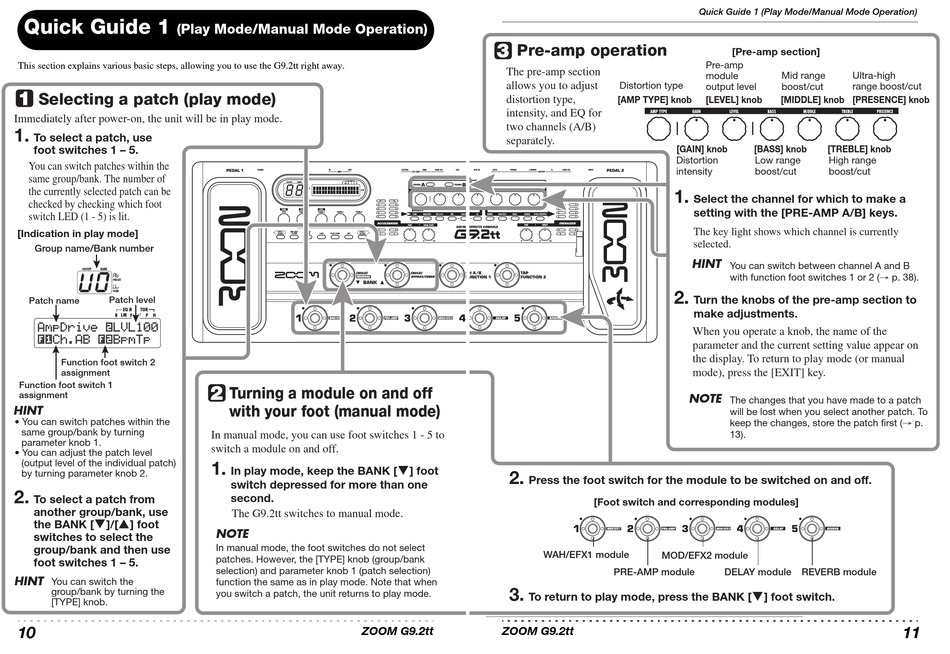

Quick Guide 1
(Play Mode/Manual Mode Operation)
This section explains various basic steps, allowing you to use the G9.2tt right away.
Selecting a patch (play mode)
Immediately after power-on, the unit will be in play mode.
1.
To select a patch, use
foot switches 1 – 5.
You can switch patches within the
same group/bank. The number of
the currently selected patch can be
checked by checking which foot
switch LED (1 - 5) is lit.
[Indication in play mode]
Group name/Bank number
U0 U0 U0
Patch name Patch level
AmpDrive AmpDrive ™LVL100 AmpDrive ™LVL100 LVL100
ɡCh.AB əBpmTp ɡ ɡCh.AB Ch.AB ə əBpmTp BpmTp
Function foot switch 2
assignment
Function foot switch 1
assignment
HINT
• You can switch patches within the
same group/bank by turning
parameter knob 1.
• You can adjust the patch level
(output level of the individual patch)
by turning parameter knob 2.
2.
To select a patch from
another group/bank, use
the BANK [W]/[Q] foot
switches to select the
group/bank and then use
foot switches 1 – 5.
HINT
You can switch the
group/bank by turning the
[TYPE] knob.
10
Turning a module on and off
with your foot (manual mode)
In manual mode, you can use foot switches 1 - 5 to
switch a module on and off.
1.
In play mode, keep the BANK [W] foot
switch depressed for more than one
second.
The G9.2tt switches to manual mode.
NOTE
In manual mode, the foot switches do not select
patches. However, the [TYPE] knob (group/bank
selection) and parameter knob 1 (patch selection)
function the same as in play mode. Note that when
you switch a patch, the unit returns to play mode.
ZOOM G9.2tt
Pre-amp operation
The pre-amp section
allows you to adjust
Distortion type
distortion type,
[AMP TYPE] knob
intensity, and EQ for
two channels (A/B)
separately.
[GAIN] knob
Distortion
intensity
1.
2.
2.
Press the foot switch for the module to be switched on and off.
[Foot switch and corresponding modules]
WAH/EFX1 module MOD/EFX2 module
PRE-AMP module
3.
To return to play mode, press the BANK [W] foot switch.
ZOOM G9.2tt

Quick Guide 1 (Play Mode/Manual Mode Operation)

[Pre-amp section]
Pre-amp
module Mid range Ultra-high
output level boost/cut range boost/cut
[LEVEL] knob [MIDDLE] knob [PRESENCE] knob
[BASS] knob [TREBLE] knob
Low range High range
boost/cut boost/cut
Select the channel for which to make a
setting with the [PRE-AMP A/B] keys.
The key light shows which channel is currently
selected.
HINT
You can switch between channel A and B
with function foot switches 1 or 2 (→ p. 38).
Turn the knobs of the pre-amp section to
make adjustments.
When you operate a knob, the name of the
parameter and the current setting value appear on
the display. To return to play mode (or manual
mode), press the [EXIT] key.
NOTE
The changes that you have made to a patch
will be lost when you select another patch. To
keep the changes, store the patch first (→ p.
13).
DELAY module REVERB module
