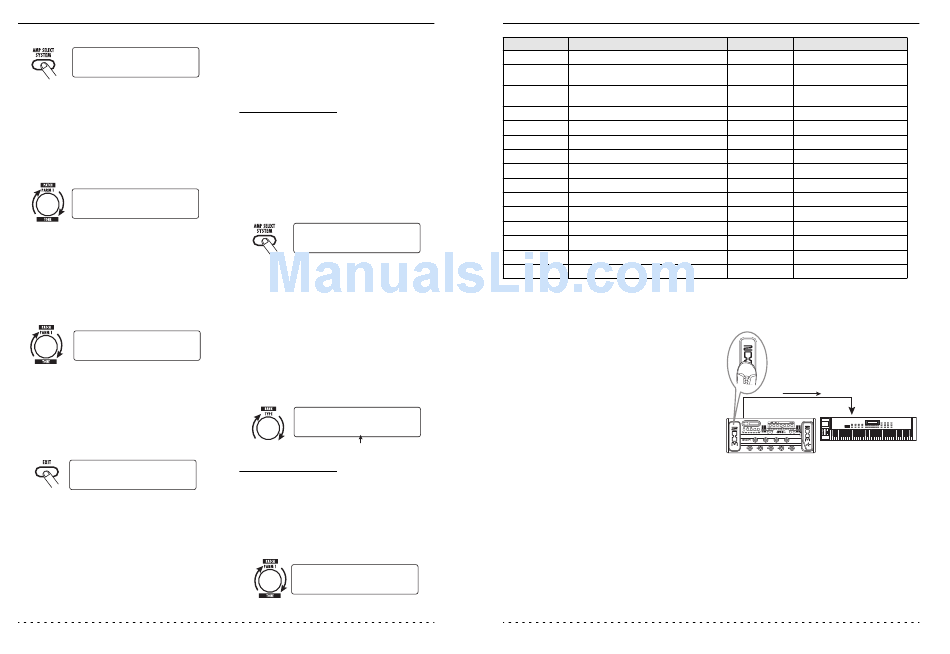

MIDI Usage Examples
AMP Select 1/28 AMP Select 1/28
¡FRONT FRONT
2.
To enable the G9.2tt to receive
control change messages, turn the
[TYPE] knob to bring up the "MIDI
CTRL Rx" (receive control change)
parameter, and turn parameter knob
1 to select the "ON" setting.
MIDI MIDI 10/28 10/28
¡CTRL Rx=ON CTRL Rx=ON é
3.
To enable the G9.2tt to send control
change messages, turn the [TYPE]
knob to bring up the "MIDI CTRL Tx"
(send control change) parameter and
turn parameter knob 1 to select the
"ON" setting.
MIDI MIDI 11/28 11/28
¡CTRL Tx=ON CTRL Tx=ON é
4.
When the setting is complete, press
the [EXIT] key to exit the AMP
SELECT/SYSTEM menu.
The indication "Store... ?" appears on the display,
to allow you to store the changes.
Store... ? Store... ?
Y[STORE] N[EXIT] Y[STORE] N[EXIT]
5.
Press the [STORE/SWAP] key to save
the changes.
The setting is accepted, and the unit returns to
play mode.
In the above condition, only the [STORE/SWAP]
key and [EXIT] keys are active. By pressing the
[EXIT] key, you can abort the changes and return
to play mode without saving.
48
■ Assigning control change
numbers
You can assign control change numbers to the
expression pedal and keys of the G9.2tt as
follows.
NOTE
Before carrying out the following steps, verify that
the send/receive MIDI channel setting of the G9.2tt
→
is as required ( p. 43), and that send/receive of
→
control change messages is enabled ( p. 47).
1.
In play mode, press the [AMP
SELECT/SYSTEM] key.
AMP Select 1/28 AMP Select 1/28
¡FRONT FRONT
2.
Turn the [TYPE] knob to bring up the
display for assigning a control change
number.
Operations to which a control change number can
be assigned are listed in the table on the next
page.
For example, to assign a control change number
to expression pedal 1, the following display is
used.
MIDI cc# MIDI cc# 12/28 12/28
¡PEDAL1=7 PEDAL1=7
Control change number to be assigned
HINT
The control change number assignment always
applies both for sending and receiving.
3.
Turn parameter knob 1 to specify a
control change number.
MIDI cc# MIDI cc# 12/28 12/28
¡PEDAL1=7 PEDAL1=7
ZOOM G9.2tt
Display Control target
PEDAL1
Expression pedal 1 operation
Expression pedal 2 operation, vertical
PEDAL2-V
direction
Expression pedal 2 operation, horizontal
PEDAL2-H
direction
COMP
COMP module on/off
WAH/EFX1
WAH/EFX1 module on/off
EXT LOOP
EXT LOOP module on/off
ZNR
ZNR module on/off
PRE-AMP
PRE-AMP module on/off
EQUALIZER
EQ module on/off
MOD/EFX2
MOD/EFX2 module on/off
DELAY
DELAY module on/off
REVERB
REVERB module on/off
MUTE
Mute mode on/off
BYPASS
Bypass mode on/off
CH A/B
Pre-amp section channel A/B switching
4.
Assign control change numbers to
other operations in the same way.
5.
When the setting is complete, press
the [EXIT] key to exit the AMP
SELECT/SYSTEM menu.
The indication "Store... ?" appears on the display,
to allow you to store the changes.
6.
Press the [STORE/SWAP] key to save
the changes.
The setting is accepted, and the unit returns to
play mode.
In the above condition, only the [STORE/SWAP]
key and [EXIT] keys are active. By pressing the
[EXIT] key, you can abort the changes and return
to play mode without saving.
7.
To send and receive control change
messages, connect the G9.2tt and the
other MIDI device as follows.
ZOOM G9.2tt
MIDI Usage Examples
Default CC# CC# setting range
7 OFF, 1 – 5, 7 – 31, 64 – 95
11 OFF, 1 – 5, 7 – 31, 64 – 95
12 OFF, 1 – 5, 7 – 31, 64 – 95
64 OFF, 64 – 95
65 OFF, 64 – 95
66 OFF, 64 – 95
67 OFF, 64 – 95
68 OFF, 64 – 95
69 OFF, 64 – 95
70 OFF, 64 – 95
71 OFF, 64 – 95
72 OFF, 64 – 95
73 OFF, 64 – 95
74 OFF, 64 – 95
75 OFF, 64 – 95
■
Example for sending control change
messages
(1) When the expression pedal or
switches and keys at the G9.2tt
are operated...
(2) Control change
message is sent
MIDI OUT MIDI IN
connector connector
Control change values sent from the G9.2tt
change as follows.
●
When the expression pedal 1/2 is
operated
The value of the assigned control change
number is varied continuously over the range
of 0 –127. For expression pedal 2, two control
change messages can be sent simultaneously,
for vertical direction and horizontal direction
movement.
