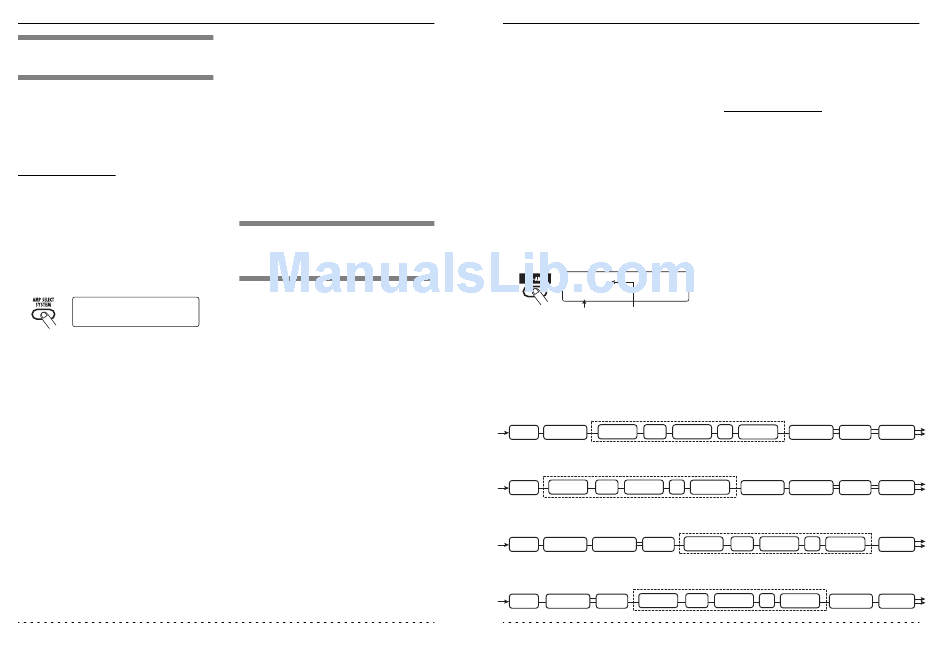

Linking Effects
Using the Amp Select
Function
The G9.2tt incorporates an Amp Select function
that optimizes the frequency response to match
the type of amplifier in use. When starting to use
the G9.2tt or when changing the guitar amp, you
should choose a suitable Amp Select setting as
described below.
NOTE
The Amp Select feature is disabled for patches
where the CABINET module is set to on. This is
because the PRE-AMP module algorithm for direct
recording will be automatically selected when the
CABINET module is on.
1.
In play mode, press the [AMP
SELECT/SYSTEM] key.
AMP Select 1/28 AMP Select 1/28
¡FRONT FRONT
2.
Turn parameter knob 1 to select one
of the following settings.
●
FRONT
This is the standard setting for using the
GUITAR INPUT on the front of the guitar
amp.
●
COMBO R1
This setting is suitable when using the POWER
INPUT on the rear panel of a Roland JC-120
guitar amp.
●
COMBO R2
This setting is suitable when using the POWER
INPUT on the rear panel of a Fender combo
amp.
●
STACK R
This setting is suitable when using the POWER
58
INPUT on the rear panel of a Marshall stack
amp.
3.
When the setting is complete, press
the [EXIT] key.
The indication "Store... ?" appears on the display,
to allow you to store the changes.
4.
Press the [STORE/SWAP] key to save
the changes.
In the above condition, only the [STORE/SWAP]
key and [EXIT] keys are active. By pressing the
[EXIT] key, you can abort the changes and return
to play mode without saving.
Changing the insert position
of the pre-amp section and
WAH/EFX1 module
The G9.2tt allows you to change the insert
position of the five modules making up the pre-
amp section (EXT LOOP, ZNR, PRE-AMP, EQ,
CABINET) and the WAH/EFX1 module. This
will result in changes to the effect action and tone.
■
Changing the insert position of
the WAH/EFX1 module
To change the insert position of the WAH/EFX1
module, call up the Position parameter and set it
to "Befr" (before pre-amp section) or "Aftr" (after
pre-amp section). The Position parameter can be
used when the Booster, Tremolo, or Octave effect
type is not selected.
1.
In play mode, manual mode, or edit
mode, press the [WAH/EFX1] key.
2.
Turn the [TYPE] knob and select an
effect type other than Booster,
Tremolo, or Octave.
3.
Turn parameter knob 1 to select
"Befr" (before pre-amp section) or
"Aftr" (after pre-amp section).
ZOOM G9.2tt
4.
When the setting is complete, press
the [EXIT] key.
The unit returns to the previous mode. To enable
the changed setting, be sure to store the patch
(→ p. 28).
■
Changing the insert position of
the pre-amp section
To change the insert position of the pre-amp
section, call up the Chain parameter and set it to
"Pre" (before MOD/EFX2 module) or "Post"
(after DELAY module). The Chain parameter can
be used with all effect types of the PRE-AMP
module.
1.
In play mode, manual mode, or edit
mode, press the [PRE-AMP] key.
The display changes as follows.
Chain Chain œ–ø––– œ–ø–––
Post Post –œ–œµµ –œ–œµµ
Parameter value Parameter name
2.
Turn parameter knob 2 to select "Pre"
(before MOD/EFX2 module) or "Post"
(after DELAY module).
Fig. 1 Pre-amp section = PRE, WAH/EFX1 = Befr
Pre-amp section
EXT LOOP ZNR PRE-AMP
COMP WAH/EFX1
Fig. 2 Pre-amp section = PRE, WAH/EFX1 = Aftr
Pre-amp section
EXT LOOP ZNR PRE-AMP EQ
COMP
Fig. 3 Pre-amp section = POST, WAH/EFX1 = Befr
COMP WAH/EFX1 MOD/EFX2 DELAY
Fig. 4 Pre-amp section = POST, WAH/EFX1 = Aftr
COMP MOD/EFX2 DELAY EXT LOOP
ZOOM G9.2tt
Linking Effects
3.
When the setting is complete, press
the [EXIT] key.
The unit returns to the previous mode. To enable
the changed setting, be sure to store the patch
(→ p. 28).
NOTE
• When the "Pre" setting is selected as pre-amp
section insert position, the signal after the MOD/
EFX2 module is processed entirely in stereo.
When you select "Post", the signal is processed
in the pre-amp section in mono.
• The pre-amp section insert position applies to
both the A and B channel. Choosing a different
setting for the two channels is not possible.
The module lineup with different settings for the
WAH/EFX1 module and pre-amp section
insertion position is shown below.
EQ CABINET
MOD/EFX2 DELAY
CABINET
WAH/EFX1 MOD/EFX2 DELAY
Pre-amp section
EXT LOOP ZNR PRE-AMP EQ CABINET
Pre-amp section
ZNR PRE-AMP EQ CABINET WAH/EFX1
REVERB
REVERB
REVERB
REVERB
