Convaid Trekker Instructions Manual
Removing seating module
Hide thumbs
Also See for Trekker:
- User manual (48 pages) ,
- User manual (75 pages) ,
- Troubleshooting manual (12 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for Convaid Trekker
Summary of Contents for Convaid Trekker

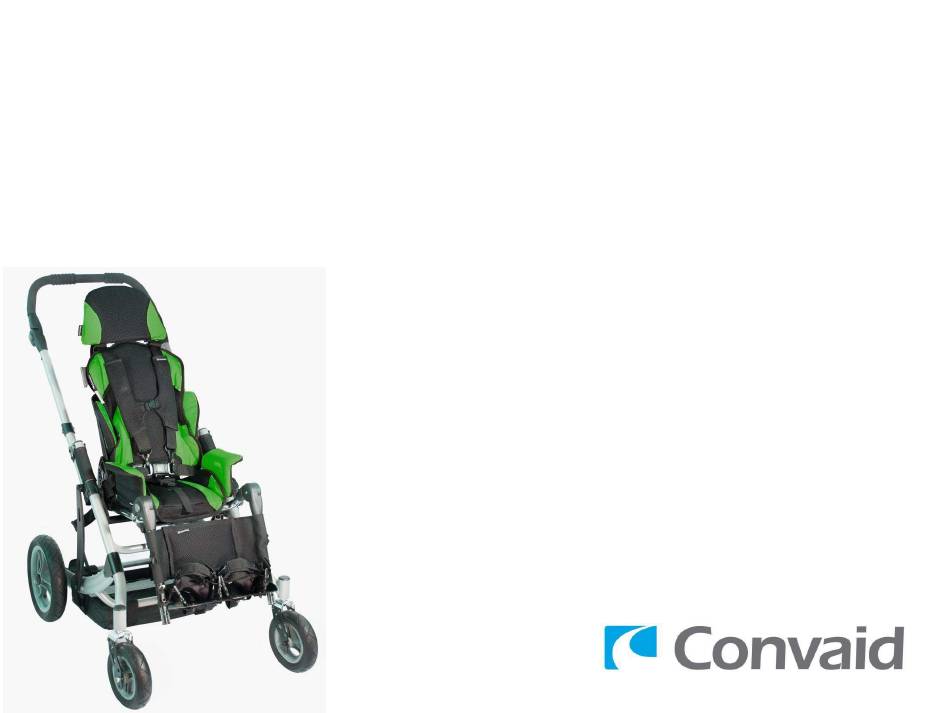

- Page 1 Trekker ™ Removing Seating Module...
- Page 2 Removing Seating Module Instructions 1. Adjust back to upright position. Seat 2. Push Safety Lock release lever. module MUST be parallel to the floor. Safety Lock 3. Lift seating module release bar Release Bar...
- Page 3 Removing Seating Module Instructions 5. Pull seating module forward to disengage 6. Lift seating module and remove the Docking Hooks from docking platform. from base. Docking Hooks...
- Page 4 Trekker ™ Installing Seating Module in Reverse Configuration...
- Page 5 Installing Seating Module in Reverse Configuration Instructions 1. Before reversing seating base, pull tilt- 2. Reverse base and align seat docking stopper up. This will ensure proper docking hooks on the back tube of the docking of the seating system. platform.
- Page 6 Installing Seating Module in Reverse Configuration Instructions 3. Pull on the safety lock release lever and engage to seat base lock bar. Safety Lock Lever...
- Page 7 Trekker 14 with Transit Brackets When installing seating module in reverse configuration on a Trekker size 14 with transit brackets. Install seating module at a 45° degree level, to avoid anchor brackets from interfering with frame bottom bar.
- Page 8 Trekker ™ Installing Seating Module in Forward Configuration...
- Page 9 Installing Seating Module in Forward Configuration 2. Face seating module in forward 1. Before installing base in forward configuration and align seat docking configuration, pull tilt-stopper down. This will hooks on the back tube of the docking ensure proper docking of the seating system. platform.
- Page 10 Installing Seating Module in Forward Configuration 3. Push safety lock release lever and engage to seat base lock bar. Safety Lock Lever...
- Page 11 REMEMBER When seating module is removed and reinstalled back onto the base, tilt lever must be down when facing forward OR tilt lever must be up when in reverse configuration. Seating Module Seating Module in Reverse Facing Front Tilt Lever UP Tilt Lever DOWN...
- Page 12 Video – How to Remove & Reverse Convaid Trekker Seating Module from Seating Base...
