Before commencing assembly please read these instructions thoroughly

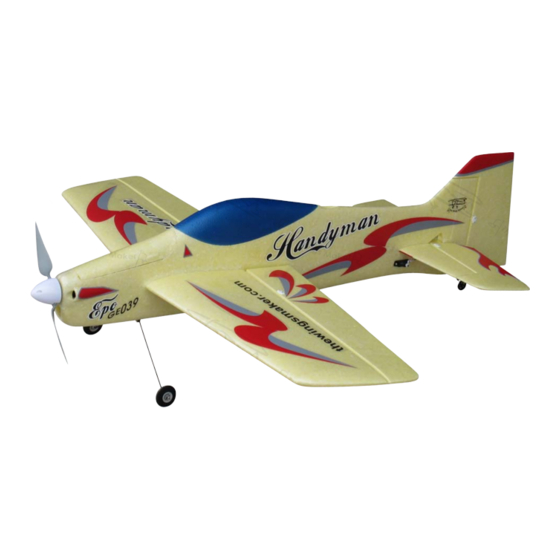

Handyman EP
Wing Span: 36.5 in / 930 mm
Wing Area: 346 sq in / 22.3 sq dm
Flying Weight: 19-23 oz / 540-650 g
Fuselage Length: 41.5 in / 1055 mm
Requires: 4-channel radio w/ 4 micro servos. Outrunner
Warning ! This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this kind
of electric powered precision model. Operating this model without prior preparation may cause
injuries. Remember, safety is the most important thing. Always keep this instruction manual at
hand for quick reference.
* Specifications are subject to change without notice.*
THE WINGS MAKER
FACTORY PRE-FABRICATED
ALMOST-READY-TO-FLY (ARF) SERIES
MADE IN CHINA
.
www thewingsmaker com
,
Specifications
Specifications
Motor KM0283010 w/ Propeller Adaptor HW2340100
20A Brushless ESC, 2 cells 7.4V 15C 1300 mAh
(indoor flying) to 3 cells 11.1V 15C 1800 mAh
(outdoor flying) Li-Po battery & charger.
.
I NSTRUCTI ON M ANUAL
GE039PO22591118
.
Advertisement
Table of Contents
Related Manuals for The Wings Maker Handyman EP
Summary of Contents for The Wings Maker Handyman EP

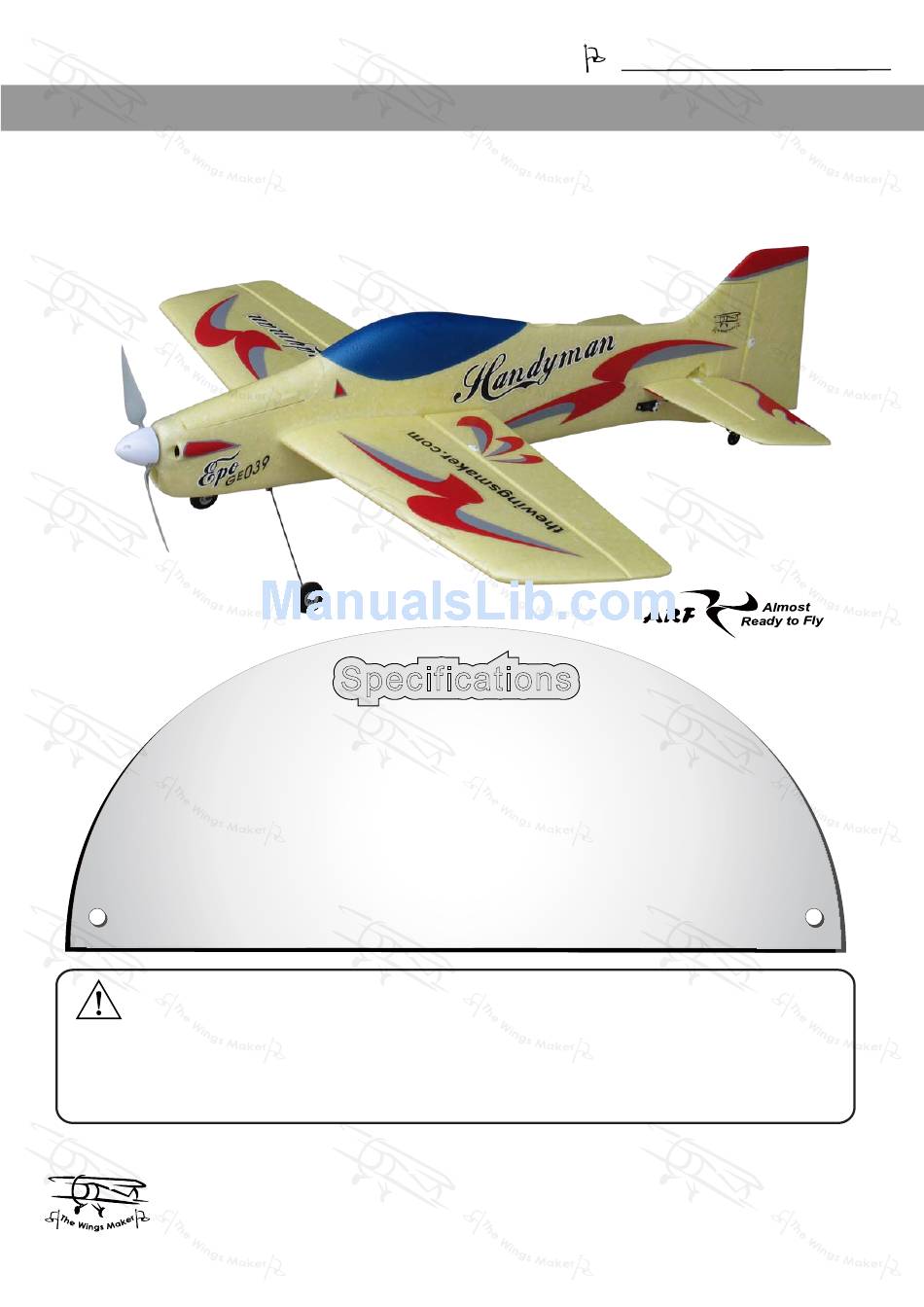

- Page 1 I NSTRUCTI ON M ANUAL Before commencing assembly please read these instructions thoroughly Handyman EP Specifications Specifications Wing Span: 36.5 in / 930 mm Wing Area: 346 sq in / 22.3 sq dm Flying Weight: 19-23 oz / 540-650 g Fuselage Length: 41.5 in / 1055 mm...
-
Page 2: Before You Begin
Handyman EP INDEX BEFORE YOU BEGIN PARTS LIST ASSEMBLY P.3-P.9 SAFETY PRECAUTIONS BEFORE YOU BEGIN Read through the manual before you begin, so you will have an overall idea of what to do. Check all parts. If you find any defective or missing parts contact your local dealer. Please DRY FIT and check for defects for all parts that will require CA or Epoxy for final assembly. -
Page 3: Parts List
Parts List 1.MAIN WING -- 1 pair HORN PL4113102 -- 1 set SCREW PB2x22mm -- 4 pcs PUSHROD Ø1.4x50mm w/ Threads (For Elevator) -- 1 pc. STRAPER PL4112106 -- 2 pcs CLEVIS PL4112105 -- 2 pcs 7.SCREW PB2x18mm -- 2 pcs HORN PL4113102 -- 2 sets FUEL TUBE d2xD4x4mm -- 2 pcs FUEL TUBE d2xD4x4mm -- 4 pcs... -
Page 4: Aileron Servo
Aileron Servo PB2x22mm Screw Ø1mm pilot holes for The Wings Maker horn are pre-drilled. Please look for pin-hole marks at under side of control surfaces. Fibre Tape Bottom Aileron Servo Lead Servo(For Aileron) Fibre Tape 17x420 mm Bottom View Bottom View Straper Fuel Tube d2xD4x4mm... - Page 5 Stabilizer & Elevator Joining surfaces should be clean and dry. Slightly roughen surfaces with sandpaper for best results. Bottom Fibre Tape Fibre Tape 17x300 mm Bottom View Vertical Fin & Rudder Fibre Tape 17x420 mm Fibre Tape Joining surfaces should be clean and dry. Slightly roughen Completed surfaces with sandpaper for best results.
-
Page 6: Main Landing Gear
2.6mm Collar PA2x8mm M3x3mm Set Screw Bottom View Bottom View Elevator Pushrod Ø1mm pilot holes for The Wings Maker horn are pre-drilled. Please look for pin-hole marks at under side of control surfaces. PB2x18 mm Screw TWM PL8210010 CLEVIS WRENCH... -
Page 7: Rudder Pushrod
Rudder Pushrod Ø1mm pilot holes for The Wings Maker horn are pre-drilled. Please look for pin-hole marks at under side of control surfaces. PB2x18 mm Screw Fuel Tube d2xD4x4mm Straper Horn Clevis PB2x18mm Pushrod Ø1.4x125mm Rudder Servo TWM PL8210010 CLEVIS WRENCH Please do not overtighten PB2x18mm screw. -
Page 8: Radio Equipment
Main Wing Wing Tube Aileron Servo Lead Ø6x360mm Rubber Band Completed Radio Equipment Install and arrange the equipment as shown in the picture. Outrunner Motor Receiver Battery Front Sponge Battery Tie Battery Cover Brushless Double Sided Tape Fuselage Bottom Completed... -
Page 9: Control Throws
Decals Bottom View Top View Control Throws Adjust the control throws as shown in the diagram. These throws are good for Elevator general flying. You can adjust according 50mm to your personal preference. 50mm Rudder 60mm 60mm Ailerons 40mm 40mm... - Page 10 KM0283010 Outrunner Motor. Handyman EP # Make sure the air field is spacious, never fly the plane too close to people and never get too close to a running propeller. Extreme caution should be exercised when working with electric powered models.
- Page 11 Pl8210010 Large Clevis • Small Clevis •...
- Page 12 THE WINGS MAKER...
