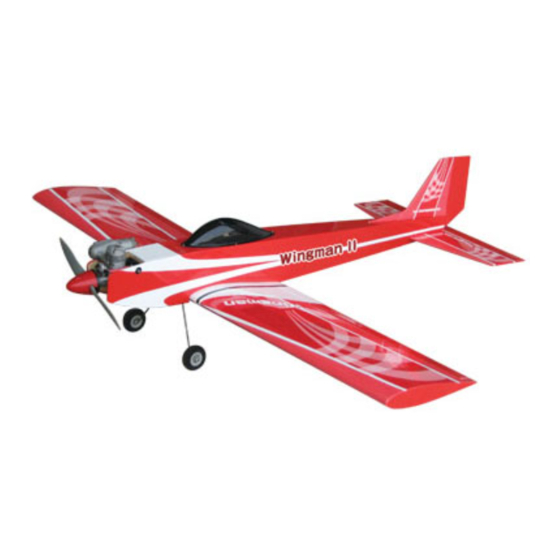

Before commencing assembly, please read these instructions thoroughly.
Wing Span: 50 in / 1270 mm
Wing Area: 484 sq in / 31.2 sq dm
Flying Weight: 3.5 lbs / 1600 g
Fuselage Length: 44.5 in / 1130 mm
Requires: (Engine powered) 2-stroke 0.40 engine
Warning ! This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this kind
of engine(electric) powered precision model. Operating this model without prior preparation may
cause injuries. Remember, safety is the most important thing. Always keep this instruction
manual at hand for quick reference.
* Specifications are subject to change without notice.*
THE WINGS MAKER
FACTORY PRE-FABRICATED
ALMOST-READY-TO-FLY (ARF) SERIES
MADE IN CHINA
www.thewingsmaker.com
Specifications
4-channel radio w/ 4 standard servos
(Electric powered) 450W motor system
4-channel radio w/ 3 standard servos
40A ESC, 4 cells 14.8V 3200 mAh Li- Po
battery & charger
INSTRUCTION MANUAL
Advertisement
Table of Contents
Related Manuals for The Wings Maker Wingsman II
Summary of Contents for The Wings Maker Wingsman II
-
Page 1: Specifications
Operating this model without prior preparation may cause injuries. Remember, safety is the most important thing. Always keep this instruction manual at hand for quick reference. * Specifications are subject to change without notice.* THE WINGS MAKER FACTORY PRE-FABRICATED ALMOST-READY-TO-FLY (ARF) SERIES MADE IN CHINA... -
Page 2: Before You Begin
INDEX BEFORE YOU BEGIN PARTS LIST ASSEMBLY P.3-P.11 SAFETY PRECAUTIONS P.11 BEFORE YOU BEGIN Read through the manual before you begin, so you will have an overall idea of what to do. Check all parts. If you find any defective or missing parts contact your local dealer. Please DRY FIT and check for defects for all parts that will require CA or Epoxy for final assembly. -
Page 3: Parts List
Parts List 1. MAIN WING -- 1 pair 10.SPINNER Ø52mm -- 1 pc. 2. WING JOINER 6x18x180mm -- 1 pc. 11. STRAPER -- 2 pcs FUEL TUBE d2xD4x4mm -- 2 pcs 3. FUEL TUBE d2xD4x4mm -- 4 pcs SPONGE 10x80x200mm -- 2 pcs CLEVIS -- 2 pcs STRAPER -- 2 pcs 12. -
Page 4: Aileron Servo
Apply instant type CA glue to both sides of each hinge. Main Wing Main Wing Wing Joiner Completed Please dry fit wing joiner into left and right wing to make sure they fit with the proper dihedral angle, mark the wing joiner if necessary. Apply epoxy glue to both sides of all surfaces in contact. -
Page 5: Main Landing Gear
Stabilizer & Elevator Temporary install the main wing, Apply instant type CA glue (Stabilizer) adjust leveling of the stabilizer to both sides of each hinge. to make is as parallel to the main (Main Wing) wing as possible. Completed Vertical Fin & Rudder PM3x60mm Screw Apply instant type CA glue to both sides of... -
Page 6: Elevator Pushrod
M2 Nut 2.1mm Collar PM2x8mm Ø2.1mm Collar 1.5mm PA3x12mm 3mm Set Screw Ø1mm pilot holes for The Wings Maker horn are pre-drilled. Elevator Pushrod Please look for pin-hole marks at under side of control surfaces. PB2x10mm Screw PB2x10mm Fuel Tube... - Page 7 10B if your model is electric GA029GPTS powered. To complete your Wingman ll (nitro powered), you need to purchase The Wings Maker GA029GPTS. Apply thread locker to screws. Blind nuts are off-centered to keep the spinner at the fuselge axis.
- Page 8 Electric If you want to use electric powered, please follw this step. M2.5x12mm GA029EPTS To Complete your Wingman lI (electric powered), you need d3xD7mm to purchase The M3x8mm Washer Wings Maker GA029EPTS. Battery Tie M3x12mm d3xD7mm Washer 40A Brushless ESC Spinner Ø52mm Double-Sided...
-
Page 9: Radio Equipment
Install and arrange the servos as shown in the diagram. Radio Equipment Engine Powered Charge Receptacles Rudder Servo Straper Front KP0041300 Receiver Throttle Servo Sponge Throttle Pushwire Fuel Tube Battery d2xD4x4mm Ø1.4x655mm w/ Plastic Tube Elevator Servo d2xD3x240mm Bottom View Electric Powered Front Fuel Tube... - Page 10 Main Wing HM3x25mm Screw d3xD7mm Washer HM3x25mm d3xD7mm Washer Plastic Plate 1x15x80mm d3xD7mm PM3x25mm Bottom View Washer Canopy PWA2.3x8mm Screw...
- Page 11 Wing Setting Adjust the wing and fuselage configuration as shown in the diagrams. A’ B’ D’ C’ A=A' B=B' C=C' D=D' Adjust the control throws as shown in Control Throws the diagram. These throws are good for general flying. You can adjust according Rudder to your personal preference.
-
Page 12: Important Safety Precautions
C.G. The ideal C.G. position is 76mm (3 in.) behind the leading edge measured at where the wing meets the fuselage. In order to obtain the C.G. specified, add weight to the fuselage or move the battery position. Check the C.G. before flying. 76 mm 76 mm 3 in... - Page 13 LINKAGE CONNECTOR HW7111050 & HW7111060 Drill 2mm hole at servo horn. Insert linkage connector into servo horn. Make sure shoulder of screw is cleared from servo horn. Add washer to reduce play if necessary. Shoulder Tighten up the round nut against the shoulder.
-
Page 14: Optional Parts
Optional Parts ACCESSORIES) 37/ 48 Deluxe Fuel Filler Code No. Size Package KM0374810 PL8110030 15 x 22 x 49mm 1 x 1 pc 13860 8.5-18 Clevis Wrench Code No. Size Package 37.2 PL8210010 48.5 1 set (Front) and M2.5 (Back) Small Clevis Large Clevis 25mm (Front) and 15.5mm (Back) - Page 15 THE WINGS MAKER...
