MLC 206 Quick Start Guide, cont'd

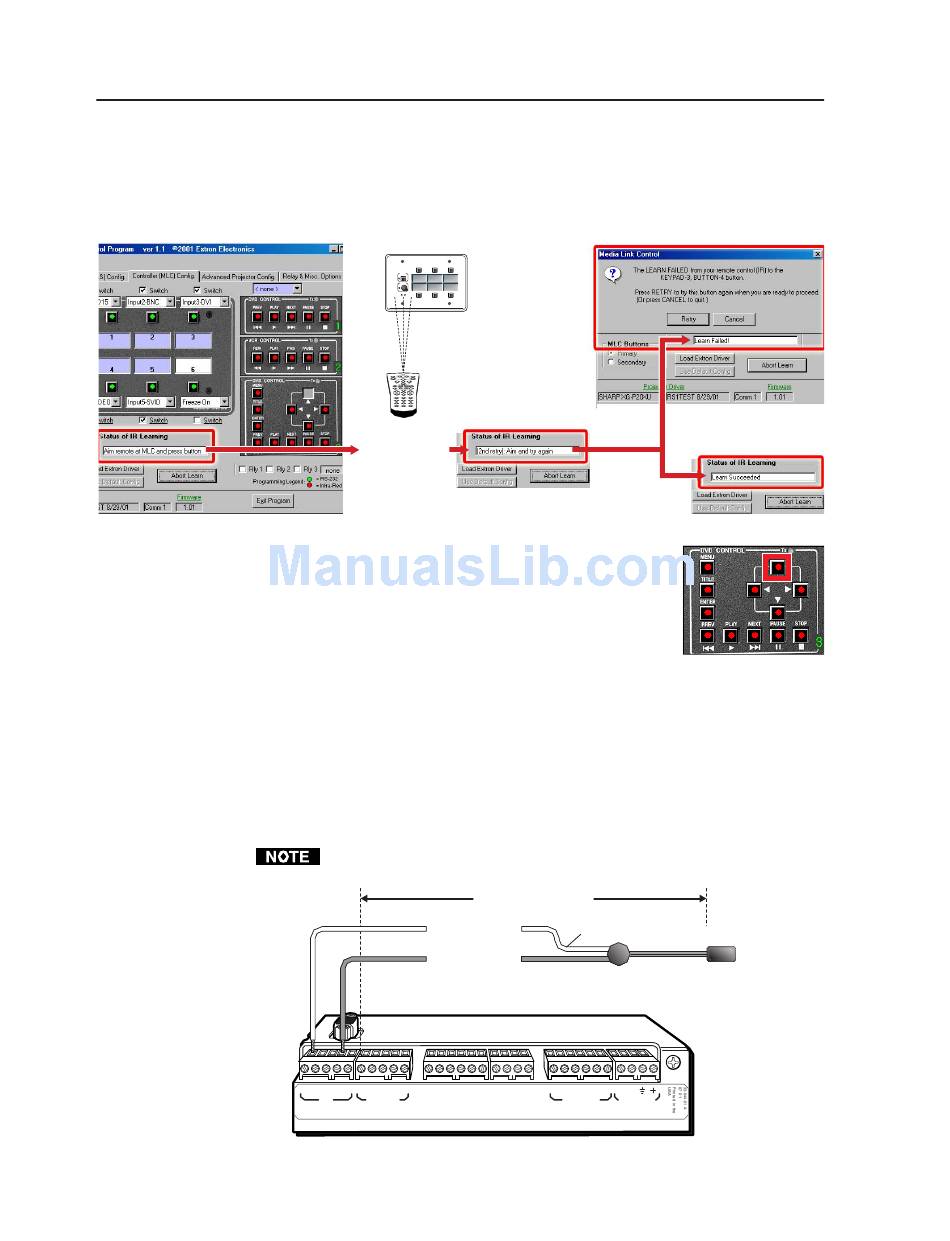

Step 4
Click on the OK button, and follow the on-screen directions.
During IR learning hold the device's remote control 4" to 14" (10 cm to 36 cm)
away from and directly in front of the MLC's IR pickup device.
Once the IR commands have been successfully learned, the
button will be shown with a
the software will prompt you to name the button/function.
Step 5
Set up other buttons as desired.
Step 6
Connect IR Emitters to the MLC. An emitter is required for each IR-controlled
device.
1.
2.
3.
6 MLC 206 • Quick Start Guide
DISPLAY
POWER
VCR DVD Laptop
VOLUME
MAX/
MIN
Extron
MLC 206
MediaLink Controller
MLC 206
4"–14"
(10–36 cm)
1 2 3
4 5 6
7 8 9
0
Aim the remote
control at the MLC's
IR pickup devices,
press the remote's
button, follow on-
screen prompts.
red
Disconnect the power from the MLC (and the optional MediaLink Switcher, if
applicable).
Install the IR Emitter(s) in the MLC's Display/Source Control IR port as
shown in the following illustration. and attach the head of each IR Emitter to
an IR-controlled device (VCR, DVD player, projector).
Place the IR emitter's head directly over the equipment's IR pickup device.
A Modulated IR
D Ground
A B C D E A B C D E 1A 1B 2A 2B 3A 3B
IR RS-232
Display/Source Control Relays
Reconnect the MLC and switcher (if applicable) to the power source.
dot (as shown at right) and
110 feet (33.5 m) maximum
White striped wire only
A B C D 1 2 3 4 5 6 A B
Tally Out MLS/Power
IR / RCM
Extron Switcher Control
OR
IR
Emitter
Connect
up to 4 IR
Emitters
(max.).
