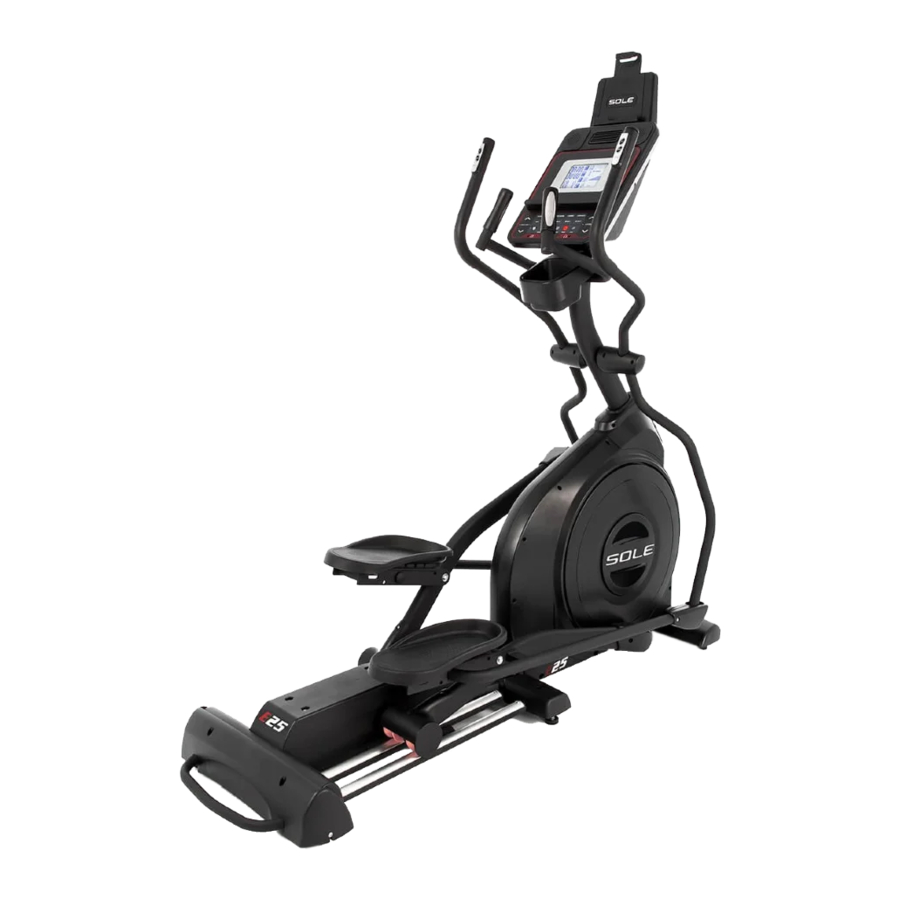

- Page 1 - SOL0032 - OWNER’S MANUAL PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW ELLIPTICAL!
- Page 2 TABLE OF CONTENTS Important Safety Instructions Important Electrical Instructions Important Operation Instructions Assembly Instructions Operation of Your Console General Maintenance Exploded View Diagram Parts List Manufacturer’s Limited Warranty ATTENTION THIS ELLIPTICAL IS INTENDED FOR RESIDENTIAL USE ONLY AND IS WARRANTED FOR THIS APPLICATION. ANY OTHER APPLICATION VOIDS THIS WARRANTY IN ITS ENTIRETY.
- Page 3 Through your dealer, SOLE will do all we can to make your ownership experience as pleasant as possible for many years to come. If not purchased direct from SOLE, the local dealership where you purchased this elliptical is your administrator for all SOLE warranty and service needs.
-
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: Read all instructions before using this appliance. DANGER - To reduce the risk of electric shock: Always unplug this appliance from the electrical outlet immediately after using and before cleaning. WARNING - To reduce the risk of burns, fire, electric shock, or injury to persons: An appliance should never be left unattended when plugged in. -
Page 5: Important Electrical Instructions
IMPORTANT ELECTRICAL INSTRUCTIONS WARNING! • NEVER remove any cover without first disconnecting AC power supply. • If A.C. voltage varies by ten percent (10%) or more, the performance of your elliptical may be affected. Such conditions are not covered under your warranty. -
Page 6: Assembly Pack Checklist
ASSEMBLY PACK CHECKLIST HARDWARE STEP 1 #119. 3/8” x 3” #94. 3/8” Flat Hex Head Bolt (3 pcs) Washer (2 pcs) #148. 3/8” x 3” #120. 3/8” Split Carriage Bolt Washer (2 pcs) (4 pcs) #121. 3/8” x 3/4” #149. 3/8” Curved #150. -
Page 7: Assembly Tools
HARDWARE STEP 3 #70. 5/16” #102. 5/16” Curved Washer (6 pcs) Hex Head Bolt (6 pcs) HARDWARE STEP 4 #79.M5 x 15mm #78. M5 x 10mm #68-3.M5 x 12mm Philips Head Screw Phillips Head Screw Philips Head Screw(2 pcs) (8 pcs) (4 pcs) ASSEMBLY TOOLS #108. -
Page 8: Assembly Instructions
ASSEMBLY INSTRUCTIONS CONSOLE MAST & CONSOLE Hardware Step 1 #94. 3/8” Flat 1. Locate the Console Mast (10) and Console Mast Cover (41) and slide the Washer (2 pcs) Cover onto the Mast as far as it will go. Make sure the Console Mast Cover #119. - Page 9 SWING ARMS Hardware Step 2 #147. 5/16” Flat Washer (2 pcs) 1 4 7 #151. 5/16” Button Head 1 5 1 Socket Bolt (2 pcs) 1 4 7 1 5 1 Slide the left and right Lower Swing Arms (4 & 5) onto the axle of the Mast and secure with two 5/16”...
- Page 10 CONNECTING ARMS & REAR RAILS S Hardware tep 3 #70. 5/16” Hex Head Bolt (6 pcs) #102. 5/16” Curved Washer (6 pcs) 1 0 2 1 0 2 1 0 2 1 0 2 1. Install the Left and Right Swing Arms (13 & 14) into the Lower Left and Right Lower Handle Bars (4 &...
- Page 11 PLASTIC COVERS Hardware Step 4 #78. M5 x 10mm Phillips Head Screw (4 pcs) #79. M5 x 15mm Phillips Head Screw (8 pcs) #68-3.M5 x 12mm Philips Head Screw (2 pcs) 6 8 - 2 6 8 - 3 Note: Use the M5 Allen Wrench/Phillips Head Screw Driver (108) to tighten hardware in this step. 1.
- Page 12 OPERATION OF YOUR ELLIPTICAL Console POWER UP Power the elliptical on by plugging it into an appropriate wall outlet. When it is first powered on, the console will perform an internal self-test. During this time all the lights will turn on, the Message Window display will show a software version (i.e.: VER 1.0), and the Distance Window will display an odometer reading.
-
Page 13: Console Operation
CONSOLE OPERATION QUICK START MODE This is the quickest way to start a workout. After the console powers up you just press the Start key to begin, this will initiate the Quick Start mode. In Quick Start, the time will count up from zero. The resis- tance level can be adjusted manually by pressing the Level UP/DOWN buttons. - Page 14 ENTERING A PROGRAM/CHANGING SETTINGS The profile for each program will be displayed in the dot matrix window. Press the Program key to select a program and begin customizing the settings. If you want to workout without entering new settings, then just press the Start key. This will bypass the programming of data and take you directly to the start of your workout.
-
Page 15: Programmable Features
PROGRAMMABLE FEATURES MANUAL PROGRAM The Manual program works as the name implies, manually. This means that you control the workload your- self and not the computer. 1. Press Manual key then press the Enter key. 2. The Message Window will ask you to enter your Age. You may adjust the age setting using the Level UP/ DOWN keys, then press the Enter key to accept the new number and proceed on to the next screen. - Page 16 PRESET PROGRAMS The console has five different programs that have been designed for a variety of workouts. These five programs have factory preset work level profiles for achieving different goals. Hill The Hill program simulates going up and down a hill. The resistance in the pedals will steadily increase and then decrease during the program.
- Page 17 USER PROGRAMS The customizable User programs allow you to build and save your own workout. You can build your own custom program by following the instructions below. 1. Select the User program (U1 or U2) by USER1 or USER2 program keys then press Enter. If you have already saved a program to either U1 or U2, it will be displayed and you are ready to begin.
- Page 18 HEART RATE The old motto, “no pain, no gain”, is a myth that has been overpowered by the benefits of exercising comfortably. A great deal of this success has been promoted by the use of heart rate monitors. With the proper use of a heart rate monitor, many people find that their usual choice of exercise intensity was either too high or too low and exercise is much more enjoyable by maintaining their heart rate in the desired benefit range.
- Page 19 RATE OF PERCEIVED EXERTION Heart rate is important but listening to your body also has a lot of advantages. There are more variables involved in how hard you should workout than just heart rate. Your stress level, physical health, emotional health, temperature, humidity, the time of day, the last time you ate and what you ate all contribute to the intensity at which you should workout.
-
Page 20: General Maintenance
General Maintenance 1. Wipe down all areas in the sweat path with a damp cloth after each workout. 2. If a squeak, thump, clicking or rough feeling develops, the main cause is most likely one of two reasons: The hardware was not sufficiently tightened during assembly. All bolts that were installed during assembly need to be tightened as much as possible. -
Page 21: Exploded View Diagram
Exploded View Diagram... -
Page 22: Parts List
Parts List Part Number Part Description Qty per unit Main Frame Pedal Arm (L) Pedal Arm (R) Lower Handle Bar (L) Lower Handle Bar (R) Connecting Arm (L) Connecting Arm (R) Cross Bar Console Mast Idler Wheel Assembly Crank Axle Swing Arm (L) Swing Arm (R) Front Stabilizer... - Page 23 Part Number Part Description Qty per unit 31~13 Fan Fixing Plate 31~14 Receiver, HR Assembly (Optional) 1000mm_Computer Cable 600mm_DC Power Cable Gear Motor 300mm_Sensor W/Cable 850mm_Handpulse W/Cable Assembly 37~4 Ø3 × 20mm_Tapping Screw Power Adaptor Ø82_Slide Wheel , Urethane 3/8" × 2"_Flat Head Socket Bolt 40~1 40~2 Ø35 ×...
- Page 24 Part Number Part Description Qty per unit 5 × 16mm_Tapping Screw 4.8 × 38mm_Sheet Metal Screw 5 × 16mm_Tapping Screw Ø17_C Ring M8 × 7T_Nyloc Nut 1/4"_Nyloc Nut 3/8" × UNF26 × 4T_Nut 3/8" × UNF26 × 11T_Nut 3/8" × 7T_Nut 3/8"...
- Page 25 WARRANTY, SAFETY AND ASSEMBLY INFORMATION SOL0032 – E20 IMPORTANT Please read and retain this manual as it will assist with identification for parts and service. ------------------------------------------------------------------------------------------------------------------------------ BOYLES FITNESS warrants their elliptical to be free from defects in material and workmanship under normal use and service conditions.
- Page 26 Warranty Policy – November 1 2013 1. When purchased from an authorised BFE distributor the BFE warranty shall guarantee that all framework and components of your product are free from faulty manufacture. All faulty framework and components will be repaired or replaced as set out in this policy.
- Page 27 NOTE: Lifetime refers to the warranty coverage of the units expected service life. NOT the lifetime of the purchaser. Servicing/Spare Parts- As with any mechanical equipment general maintenance should be performed on a regular basis by an authorised retailer or service technician. This will ensure longevity of the product and ensure that it is kept working in optimum condition.
