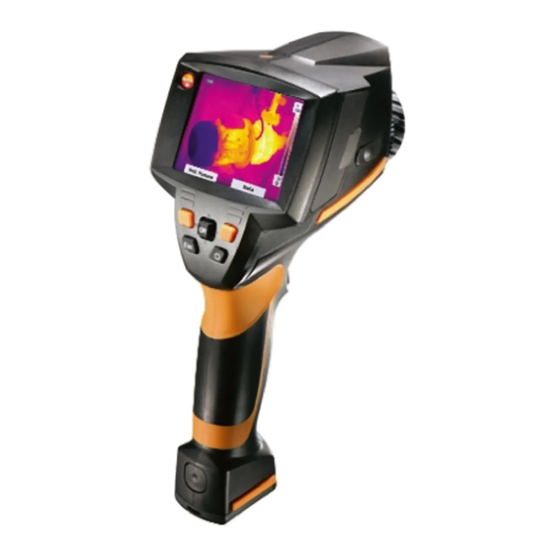

testo 875 · Thermal imager
Brief instructions
Apply
Commissioning
Push the
rechargeable battery
1
way into the rechargeable battery slot until
this is flush with the bottom of the handle.
- The thermal imager starts automatically.
Remove protective film from the
2
- Instrument language (Language) and
temperature unit (Unit) can be set:
Move
Joystick
3
desired option.
Press
.
[OK]
4
Move
Joystick
5
setting.
Press [OK].
6
Press
[Apply]
7
settings.
Press
[
]
to switch off the thermal
8
imager.
Connect
power supply
9
Completely charge battery (3 hours).
10
Insert
Memory card
11
- The camera is now ready for operation.
display
up / down to select the
up / down to change the
function key to apply the
( )
.
in the card slot (SD)
en
all the
.
.
Advertisement
Table of Contents
Related Manuals for TESTO 875
Summary of Contents for TESTO 875
- Page 1 875 · Thermal imager Brief instructions Commissioning Push the all the rechargeable battery way into the rechargeable battery slot until this is flush with the bottom of the handle. - The thermal imager starts automatically. Remove protective film from the...
-
Page 2: Getting To Know The Menu
Switching on / off Remove protection cap from the lens. Switch on: Press [ - The measurement view is opened after the warm-up period. - The thermal imager performs an automatic zeroing approx. every 60 sec. This can be recognized by a ““click””. The image is frozen briefly when this occurs. - Page 3 Scale…… Image type Left quick select button : Adjust scaling. Right quick select button testo 875-1: Change colour palette. testo 875-2: Select image type. Changing assignment of the quick select buttons Image type Palette Change the left or right quick select button: Emissivity...
- Page 4 0970 8753 en 01 V01.00 en-US...
