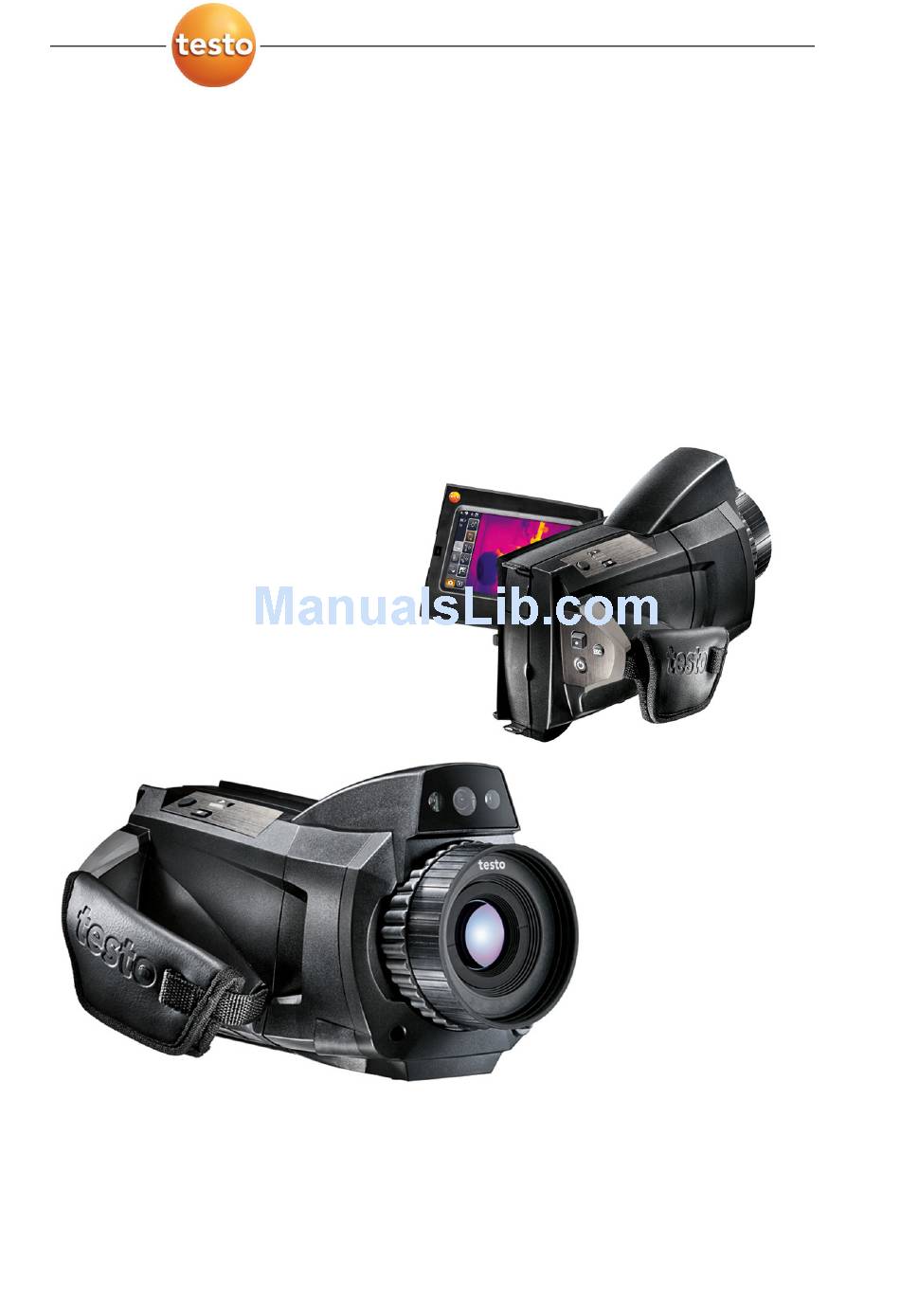

- Page 1 885 / testo 890 Thermal Imager Brief instructions...
- Page 2 Overview Operating concept The imager can be operated in two different ways. Operation via touchscreen offers quick access to functions. Joystick operation enables the imager to be operated with one hand. Capacitive touchscreen. Operation is only possible with a bare fingertip (no gloves) or a conductive stylus pen.
-
Page 3: Initial Operation
Menu bar / tabbed windows, menu Functions are called up via the menu bar. The menu bar comprises 3 tabs. Different functions are available depending on which tab is selected. Via the menu, most functions from the 3 tabs and many additional functions can be called up. Open menu: >... - Page 4 ✓ The Country settings dialogue box is opened. 1. Touch the required language. If necessary, scroll with to display other languages. The activated language is indicated with a tick. 2. Touch to change the unit. The activated unit is shown on the top right of the display.
-
Page 5: Basic Operating Steps
Initial charging of the rechargeable battery The imager is delivered with a partially charged battery. Fully charge the battery before use. > Connect the country-specific adapter required for the existing mains to the mains unit. 1. Open the cover of the top interface terminal (1). - Page 6 Rotating the display/handle CAUTION Display may be damaged! > Do not hold the imager by the fold-out display. > Only fold out and rotate display up to the noticeable stop. Rotating the display > Fold out the display (max. 90°) and rotate (max. -180°/+90°). Rotating the handle 1.
- Page 7 Manually focusing the image CAUTION Auto mechanism may be damaged! > Only turn focusing ring when auto-focus is deactivated (status display top left: > Deactivate auto-focus: Status is displayed (top left). > Turn the lens focusing ring (1) until the image is in sharp focus.
- Page 8 0971 8851 en 01 V01.00 en-US...
