CAME V6000 Installation Manual page 5

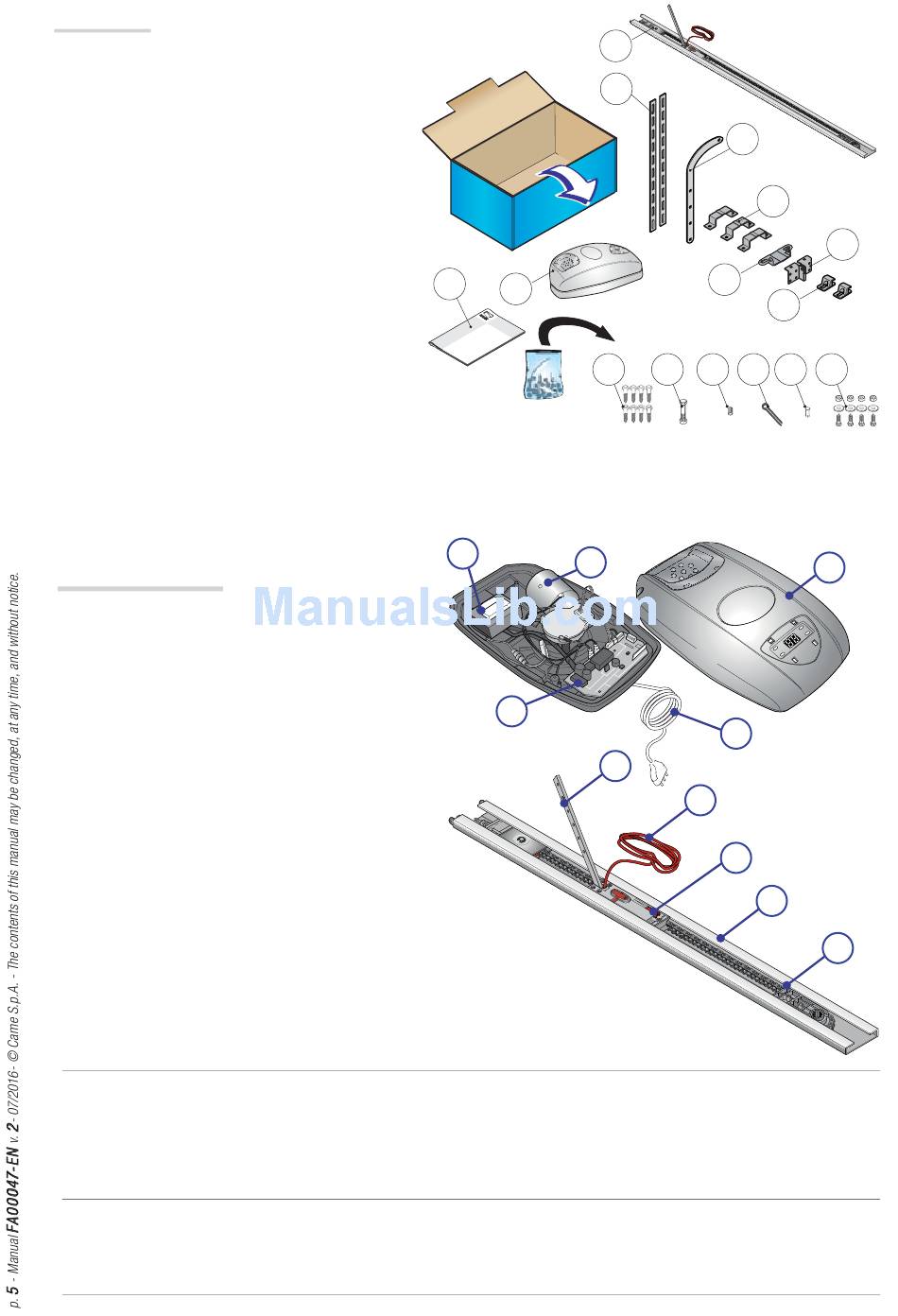

Packing list
1. one Operator
2. one Installation Manual
3. two anchoring perforated-plates.
4. one Curved lever
5. Two support braces
6. Three U-shaped braces
7. One guide-fitting brace
8. One door fitting brace
9. Eight self-drilling hexagonal head M6x15 screws
10. One hexagonal M6x80 nut and bolt
11. One (Ø8x25) drive-shaft adapter
12. One 3x20 linchpin
13. One pin
14. Four M8X20 hexagonal screws with washers
and nuts
15. One slide guide
Description of parts
Operator
1. Cover
2. Gearmotor
3. Transformer
4. Control board
5. Power supply cable
Pre-assembled guide package
6. Guide
7. Chain or belt
8. Skid
9. Transmission arm
10. Release cord
Slide guides
001V06001
Chain guide T = 3.02 m.
Counter-balanced overhead doors up to 2.4 m in height
- Counter-balanced overhead doors up to 2.25 m in height
- Sectional* doors up to 2.20 m in height.
001V06002 Chain guide T = 3.52 m.
- Counter-balanced overhead doors up to 2.75 m in height.
- Sectional* doors up to 2.70 m in height.
