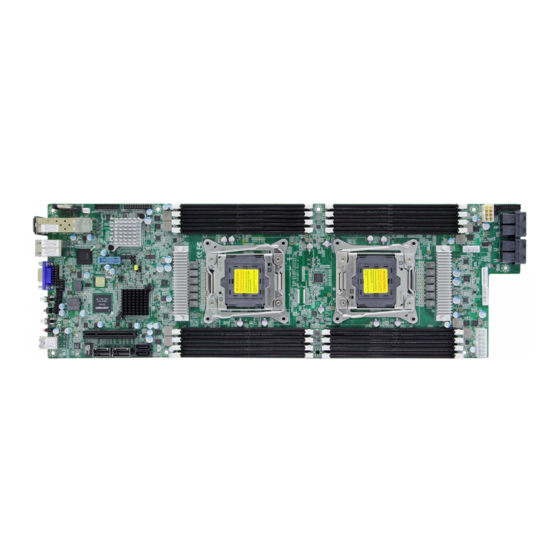

AIC Aidos-I User Manual

Server motherboard
Hide thumbs

Advertisement

Quick Links

Download this manual
Aidos-I
Server MotherBoard
User's Manual
UM_Aidos-I_v.2_060216

Advertisement

loading
Need help?

Need help?

Do you have a question about the Aidos-I and is the answer not in the manual?

Questions and answers

Related Manuals for AIC Aidos-I

Summary of Contents for AIC Aidos-I

  • Page 1 Aidos-I Server MotherBoard User's Manual UM_Aidos-I_v.2_060216...
  • Page 2 CONTENTS SAFETY INSTRUCTIONS ��������������������������������������������������������� i About This User Manual ����������������������������������������������������� ii Chapter 1� Prodcut Introduction ����������������������������������������������������������������1 1�1 General Information ���������������������������������������������������������������������������1 1.2 Specifications �������������������������������������������������������������������������������������2 Chapter 2� Hardware Installation ���������������������������������������������������������������3 2�1 Central Processing Unit (CPU) �����������������������������������������������������������3 2�2 System Memory ��������������������������������������������������������������������������������10 Chapter 3� Motherboard Settings ������������������������������������������������������������14 3�1 Motherboard block diagram ����������������������������������������������������������14 3�2 Motherboard Layout ������������������������������������������������������������������������15 3�3 Motherboard Content List ����������������������������������������������������������������15...
  • Page 3 Copyright © 2016 AIC, Inc� All Rights Reserved� This document contains proprietary information about AIC products and is not to be disclosed or used except in accordance with applicable agreements.

  • Page 4: Safety Instructions

    SAFETY INSTRUCTIONS When installing, operating, or performing maintenance on this equipment, the following safety precautions should always be observed in order to reduce the risk of fire, electric shock, and personal injury. Read and understand all instructions. • Observe warnings and instructions marked on the product. •...
  • Page 5 About This User Manual This document provides a detailed description of including: • General Features of the Product • Hardware Setup • Motherboard Settings • BIOS Configuration and Settings • BMC Configuration and Settings...
  • Page 6 Chapter 1. Product Introduction Chapter 1� Prodcut Introduction 1�1 General Information Aidos-I, a server grade motherboard supports dual Intel® Haswell – EP Processor. Aidos-I User's Manual...

  • Page 7: Specifications

    Serial Port 2 x internal COM pin-headers Debug display pin-header, GPIO port Others IPMB pin-header • 1 x power button Additional • 1 x reset button Information • 1 x ID button • 1 x system failure LED Aidos-I User's Manual...
  • Page 8 • Proceed to screw 2 and loosen it by giving it two rotations and stop (see letter B). Similarly, loosen screws 3 and 4. Repeat steps A and B by giving each screw two rotations each time until all screws are loosened. • Lift the heatsink straight up (see letter C). Aidos-I User's Manual...
  • Page 9 2.1.2.1 Unlatch the CPU Load Plate • Push the lever handle labeled “OPEN 1st” (see letter A) down and toward the CPU socket. Rotate the lever handle up. • Repeat the steps for the second lever handle (see letter B). Aidos-I User's Manual...
  • Page 10 2.1.2.2 Lift open the Load Plate • Rotate the right lever handle down until it releases the Load Plate (see letter A). • While holding down the lever handle, with your other hand, lift open the Load Plate (see letter B). Aidos-I User's Manual...
  • Page 11 The processor must align correctly with the socket opening before installation. DO NOT DROP the processor into the socket. NOTE : When possible, a CPU insertion tool should be used when installing the CPU. Aidos-I User's Manual...
  • Page 12 Make sure the load plate tab engages under the socket lever when fully closed. • b.Repeat the steps to latch the locking lever on the other side (see letter C). Latch the levers in the order as shown. Aidos-I User's Manual...
  • Page 13 (see letter D). Similarly, engage screws 3 and 4. • Repeat steps C and D by giving each screw two rotations each time until each screw is lightly tightened up to a maximum of 8 inch-lbs torque (see letter E). CAUTION: Do not over-tighten fasteners. Aidos-I User's Manual...
  • Page 14 Remove the processor by carefully lifting it out of the socket, taking care NOT to drop the processor and not touching any pins inside the socket. Install the socket cover if a replacement processor is not going to be installed. Aidos-I User's Manual...
  • Page 15 This server board supports up to sixteen DDR4 1333/1600/1866/2133 Registered ECC SDRAM(RDIMM) / Load-Reduced DIMM (LRDIMM). CPU0_DIMMC0 CPU0_DIMME0 CPU0_DIMMC1 CPU0_DIMME1 CPU0_DIMMD0 CPU0_DIMMF0 CPU0_DIMMD1 CPU0_DIMMF1 JCPU0 JCPU1 Reset Button CPU0_DIMMB1 CPU0_DIMMH1 CPU0_DIMMB0 CPU0_DIMMH0 SATA4 CPU0_DIMMA1 CPU0_DIMMG1 SATA0~3 SATA0~3 CPU0_DIMMA0 CPU0_DIMMG0 SATA5 Aidos-I User's Manual...
  • Page 16 JDIMMH1 JDIMMB0 JDIMMH0 JDIMMA1 JDIMMG1 JDIMMA0 JDIMMG0 JDIMMC0 JDIMME0 JDIMMC1 JDIMME1 JDIMMF0 JDIMMD0 JDIMMF1 JDIMMD1 CPU0 CPU1 JDIMM_C0 JDIMM_E0 8 DIMMs JDIMM_D0 JDIMM_F0 CPU0 CPU1 JDIMM_B0 JDIMM_H0 JDIMM_A0 JDIMM_G0 JDIMMB1 JDIMMH1 JDIMMB0 JDIMMH0 JDIMMA1 JDIMMG1 JDIMMA0 JDIMMG0 Aidos-I User's Manual...
  • Page 17 Chapter 2. Hardware Setup Aidos-I User's Manual...
  • Page 18 Chapter 2. Hardware Setup 2. Unlock a DIMM socket by pressing the retaining clips outward. Insert module vertically and press down until it snaps into place. Note: DIMM notch and socket bump must align as shown. DIMM notch Aidos-I User's Manual...
  • Page 19 Chapter 3. Motherboard Settings Chapter 3� Motherboard Settings This section describes the jumpers, internal connectors, and LEDs setting on Aidos motherboard. Motherboard layout and important jumper settings are listed as below. 3�1 Motherboard block diagram Aidos-I User's Manual...
  • Page 20 Mode ME Force XDP CONN Recovery Mode Flash Descriptor JEDEC Specified DDR4 DIMM Sockets Security Connector override CPU Sockets AIC GPIO JCPU0 /JCPU1 Debug Port FAN Front BMC Debug MDIPHY Front mode (BMC management port) Clear CMOS Aidos-I User's Manual...
  • Page 21 Chapter 3. Motherboard Settings 3�4 Expansion Slots PCI Express 8643 CONNECT PCI Express 8643 CONNECT 82599 82599 I350 I350 PCI Express 8643 CONNECT PCI Express 8643 CONNECT _PCI Express x8 Aidos-I User's Manual...
  • Page 22 CPU0_DIMMC0C PU0_DIMME0 CPU0_DIMMC1 CPU0_DIMME1 CPU0_DIMMD0 CPU0_DIMMF0 SFP+ CPU0_DIMMD1 CPU0_DIMMF1 RJ45 JCPU0 JCPU1 SPI (U10) LED6 Reset Button LED10 CPU0_DIMMB1 CPU0_DIMMH1 CPU0_DIMMB0 CPU0_DIMMH0 USB 3.0 SATA4 CPU0_DIMMA1 CPU0_DIMMG1 LED7 SATA0~3 SATA0~3 CPU0_DIMMA0 CPU0_DIMMG0 SATA5 SPI (U10) Reset Button Aidos-I User's Manual...
  • Page 23 Chapter 3. Motherboard Settings Internal Connectors/Jumpers Aidos-I User's Manual...
  • Page 24 Internal Connectors/Jumpers DCDB DSRB DACROA RXDB RTSB DACGOA RXDB TXDB CTSB DDC_DATAO DTRB TXDB KEY (no pin) DACBOA AHSYNCO DVO_5V AVSYNCO DDC_CLKO PWR_BTN- I2C1SDA CLK_33M_DP80 RST_BTN- PCH_LFRAME_N PCH_GPIO61 TXDB RST_PLTRST_N AST_SERIRQ I2C1SCL RXDB PCH_LPC_LAD3 PCH_LPC_LAD2 +3.3V PCH_LPC_LAD1 PCH_LPC_LAD0 Aidos-I User's Manual...
  • Page 25 Chapter 3. Motherboard Settings Internal Connectors/Jumpers Aidos-I User's Manual...
  • Page 26 CPU0_DIMMC0C PU0_DIMME0 CPU0_DIMMC1 CPU0_DIMME1 CPU0_DIMMD0 CPU0_DIMMF0 SFP+ CPU0_DIMMD1 CPU0_DIMMF1 RJ45 JCPU0 JCPU1 SPI (U10) LED6 Reset Button LED10 CPU0_DIMMB1 CPU0_DIMMH1 CPU0_DIMMB0 CPU0_DIMMH0 USB 3.0 SATA4 CPU0_DIMMA1 CPU0_DIMMG1 LED7 SATA0~3 SATA0~3 CPU0_DIMMA0 CPU0_DIMMG0 SATA5 SATA4 SATA0~3 SATA0~3 SATA5 Aidos-I User's Manual...
  • Page 27 Chapter 3. Motherboard Settings Internal Connectors/Jumpers SATA5 SATA0~3 SATA0~3 SATA4 Aidos-I User's Manual...
  • Page 28 Chapter 3. Motherboard Settings Internal Connectors/Jumpers +12V +12V +12V +12V +12V +5V_AUX POWER OK PS_ON# MDI_PHY1_TX_P +12V MDI_PHY1_TX_N MDI_PHY1_RX_P +12V MDI_PHY1_RX_N +12V +12V Aidos-I User's Manual...
  • Page 29 CPU0_DIMMC1 CPU0_DIMME1 CPU0_DIMMD0 CPU0_DIMMF0 SFP+ CPU0_DIMMD1 CPU0_DIMMF1 RJ45 JCPU0 JCPU1 SPI (U10) LED6 Reset Button LED10 CPU0_DIMMB1 CPU0_DIMMH1 CPU0_DIMMB0 CPU0_DIMMH0 USB 3.0 SATA4 CPU0_DIMMA1 CPU0_DIMMG1 LED7 SATA0~3 SATA0~3 CPU0_DIMMA0 CPU0_DIMMG0 SATA5 Reset Button SATA4 SATA0~3 SATA0~3 SATA5 Aidos-I User's Manual...
  • Page 30 ME Recovery Mode Normal Normal Open Open (Default) (Default) Setting Setting Short Pin1-2 Normal BIOS Recovery Mode (Default) Normal C lear CMOS Open Pin2-3 (Default) Setting Setting Pin1-2 Normal Short Reset BMC (Default) C lear CMOS Normal Pin2-3 Open Aidos-I User's Manual...
  • Page 31 Chapter 3. Motherboard Settings 3�6 LEDs 3.6.1 Front Panel LED Definition Aidos-I User's Manual...
  • Page 32 Chapter 3. Motherboard Settings 3.6.2 Rear Panel LED Definition Aidos-I User's Manual...
  • Page 33 CPU0_DIMMD1 CPU0_DIMMF1 RJ45 JCPU0 JCPU1 SPI (U10) LED6 Reset Button LED10 CPU0_DIMMB1 CPU0_DIMMH1 CPU0_DIMMB0 CPU0_DIMMH0 USB 3.0 SATA4 CPU0_DIMMA1 CPU0_DIMMG1 LED7 SATA0~3 SATA0~3 CPU0_DIMMA0 CPU0_DIMMG0 SATA5 SPI (U10) LED6 Reset Button LED10 SATA4 LED7 SATA0~3 SATA0~3 SATA5 Aidos-I User's Manual...
  • Page 34 Chapter 3. Motherboard Settings Aidos-I User's Manual...
  • Page 35 Chapter 4. BIOS Configuration and Settings Caution: When Quiet Boot IS enabled, OEM LOGO WILL BE displayed INSTEAD OF POST MESSAGES. 1.Press ESC to run the setup procedure. 2.There will be a message “Esc is pressed.” displayed on the diagnostics screen. Aidos-I User's Manual...
  • Page 36 Chapter 4. BIOS Configuration and Settings 3.Identify the BIOS Version Caution: For the official released version, the last digit of the BIOS Version must end in an "0." 4.Load Optimal Default setting Aidos-I User's Manual...
  • Page 37 Chapter 4. BIOS Configuration and Settings 5.Save the setting and exit the BIOS setup utility. Aidos-I User's Manual...
  • Page 38 Chapter 4. BIOS Configuration and Settings 4�1 Updating BIOS Important Notes: To identify the current BIOS version, please check out on BIOS setup. Aidos-I User's Manual...
  • Page 39 To use this utility, you must include the flash.bat , H2OFFT-D.exe, and bin file in the same folder. Please follow the instructions to update whole flash part: Execute flash.bat to update Flash in the DOS environment. Reboot system. Aidos-I User's Manual...
  • Page 40 Chapter 5. BMC Configuration and Settings Chapter 5. BMC Configuration and Settings Insert Ethernet LAN cable into the BMC LAN port. There are two methods to setup BMC IP: shared NIC LAN port (LAN Channel Number 8) Aidos-I User's Manual...
  • Page 41 Chapter 5. BMC Configuration and Settings 5�1 Method 1 (Use the BIOS setup) • BIOS SETUP g Advanced g H2O IPMI Configuration g BMC Configuration g Lan Port Configuration g Dedicated g IPv4 Source g Static Aidos-I User's Manual...
  • Page 42 Chapter 5. BMC Configuration and Settings Aidos-I User's Manual...
  • Page 43 Chapter 5. BMC Configuration and Settings Aidos-I User's Manual...
  • Page 44 Chapter 5. BMC Configuration and Settings 2. Input IP address. Set static IP. Aidos-I User's Manual...
  • Page 45 Chapter 5. BMC Configuration and Settings 3. Input subnet mask address. Aidos-I User's Manual...
  • Page 46 5�2 Method 2 (Use a Dos tool - Syscheck) 1. Type : sc –lanset 2. Modify IP setting Note: type 1 for selecting static IP mode or type 2 for selecting DHCP mode. 3. Input IP address Aidos-I User's Manual...
  • Page 47 Below IP address is an example using a default IP setting. User is allowed to change the IP address for realistic use. 5. Finish BMC IP configuration. Note: Type sc.exe –langet command to obtain BMC IP and MAC address. Aidos-I User's Manual...
  • Page 48 Password: admin Note: The default user name and password are in lower-case characters. Note: Users who login with the admin user name and password will have full administrative power. The admin password can be changed after login. Aidos-I User's Manual...
  • Page 49 Chapter 5. BMC Configuration and Settings 3. Information of firmware. 4. Server Health - Sensor Readings: Aidos-I User's Manual...
  • Page 50 Chapter 5. BMC Configuration and Settings 5. Configuration Refer to AIC BMC User Guide for more information on AIC BMC. Mouse Mode setting: • For Windows OS environment, set mode to absolute. • For Linux OS environment, set mode to relative.
  • Page 51 Chapter 5. BMC Configuration and Settings 6. Remote Control: Environmental setting: Aidos-I User's Manual...
  • Page 52 Chapter 5. BMC Configuration and Settings Press “ALT+C” for local and remote OS mouse control switching. Aidos-I User's Manual...
  • Page 53 A:>cd AIDOSAI010010 A:\ AIDOSAI010010>a.bat This is just an example. The latest BMC firmware version is available from the FAE or AIC website. 4. After update BMC firmware, please power off and then power on system. 5.4.2 Linux Environment 1. Boot to Linux 2.
  • Page 54 Chapter 6� Chapter 1. Product Introduction Technical Support www�aicipc�com • TAIWAN Tel: +886 3 433 9188 Fax: +886 3 287 1818 Email : sales@aicipc�com�tw • CHINA Tel: +86�21�54961421, +86�21�54961422 Fax: Extension: 608 Email Technical Support: support@aicipc�com • AMERICA - West coast Tel: +1�909�895�8989 Fax: +1�909�895�8999 Email : sales@aicipc�com...
