Display
1
- colour graphical display
LED
2
- indicates enabled heating
Alphanumeric keypad
3
- keys 0-9 (a-z)
ESC key
4
- termination of functions
Exp key
5
- input of exponent of number
Shift key
6
- switching of keys functionality
Power key
7
- power on/off of the device
Sign key
8
- input of plus/minus sign
www.appliedp.com

3. Measuring Unit

3.1 Front panel

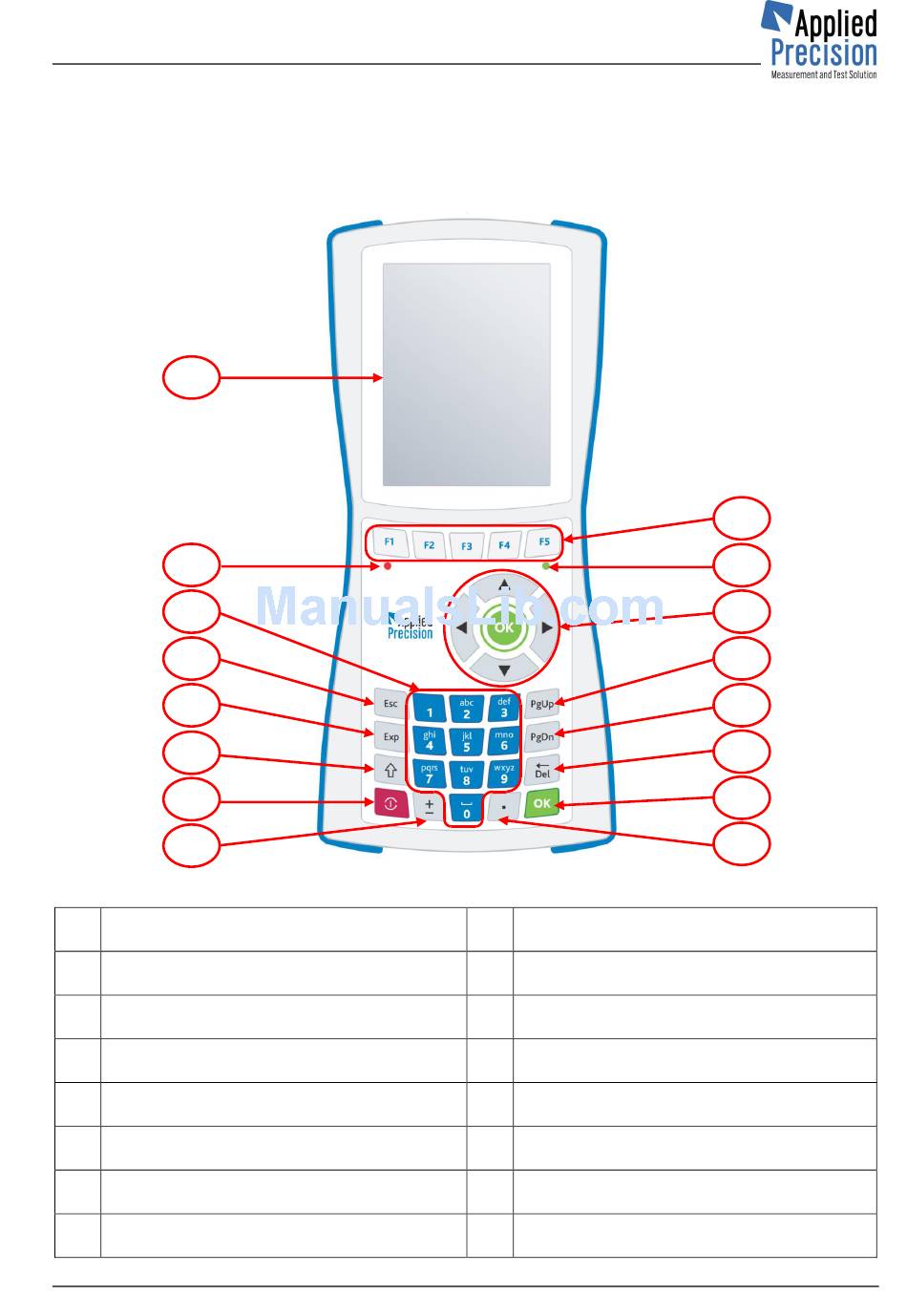

Front panel of the device
Function keys
9
- quick access to functions
Indicator of charging batteries
10
- green LED indicating charging status
Choice keys
11
- arrows and OK
PgUp key
12
- paging upwards
PgDn key
13
- paging downwards
Del key
14
- deleting
OK key
15
- confirmation of choice
Point key
16
- decimal point
9
10
11
12
13
14
15
16
