Measuring unit of ISOMET 2114 is equipped with color 3.5" TFT LCD display, alpha-numeric
keyboard, USB and RS232 communication ports, which ensure its simple operation.
Switching on and switching off the device is done by pressing the red Power key for approx. 3
seconds. Pressing the Power key for shorter time toggles the display backlight only. The measuring
unit should be switched on with disconnected battery charger, USB connection and with connected
measurement probe. When the instrument is switched on, display backlight turns on and after
initializing procedures and loading parameters from connected probes, the Stand By page appears
on the display.

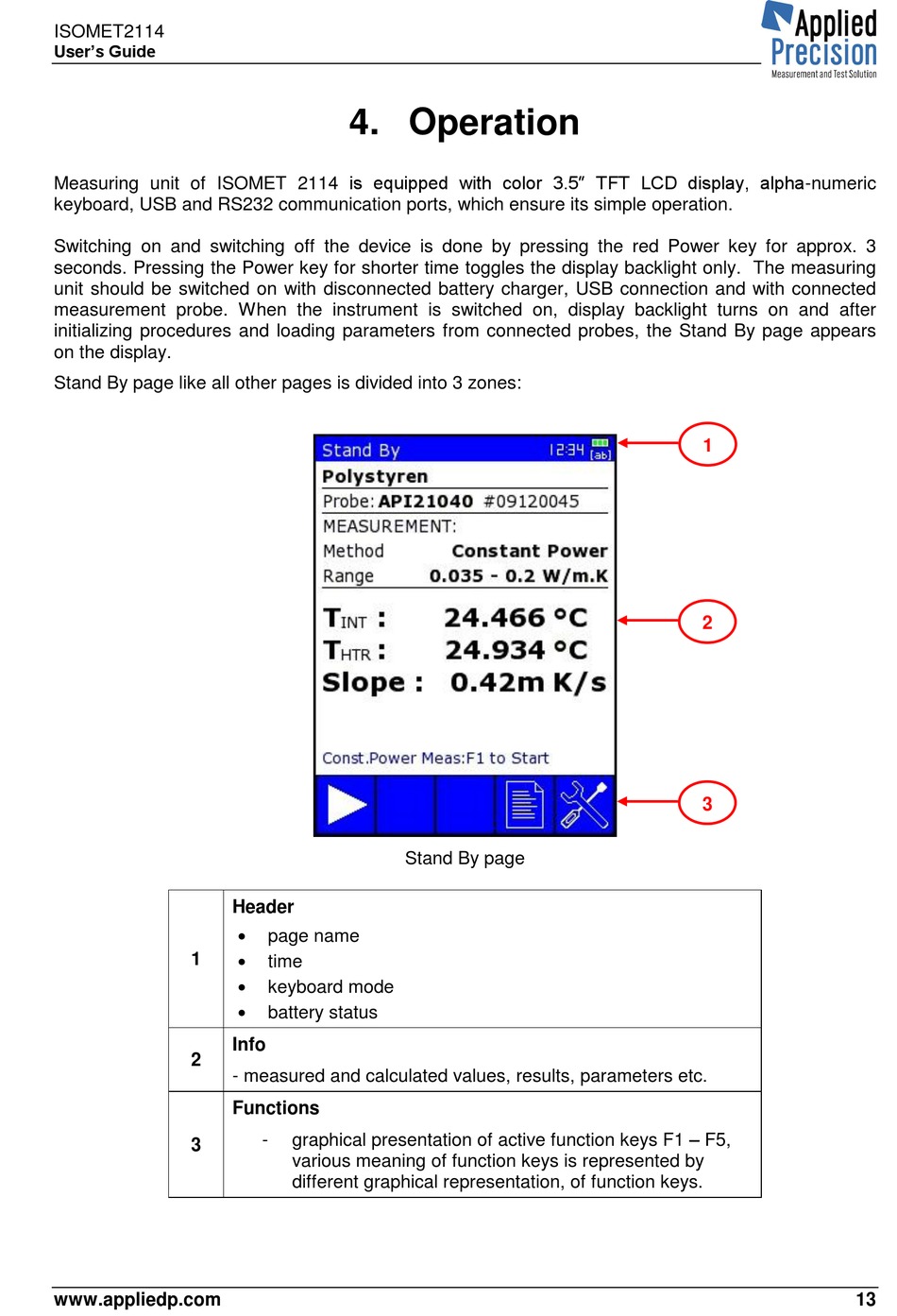

Stand By page like all other pages is divided into 3 zones:
1
2
3
www.appliedp.com

4. Operation

Header

page name

time

keyboard mode

battery status
Info
- measured and calculated values, results, parameters etc.
Functions
graphical presentation of active function keys F1 – F5,
-
various meaning of function keys is represented by
different graphical representation, of function keys.
Stand By page
1
2
3
