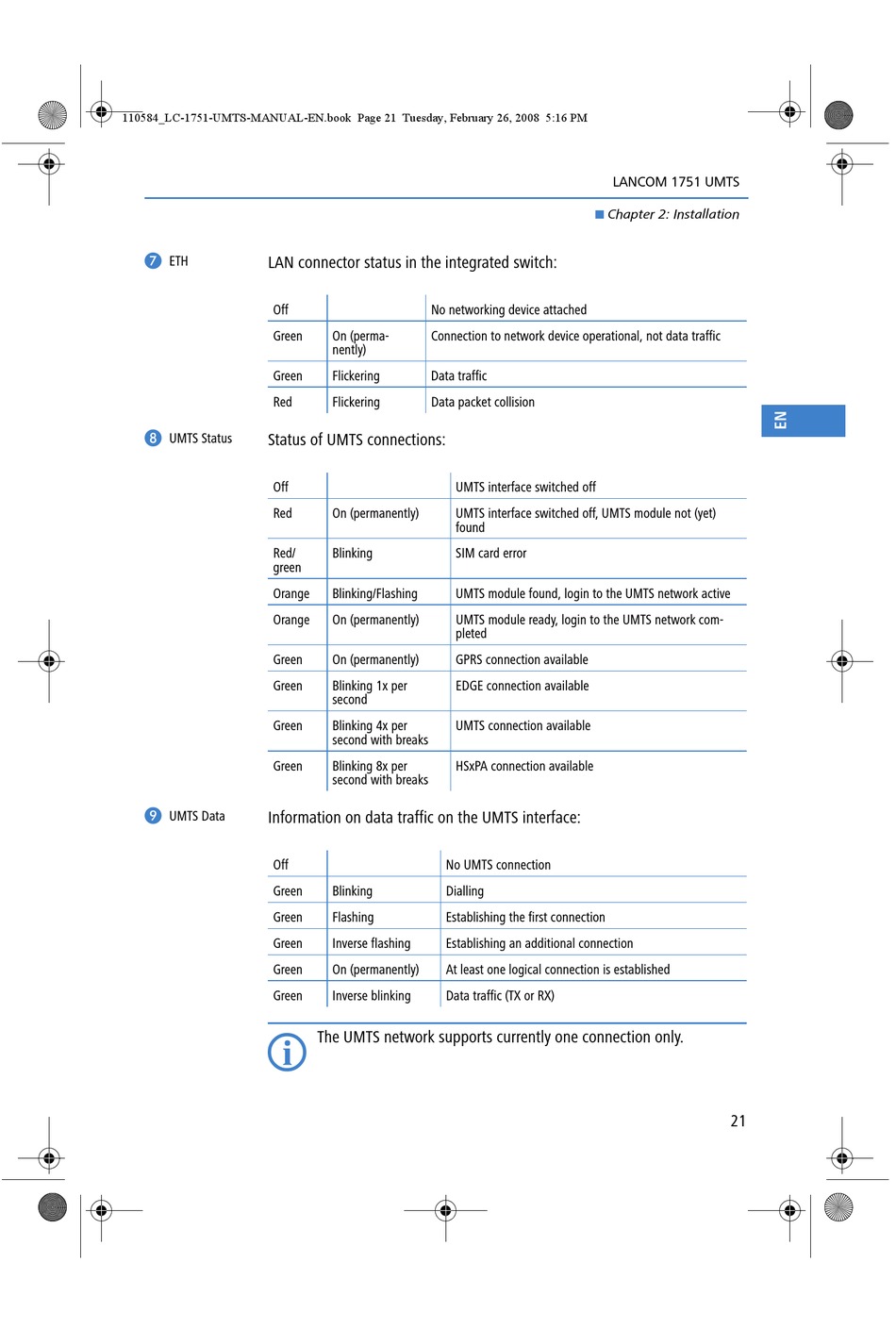

Lancom 1751 UMTS Manual page 21

110584_LC-1751-UMTS-MANUAL-EN.book Page 21 Tuesday, February 26, 2008 5:16 PM
LAN connector status in the integrated switch:
ETH
Off
Green
Green
Red
UMTS Status Status of UMTS connections:
Off
Red
Red/
green
Orange
Orange
Green
Green
Green
Green
Information on data traffic on the UMTS interface:
UMTS Data
Off
Green
Green
Green
Green
Green

No networking device attached
On (perma- Connection to network device operational, not data traffic
nently)
Flickering Data traffic
Flickering Data packet collision
UMTS interface switched off
On (permanently) UMTS interface switched off, UMTS module not (yet)
found
Blinking SIM card error
Blinking/Flashing UMTS module found, login to the UMTS network active
On (permanently) UMTS module ready, login to the UMTS network com-
pleted
On (permanently) GPRS connection available
Blinking 1x per EDGE connection available
second
Blinking 4x per UMTS connection available
second with breaks
Blinking 8x per HSxPA connection available
second with breaks
No UMTS connection
Blinking Dialling
Flashing Establishing the first connection
Inverse flashing Establishing an additional connection
On (permanently) At least one logical connection is established
Inverse blinking Data traffic (TX or RX)
The UMTS network supports currently one connection only.
