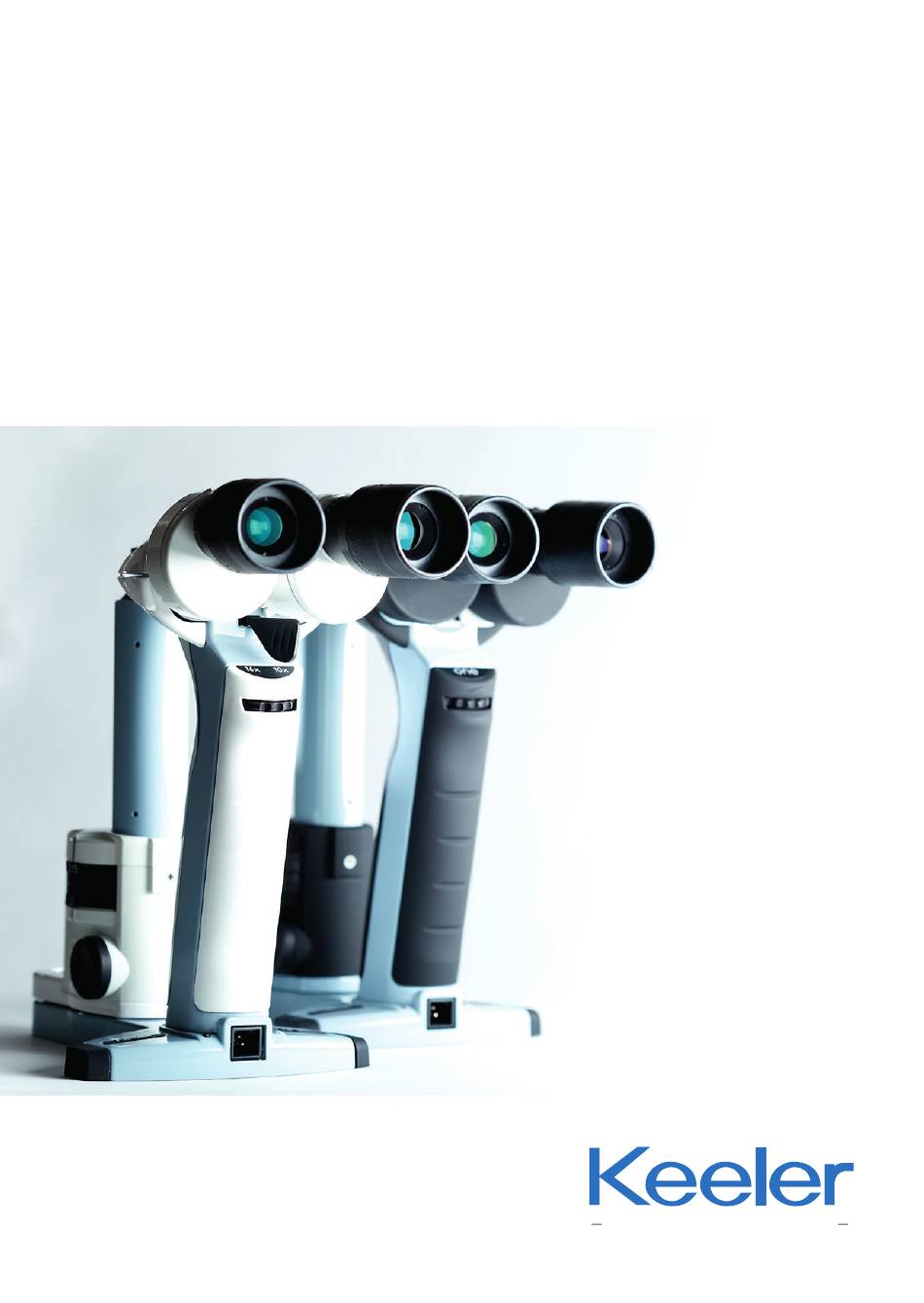

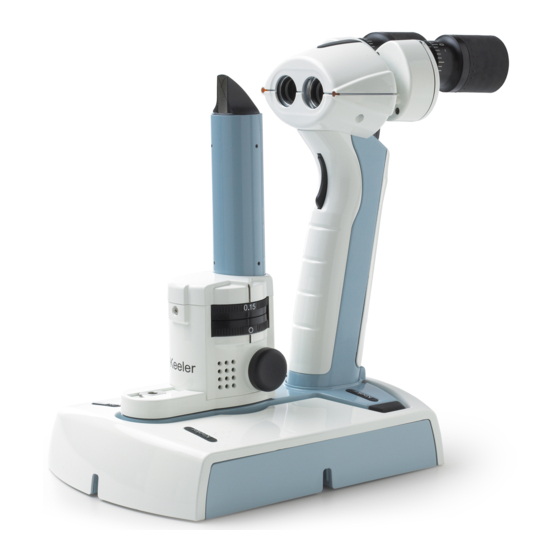

- Page 1 PSL Classic PSL One PORTABLE SLIT LAMP INSTRUCTIONS FOR USE A world without vision loss...
-
Page 3: Table Of Contents
KEELER PORTABLE SLIT LAMP CONTENTS INDICATIONS FOR USE ..................3 SAFETY ......................... 4 PHOTOTOXICITY ..........................4 WARNINGS AND CAUTIONS ......................4 CONTRAINDICATION ........................5 CLEANING AND DISINFECTION INSTRUCTIONS ............ 6 NAMES OF CONTROLS AND COMPONENTS ............6 INSTRUCTIONS FOR USE ..................8 PREPARING THE POWER SUPPLY AND THE BASE UNIT ..............8... - Page 4 Serial number Catalogue number Medical device Translation The Keeler Portable Slit Lamp is designed and built in conformity with Directive 93/42/EEC, Regulation (EU) 2017/745 and ISO 13485 Medical Devices Quality Management Systems. Classifi cation: CE: Class I FDA: Class II The information contained within this manual must not be reproduced in whole or part without the manufacturer’s...
-
Page 5: Indications For Use
PSL Classic provides x16 magnifi cation setting in addition to the fi xed x10 magnifi cation that’s only present on the PSL One variant. -
Page 6: Safety
Please note that the proper and safe functioning of our instruments is only guaranteed if both the instruments and their accessories are exclusively from Keeler Ltd. The use of other accessories may result in increased electromagnetic emissions or reduced electromagnetic immunity of the device and may lead to incorrect operation. -
Page 7: Contraindication
Applied parts exceed 41 degrees Celsius. The maximum temperature and condition of safe contact for the PSU is 44.3 degrees and the slit lamp base is 42.1 degrees. • Use only genuine Keeler approved parts and accessories or device safety and performance may be compromised. •... -
Page 8: Cleaning And Disinfection Instructions
KEELER PORTABLE SLIT LAMP 3. CLEANING AND DISINFECTION INSTRUCTIONS Before any cleaning of the instrument or the base unit, ensure the power lead is disconnected. Only manual non-immersion cleaning as described should be used for this instrument. Do not autoclave or immerse in cleaning fluids. - Page 9 KEELER PORTABLE SLIT LAMP 10. Magnification change lever (PSL Classic only): Push this lever to the right to set the magnification at 10x and to the left to set the magnification at 16x. 11. Alternative power socket: In addition to...
-
Page 10: Instructions For Use
Rotating this wheel anti-clockwise decreases the brightness of the illumination lamp. Portable Slit Lamp base charger unit 15. Power socket for Keeler 12V Power Supply: Connect the power supply cable to this socket and the place the slit lamp body in the charger unit to charge the device. -
Page 11: Preparing The Patient
The patient should be as comfortable as possible and positioned to allow easy access to the eye to be examined. The Keeler Portable Slit Lamp is designed to be ambidextrous, hold the Slit Lamp in your preferred hand simultaneously squeezing the trigger on / off switch. -
Page 12: Problem Solving
KEELER PORTABLE SLIT LAMP 6. PROBLEM SOLVING Problem Solution No illumination, or low illumination Check the unit is fully charged Check the position of the fi lters and slits to ensure they are set correctly Check and if necessary change the LED... -
Page 13: Regularly Inspect The Device For Damage Or Dirt
Slit Lamp has not been regularly serviced. The manufacturer’s warranty and terms and conditions are detailed on the Keeler UK website. The mirror, main illumination lamp and general ‘wear and tear’ are excluded from our standard warranty. -
Page 14: Electromagnetic Emissions
9.1 ELECTROMAGNETIC EMISSIONS Guidance and manufacturer’s declaration – electromagnetic emissions The Keeler Portable Slit Lamp is intended for use in the electromagnetic environment specified below. The customer or user should ensure that it is used in such an environment. Emissions test Compliance Electromagnetic environment –... - Page 15 – guidance Test level Portable and mobile RF communications equipment should be used no closer to any part of the Keeler Portable Slit Lamp, including cables, than the recommended separation distances calculated from the equation applicable to the frequency of the transmitter.
-
Page 16: Recommended Safe Distances
To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the Keeler Portable Slit Lamp is used exceeds the applicable RF compliance level above, the Keeler Portable Slit Lamp should be observed to verify normal operation. -
Page 17: Technical Specifications
Biomicroscope Type Binocular Handheld Biomicroscope Slit Lamp Optics Converging binoculars at 13˚ Magnification PSL One: 10x fixed PSL Classic: 10x and 16x, lever change Objective lens working distance @ 10x 100mm PSL One PSL Classic Objective lens working distance @ 16x... - Page 18 KEELER PORTABLE SLIT LAMP Power Supply Power supply unit Switch mode, (100V-240V input) ± 10% multi plug compliant to EN/ IEC 60601-1 EN/IEC 61000-6-2, EN/IEC 61000-6-3 Power supply output 30VA (12V DC 2.5A) Complies with Electrical Safety (Medical) EN/IEC 60601-1...
-
Page 19: Accessories And Spares
KEELER PORTABLE SLIT LAMP 10. ACCESSORIES AND SPARES Item Part Number Aluminum carrying case 3010-P-7000 11. PACKAGING AND DISPOSAL INFORMATION Disposal of old electrical and electronic equipment This symbol on the product or on its packaging and instructions indicates that this product shall not be treated as household waste. - Page 22 Contact Manufacturer Keeler Limited Clewer Hill Road Windsor Berkshire SL4 4AA UK Freephone 0800 521251 Tel +44 (0) 1753 857177 Fax +44 (0) 1753 827145 USA Sales Office China Office Keeler USA Halma China Group 3222 Phoenixville Pike 名称：沃迈（上海）机电有限公司 Building #50 地址：上海市闵行区金都路1165弄...
