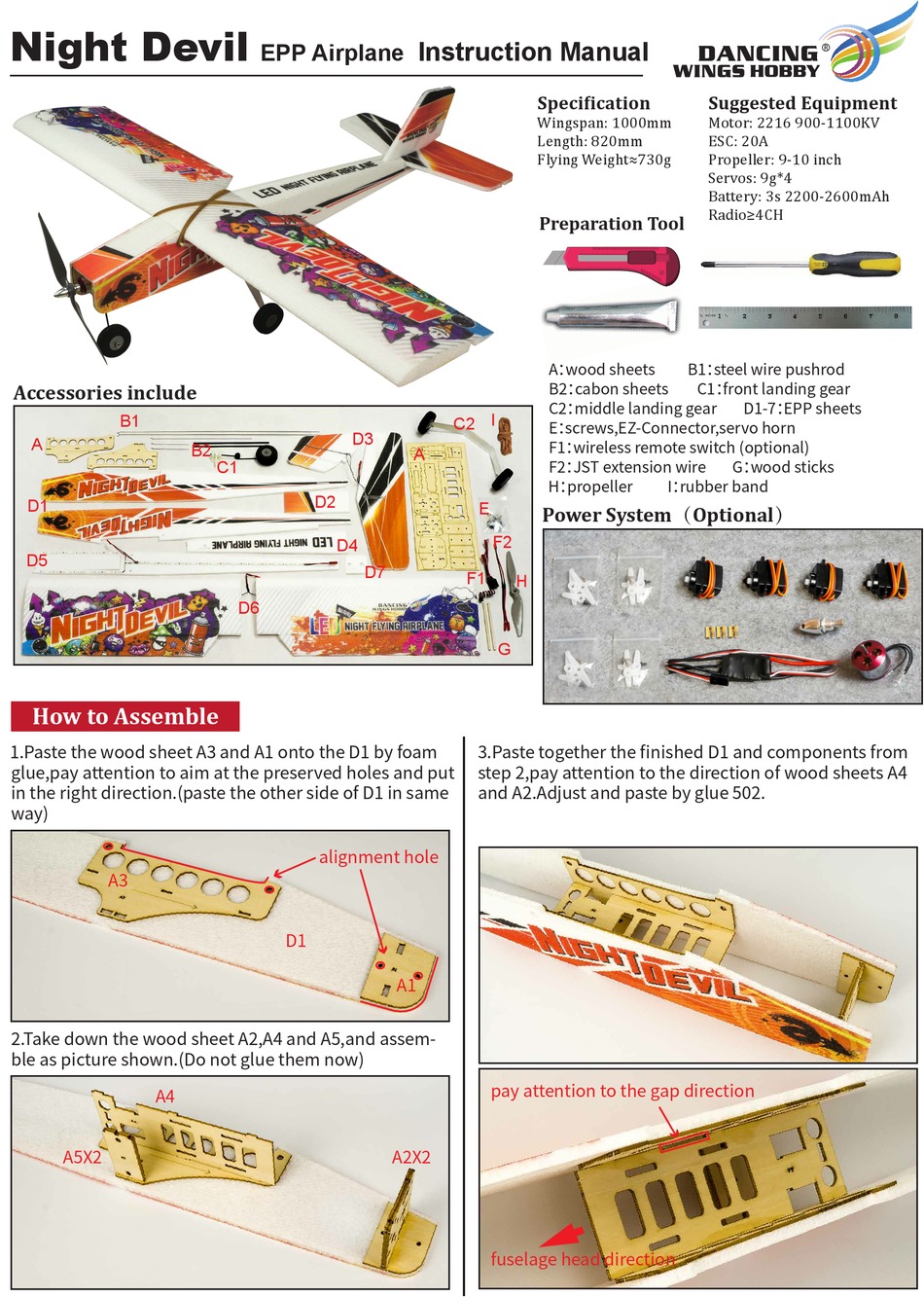

Night Devil
Accessories include
B1
A
D1
D5
How to Assemble
1.Paste the wood sheet A3 and A1 onto the D1 by foam
glue,pay attention to aim at the preserved holes and put
in the right direction.(paste the other side of D1 in same
way)
A3
2.Take down the wood sheet A2,A4 and A5,and assem-
ble as picture shown.(Do not glue them now)
A4
A5X2
EPP Airplane
D3
B2
C1
D2
D4
D7
D6
alignment hole
D1
Instruction Manual
Wingspan: 1000mm
Speci�ication
Length: 820mm
Flying Weight≈730g
Preparation Tool
A： wood sheets
B2： cabon sheets
C2： middle landing gear
E： screws,EZ-Connector,servo horn
C2 I
F1： wireless remote switch (optional)
A
F2： JST extension wire
H： propeller
E
Power System（Optional）
F2
F1
H
G
3.Paste together the finished D1 and components from
step 2,pay attention to the direction of wood sheets A4
and A2.Adjust and paste by glue 502.
A1
pay attention to the gap direction
A2X2
fuselage head direction
Motor: 2216 900-1100KV
Suggested Equipment
ESC: 20A
Propeller: 9-10 inch
Servos: 9g*4
Battery: 3s 2200-2600mAh
Radio≥4CH
B1： steel wire pushrod
C1： front landing gear
D1-7： EPP sheets
G： wood sticks
I： rubber band
Advertisement
Related Manuals for Dancing Wings Hobby Night Devil
Summary of Contents for Dancing Wings Hobby Night Devil
- Page 1 Night Devil Instruction Manual EPP Airplane Wingspan: 1000mm Motor: 2216 900-1100KV Speci�ication Suggested Equipment Length: 820mm ESC: 20A Flying Weight≈730g Propeller: 9-10 inch Servos: 9g*4 Battery: 3s 2200-2600mAh Radio≥4CH Preparation Tool A： wood sheets B1： steel wire pushrod B2： cabon sheets C1：...
- Page 2 Night Devil Instruction Manual EPP Airplane upward pay attention to the gap direction 4.Assemble the motor and front landing gear onto the A2 (as picture shown below),fix the motor with screws,- fix the landing gear with screws and nuts,connect the landing gear arm with steel wire pushrod,which insert 6.Paste the D5 at the bottom of the fuselage by foam...
- Page 3 Night Devil Instruction Manual EPP Airplane 10.Paste the vertical and horizontal tail D3 (as picture 15.Install the servo inside the cabin,install the servo arm shown below) and EZ-connector,and connect the EZ-connector with push rod. 11.Connect the both JST plug together respectively from tail wing and fuselage tail.
-
Page 4: Instruction Manual
Night Devil Instruction Manual EPP Airplane 22.Fasten the wing with rubber band onto the fuselage. ≈66mm 20.Install and fix the propeller onto the motor. Adjust the C.G, C.G is 66mm from the leading edge.Then start your flight. 21.Connection diagram for remote switch,electronics and LED plugs.
