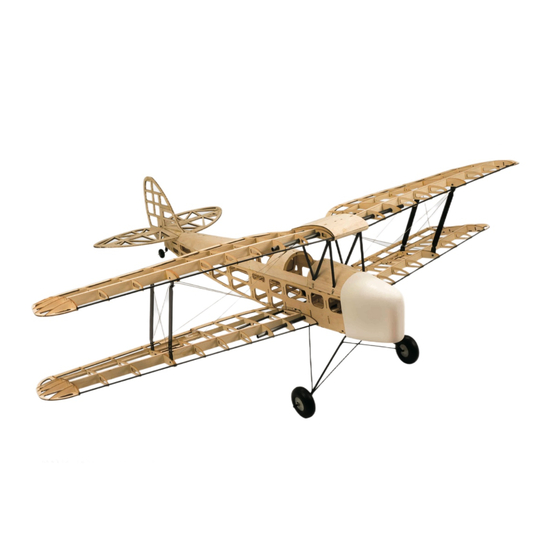

Tiger Moth
SPECIFICATION
Wingspan:1400mm
Length:1100mm
Flying Weight:2200-2800g
SUGGESTED EQUIPMENT
Suggested Motor:EP Φ42mm Thrust≥2.5Kg
GP 40 class or 6-10cc
Suggested ESC:60-80A
Suggested Servo≈17g*4
Suggested Battry:4S 4000-6000mAh
ACCESSORIES
V2.0
TOOLS NEEDED
Hobby Knife
Heat Source（Soldering iron&Lighter）
Foam glue
CA glue
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dancing Wings Hobby Tiger Moth V2.0
Summary of Contents for Dancing Wings Hobby Tiger Moth V2.0

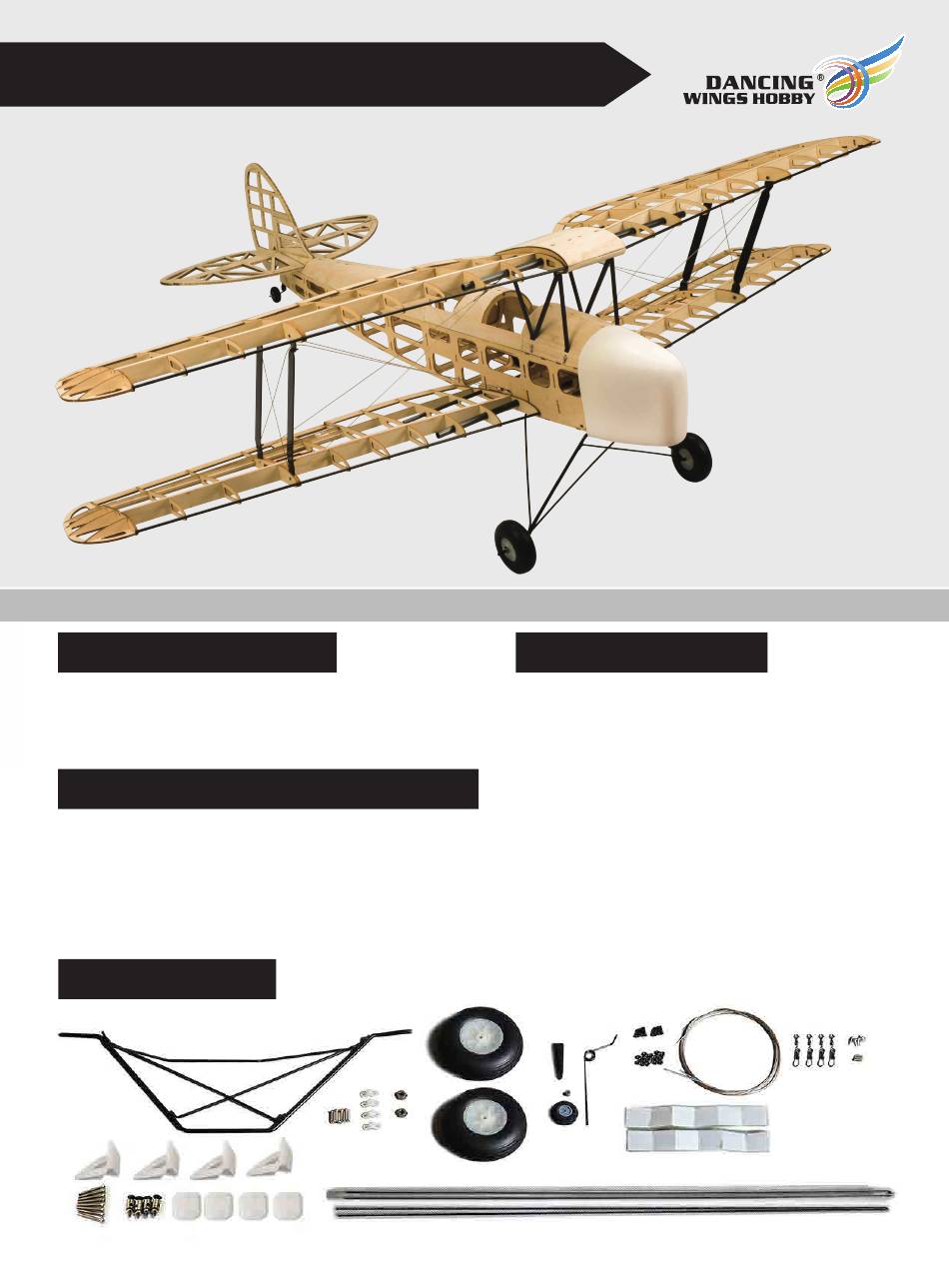

- Page 1 Tiger Moth V2.0 Installation Instructions SPECIFICATION TOOLS NEEDED Wingspan:1400mm Hobby Knife Heat Source（Soldering iron&Lighter） Length:1100mm Foam glue Flying Weight:2200-2800g CA glue SUGGESTED EQUIPMENT Suggested Motor:EP Φ42mm Thrust≥2.5Kg GP 40 class or 6-10cc Suggested ESC:60-80A Suggested Servo≈17g*4 Suggested Battry:4S 4000-6000mAh ACCESSORIES...
-
Page 2: Fuselage Assembly
Tiger Moth Installation Instructions 1.Fuselage assembly A1EP/GP P4X2 Servo installation position... - Page 3 Tiger Moth Installation Instructions Slightly moisturize the board for easy winding while assemble the balsa board on the fuselage. Push rod tube Insert the connection rod through A7 and A9. 2.Wing assembly (same method for both left and right ) Pls assemble the wing as per the 1:1 plan,and pay attention to keep the wing horizontal,pls see the picture as shown below.
- Page 4 Tiger Moth Installation Instructions Assemble the servo position 2.4 Tail on the wing. Servo horn installation position 3.Parts assembly Servo horn installation position 6mm carbon pipe 4mm carbon pipe 10mm carbon pipe Glue the upper part of the bracket T1.
- Page 5 Tiger Moth Installation Instructions Dismountable Pls assemble the T2 and T3 as per the 1:1 plan. screws screws Dismountable screws 6mm carbon pipe 10mm carbon pipe Assemble the Landing Gear Wheel pants Wheel pants Installation Method of Accessories Bag removable fastener Clip screws Clip...
- Page 6 Tiger Moth Installation Instructions 4.Setting the center of gravity flight Display the instrument panel. 8. Always check C og G before attempting your very first flight. 9. Always seek help from those experience flyers if you are on your first solo flight.
Need help?
Do you have a question about the Tiger Moth V2.0 and is the answer not in the manual?
Questions and answers
Hi There, do you have any material on how to connect the ailerons and how to install the servo on it
@Alexandru Rusu for the mini tiger moth S19 model
To connect the ailerons and install the servo on the Dancing Wings Hobby Tiger Moth V2.0:
1. Assemble the wing according to the 1:1 plan, ensuring it stays horizontal.
2. Use a 4mm carbon pipe for both the upper and lower wings.
3. Locate the aileron servo horn installation position marked in section 2.3.
4. Install the servo horn in the designated position and connect it to the ailerons using the required linkage.
Follow the diagram in the manual to ensure correct alignment and positioning.
This answer is automatically generated
