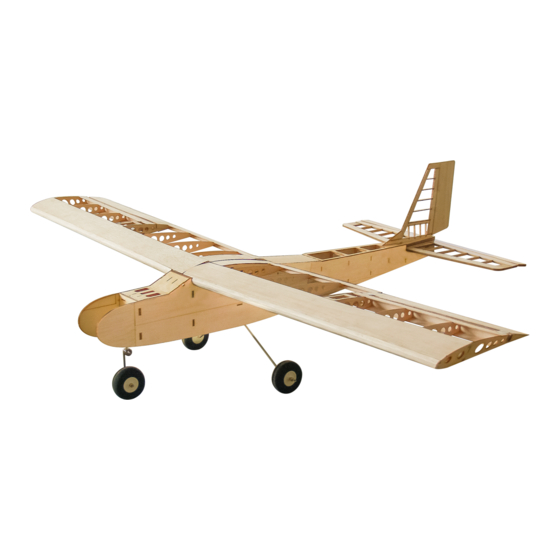

T40 Trainer Assembling Manual

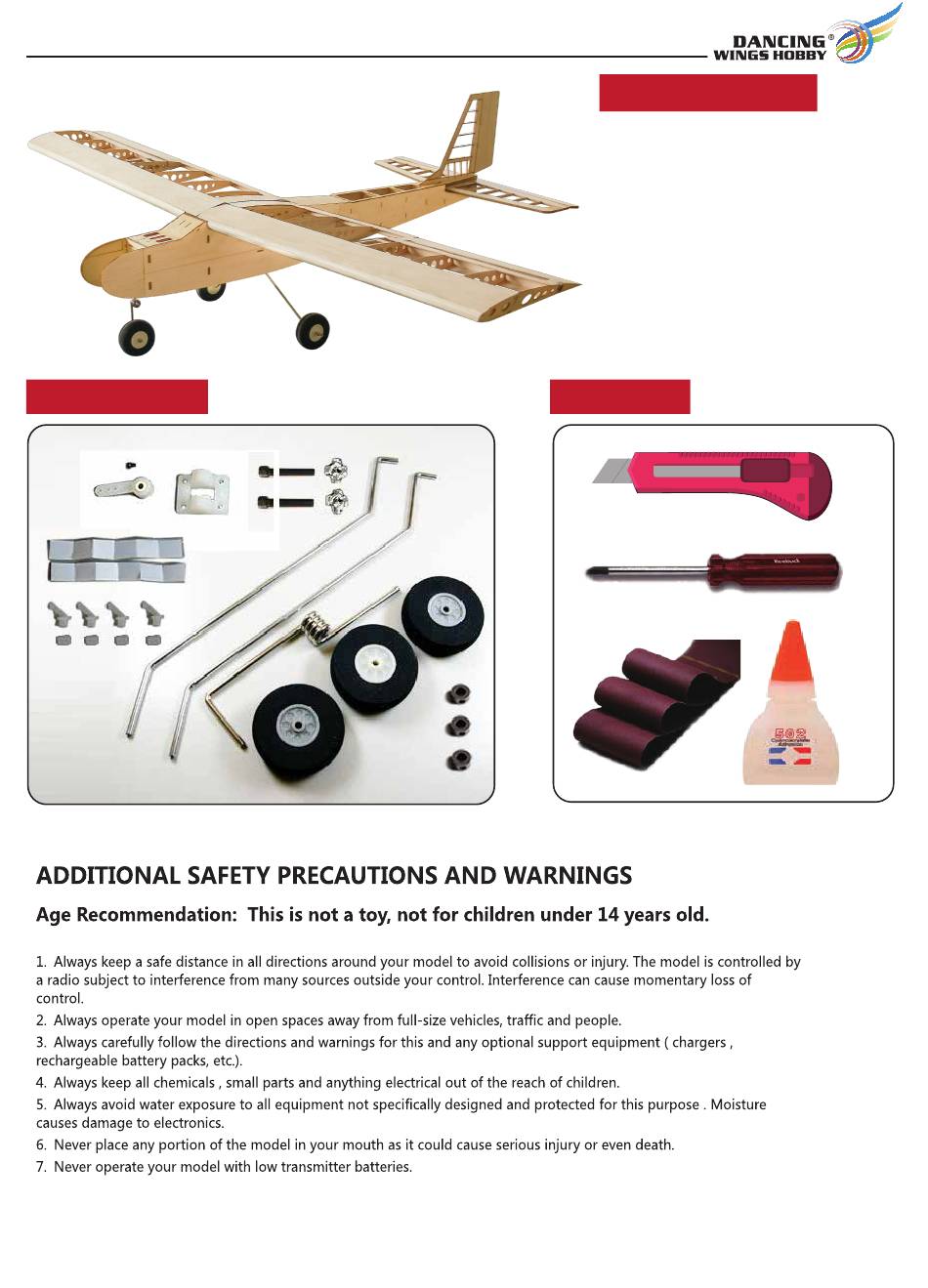

Accessories
8. Always check C og G before attempting your very first flight.
9. Always seek help from those experience flyers if you are on your first solo flight.
Specification
Wingspan: 1550mm
Fuselage: 1150mm
GP Flying Weight: 2.3kg
EP Flying Weight: 1.9kg
Servo recommendation: 17g-37g x 4-5pcs
Prop: 12-13 inch
Gas engine class: 6-10 cc
Nitro engine: 40-50 class
Electric powered: 2820-3520 600-1000kv
ESC: 60A
Battery: 4S 2800-4000mAh
Tools
1
Advertisement
Table of Contents
Related Manuals for Dancing Wings Hobby T40
Summary of Contents for Dancing Wings Hobby T40
- Page 1 T40 Trainer Assembling Manual Specification Wingspan: 1550mm Fuselage: 1150mm GP Flying Weight: 2.3kg EP Flying Weight: 1.9kg Servo recommendation: 17g-37g x 4-5pcs Prop: 12-13 inch Gas engine class: 6-10 cc Nitro engine: 40-50 class Electric powered: 2820-3520 600-1000kv ESC: 60A...
- Page 2 T40 Trainer Assembling Manual Assemble the Fuselage Here is breaking design, please glue them together before assembly. Install nuts on the back of C4. H6 filling Here is breaking design, please glue them together before assembly. ２...
- Page 3 T40 Trainer Assembling Manual Assemble the Fuselage The above photo needs magnets. Assemble the Wing Here is breaking design, please glue them together Here is breaking design, before assembly. please glue them together before assembly. Stick X board on the breaking position for reinforcement.
- Page 4 T40 Trainer Assembling Manual Insert one hard pipe through the each Cut 6*6 paulownia wood hollow-out holes marked in red above strip in two parts. One is 47cm 33cm photo,in order to maintain level of the 33cm, another one is 47cm.
- Page 5 T40 Trainer Assembling Manual Cut into 4pcs small cubes from H6 and fill in as above photo shown. Ensure the polishing radian according to the C14 shape. Cut off, glue and Here is breaking design, polish into triangle, please glue them together in order to connect before assembly.
- Page 6 T40 Trainer Assembling Manual Assemble the motor mount Assemble the landing gear Position of center of gravity EP Version GP Version ６...
- Page 7 T40 Trainer Assembling Manual 1.5mm Plywood 2mm Plywood 3mm Plywood C16 C17 1.5mm Balsawood ×4 ×4 Sheet Part Numbers...
- Page 8 T40 Trainer Assembling Manual ×2 2mm Balsawood 2mm Paulownia ×2 ×2 3mm Balsawood G4-1 5mm Balsawood 6mm Balsawood 6mm Paulownia Sheet Part Numbers...
