Dancing Wings Hobby Fokker Dr.I Instruction Manual

Fokker Dr.I
Instruction Manual
A
N O P1
P2
E F
K R1
I
B
J
L
M
G
C
H
D1 T
S

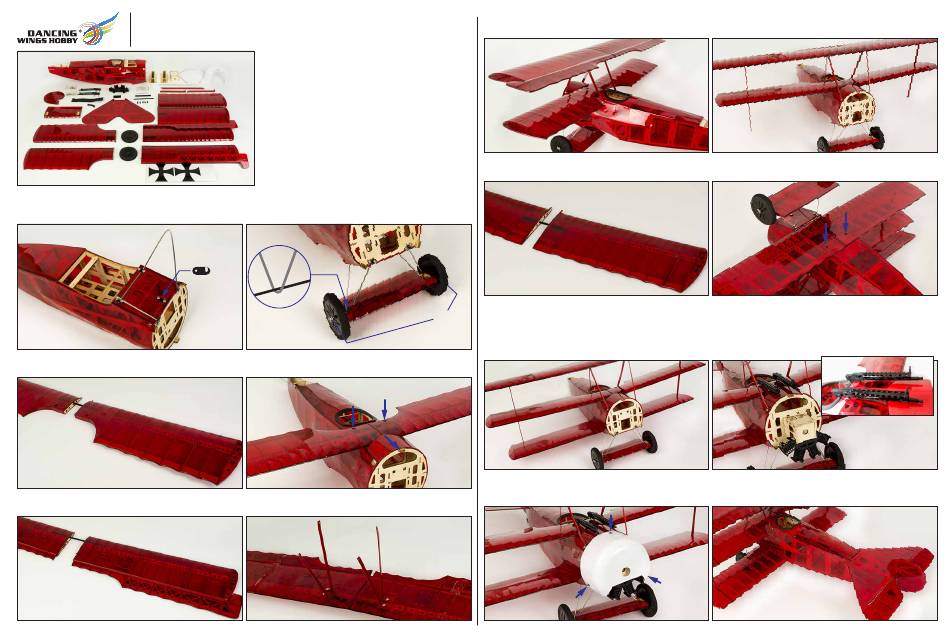

1.Install landing gear bracket P1, embed the bracket
into the prefrmed groove,lock it with self-tapping screw
and M spacer.
P1
A
Here M spacer
is for cabin
cover,you can
open and close
it freely.
3.Plug the middle wings into each other with carbon
rod,glue the joint.
5.Plug the upper wings into each other with carbon
rod, glue the joint.
Specification Suggested Equipment
Motor： 2212 800-1000KV
Wingspan：770mm
ESC：20A
Length：630mm
Q
Net weight：≈650g Servo：2.5g *2 & 5g *2
Propeller：7-8 inch
R2
Battery：2-3S 1300-1800mAh
Radio≥3CH
D2
A:Fuselage B:Vertical tail C:Landing gear aileron D1-3:Wing
E:Screw set, quick connector, wheel lock
D3
F:Emulational machine gun G:Sled H:Horizontal tail
I:Emulational engine J:Rudder angle K:Paper hinge
L:Carbon rod M:Spacer N:Wheel bracket O:Motor board
P1-2:Landing gear steel wire Q:Cowling R1-2:Wing bracket
S:Sticker T:Wheel
2.Install landing gear aileron and wheels.
P1
C
P2 T
P2
4.Plug the middle wing's bolt into the fuselage, then
lock the wing with self-tapping screw.
Fasten it with screw
D1
6.Install wing bracket in the back of the upper wing,
lock it with self-tapping screw.
Long
R2
Short
D3
7.Use self-tapping screw to lock the other end of
bracket on the fuselage.
9.Plug lower wings into each other with carbon rod,
glue the joint.
T
Lock the wheels
11.Support rods connect the lower wing, adjust the
space among the three wings and fasten them.
13.Install the cowling, fasten the edge with 3pcs
self-tapping screws.
8.Install wing's support rods as shown.
10.Use self-tapping screw to lock the lower wing on
the fuselage.
Fasten it with screw
D2
12.Install motor board, and install the emulational
engine on the motor board.Install emulational
machine gun on the middle wing. (Don't stick the
motor board on the fuselage at this moment, please
stick the motor board on the fuselage after finishing
the motor installation.)
O
I
14.Install horizontal tail, connect with fuselage groove,and
fix it with glue.Connect the vertical tail to the tail of fuselage
with paper hinge, and make the vertical tail swing freely.
Q
R1
B
H
