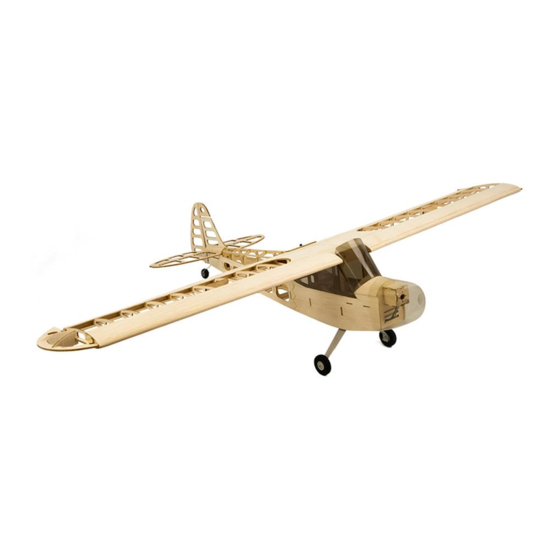

BALSA WOOD AIRPLANE
Instruction Manual
Wingspan: 1180mm
Speci�ication
Length: 700mm
Flying Weight≈600g
Motor: 2212 1100KV
Suggested Equipment
Propeller: 9-10 inch
ESC: 20A
Servos: 9g*4
Battery: 3s 2200-2600mAh
Radio: ≥4CH
Accessories include：
2mm Plywood
B1
B2
B3
B10
B20
B22
R
L
B23R
B23L
B5
O
B4
B10
B20
B24
D
B23D
V 3.0
B1
B7
B6
B11
B13
B12
B14
B15
B25
1
Tool needed：
B8
B9
B9
B15
B17
B16
B26
B27 B28
B18
B19
B29
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dancing Wings Hobby J-3
Summary of Contents for Dancing Wings Hobby J-3

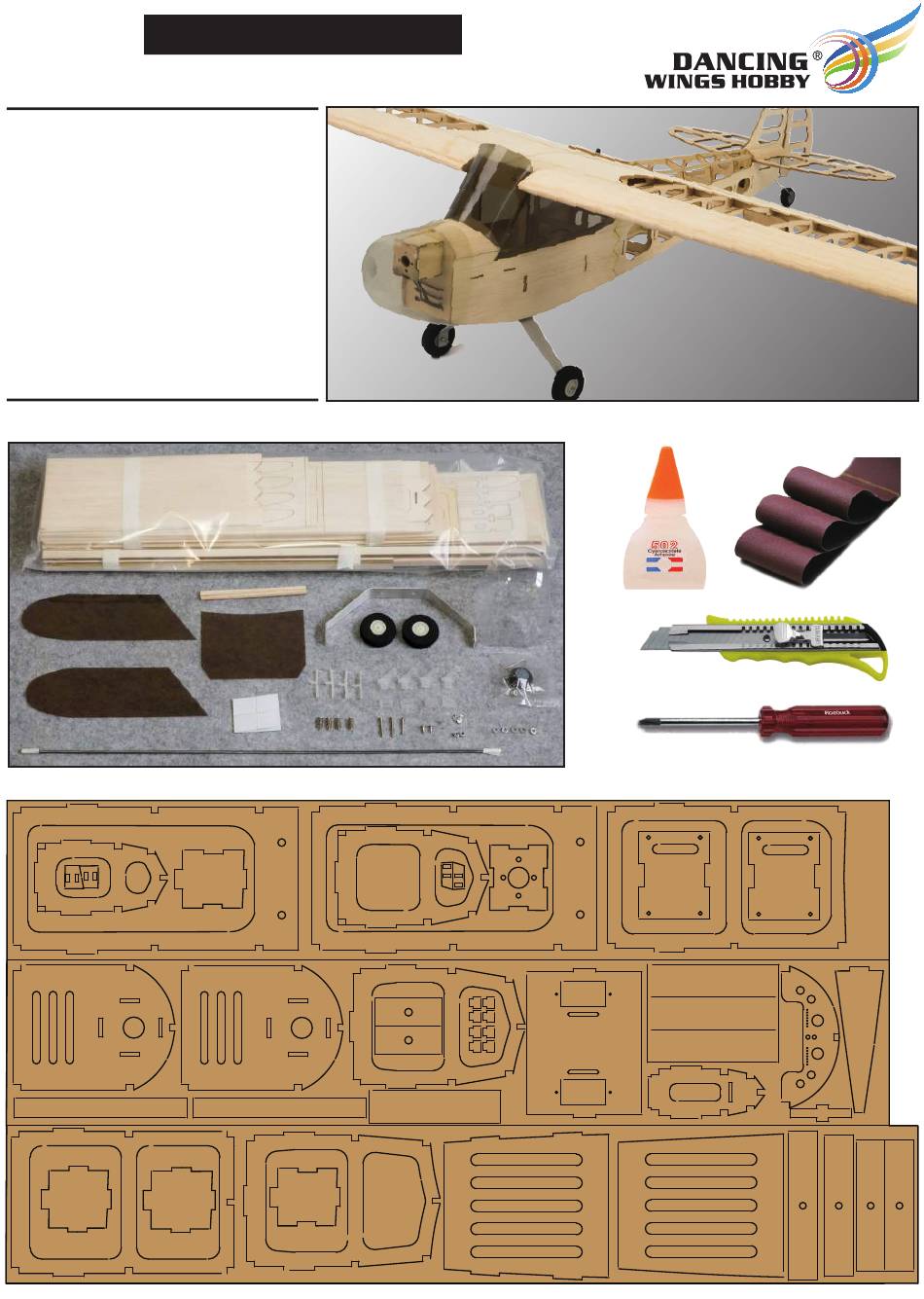

- Page 1 BALSA WOOD AIRPLANE Instruction Manual V 3.0 Wingspan: 1180mm Speci�ication Length: 700mm Flying Weight≈600g Motor: 2212 1100KV Suggested Equipment Propeller: 9-10 inch ESC: 20A Servos: 9g*4 Battery: 3s 2200-2600mAh Radio: ≥4CH Accessories include： Tool needed： 2mm Plywood B27 B28 B23R B23L B23D...
- Page 2 1.5mm Balswood 2mm Balswood 3mm Balswood 5mm Balswood...
- Page 3 1.Assemble the Fuselage 1.1Glue together the side plate D1,D2;Assemble the fuselage 1.5Assemble and glue the motor mounting base (Pls do frame in order as the picture shown below.(Do not glue not glue the B7 currently),then glue the side cover D6 and them now) the head cover D7.
- Page 4 2.8Assemble the wing tips and glue onto the wing. 2.3Glue the upper wing cover, and make sure the wing is straight. Servo horn position 2.8Assemble another wing in same way, and connect 2.4Add the reinforcement pieces D4 at the leading edge together the two wings by B20,finally fix with glue at of the wing as picture shown.
- Page 5 4.3Assemble the servo on the wing, assemble the servo horn on the aileron, and connect the pull rods as picture shown. B15x2 4.Assemble the components and power 4.1Assemble the servos inside the fuselage, connect the pull rod with servo arm, and insert the other end of the pull rod through the preserved hole of the tail end.
- Page 6 4.6Install the battery hatch, put the battery inside and cover with B26. Battery hatc C.G 57mm Assemble the cover and cowling...
