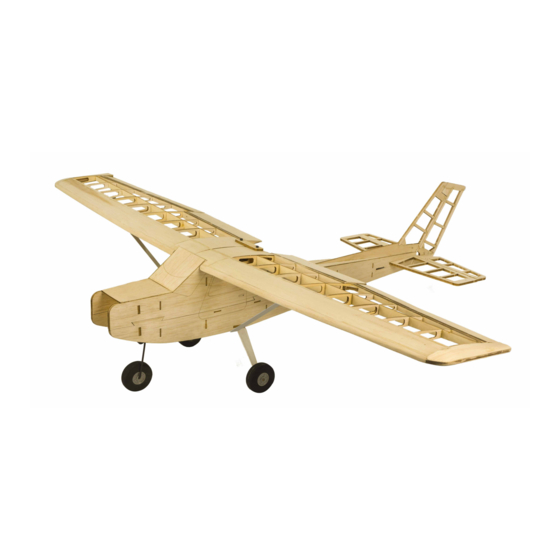

Dancing Wings Hobby T20 Sport Scale Cessna 152 Instruction Manual

T20 Sport Scale Cessna 152
工具 Tools Needed
机身组装 Fuselage Installation
1
S1
S3
2
S1-1
Q5
F11-2
S1-2
F11x2
底部安装爪牙螺母
F4
Install nut at the bottom.
4
F1x2
3
F9
6
注意：粘贴侧板时，有雕刻门
窗的一面朝外。
Note:Put the side with laser-cut
door and window outward when
you stick the sideboard.
Instruction Manual
参数
翼展：1200mm ≈
机长：870mm
起飞重量： 1000-1200kg
推荐配置
推荐马达：2216-2814 900-1100KV
推荐电调：20A-40A
推荐电池：3S 2200-2800mAh
推荐舵机：9g*4pcs / 6pcs ≥4CH
推荐桨叶：9-11寸
通道
Wingspan: 1200mm
Speci�ication
Length: 870mm
Flying Weight:≈1000-1200g
Electric power: 2216-2814 900-1100KV
Suggested Equipment
ESC: 20A-40A
Battery: 3S 2200-2800mAh
Servo：9g*4pcs / 6pcs
Propeller: 9-11inch
Radio≥4CH
找出S1-S3轻木板，把他们如图粘贴在一起，待粘合
牢固后，再进行下一步骤。
Find out S1-S3 balsawood board, stick them
together as shown.Proceed next step after glueing
S2
them firmly.
3 F3-1
F2
F3
安装爪牙螺母
Install nut screw
5
F5 F10x2
F6
F7
F10-1
7
轻木条 Balsawood strip
L14
L15
Q3
轻木条
Balsawood strip
8
轻木条
Balsawood strip
轻木条
Balsawood strip
12
S7
S6
机翼组装 Wing Installation
机翼及尾翼请对比1:1图纸上的编号拼装，将图纸平铺到水平
14
工作台面上进行拼装，拼装时保持机翼平直。
F8
Build the wing and tail wing according to 1:1
drawing plan.
Put the drawing plan on horizontal workbench for
building and keep the wing straightness.
注意此处爪
牙螺母朝向
Here please note
the nut direction.
背面安装爪牙
螺母
Install nut on
the back.
此处所用轻木
条请按实际长
度自行截取。
Here please cut
the balsawood 细节 Detail 2
strips according
to the actual
length by
L7
yourself.
L11
9
Q4
安装前转向轮固定组件，用内六角螺丝固定
10
此处所用轻木条请按
实际长度自行截取。
Here please cut
the balsawood
strips according to
the actual length
by yourself.
安装连杆导管到预留孔内,从舵机安装位
置到尾部。
Install link rod duct on the
reserved hole from servo
mounting location to tail.
S8
13
S5
S4-2
S4-2
S4
垂直尾翼
Vertical Tail
拼装时注意以下细节图片
Pay attention to below details
pictures during building.
水平尾翼
Horizontal Tail
垫入第二片L7时，需稍加
打磨成斜面
Please polish L7 to bevel
when you assemble the
second L7.
L7
Install front-wheel steering fixed parts,
fix with hexagon screw.
11
S4-1
磁铁
S10
Magnet
S9
磁铁
Magnet
塑料合页
Plastic hinge
S4-1
S11
S11
细节 Detail 1
圆木杆
Round wooden pole
L6
