C
ONFIGURATION
2.1. Powering HPT 135
To Power the HPT135, you can use the Battery kit 2 (p/n 99-587100-10).
2.1.1. Power supply requirements
A single external power supply is necessary to operate HPT135. The external power supply needs
to be Listed for US and Certified for EU countries, it needs also to be a Limited Power Source and
rated for Outdoor Use and have an output rated for +12V, 10A. This may not be the same range as
other JAVAD GNSS products with which you are familiar.
C
: To avoid the introduction of hazards when operating and installing, before connecting of the
AUTION
equipment to the supply, make sure that the supply meets local and national safety ordi-
nances and matches the equipment's voltage and current requirements.
C
: Never attempt any maintenance or cleaning of the supply while plugged in. Always remove
AUTION
supply from AC power before attempting service or cleaning.
www.javad.com

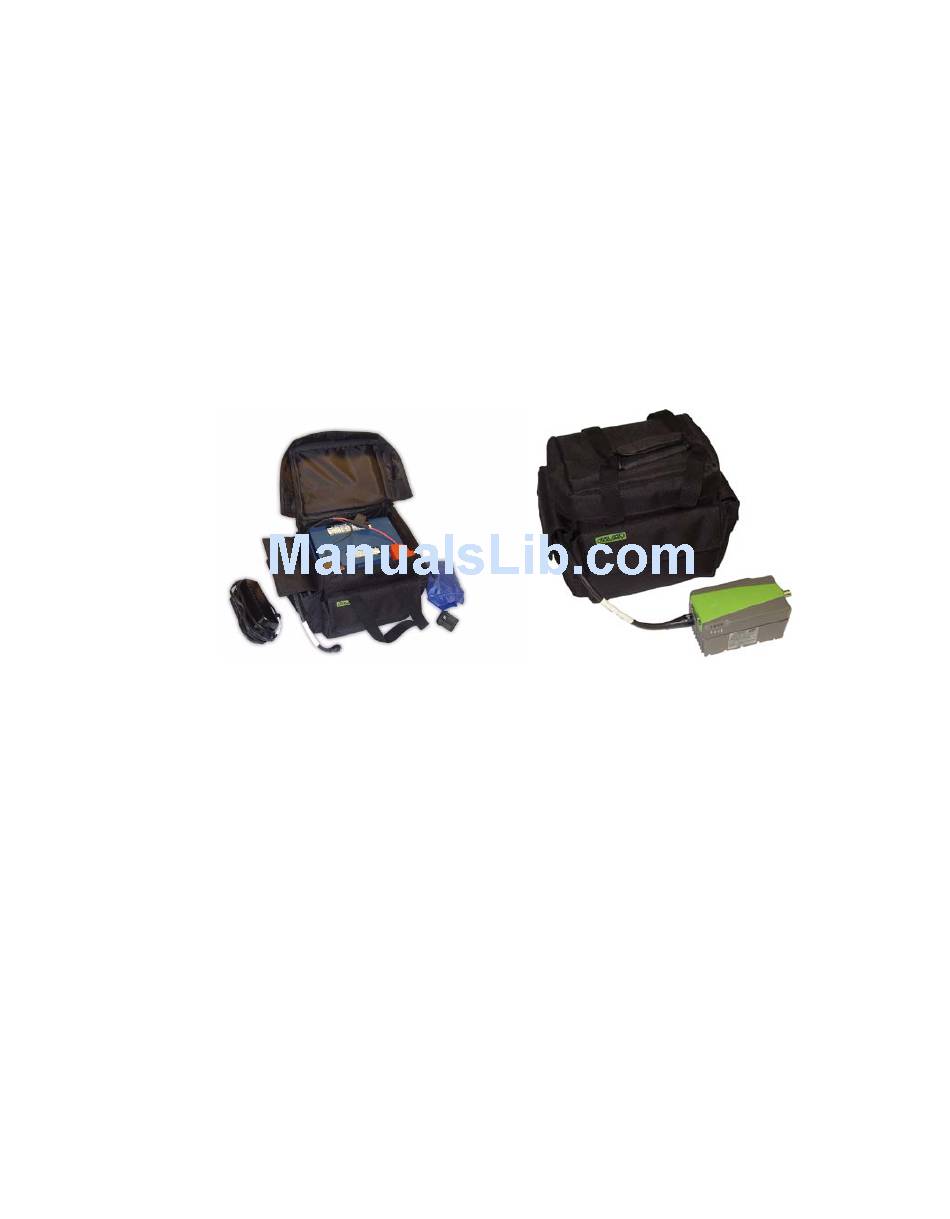

Figure 2-1. Powering HPT435
Chapter 2
15
