2.5. Configuring HPT135

1. Connect the computer and HPT 135, as described in "Connecting HPT135 and Computer"
on page 18. Turn on the HPT 135.
2. Start ModemVU.
3. Select the HPT135 (Figure 2-3), and click OK:
4. Select the COM port the HPT135 modem is connected to (Figure 2-4). Click Connect.
5. On the Radio Link tab, set the following parameters (Table 2-1) and click Apply (Figure 2-
5 on page 21).
www.javad.com

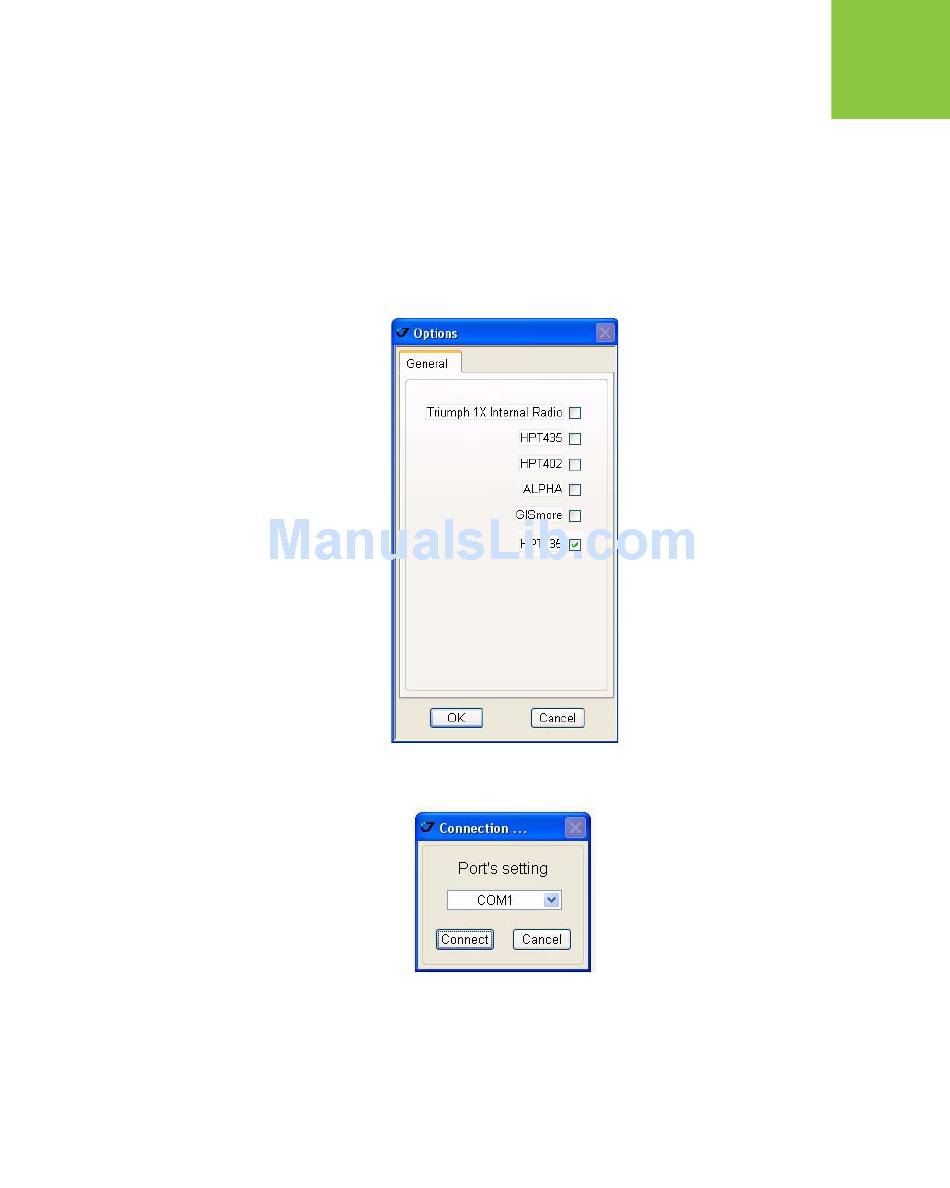

Figure 2-3. Options window
Figure 2-4. Connect to ModemVU
Configuration
Configuring HPT135
Power supply requirements
19
